• Model NO.：KS-30,32
• Voltage：220V,50Hz 380V,50Hz
• Weight：2000-5000kg
• Warranty：1 Year
• Materials：Stainless Steel
• Transport Package：Wooden Case
• Specification：26000*25000*3000mm
• Trademark：Keysong
• Origin：Shandong China
• HS Code：8438800000
• Production Capacity：50et,Month

Basic Info.

Model NO. KS-30/32 Voltage 220V/50Hz 380V/50Hz Weight 2000-5000kg Warranty 1 Year Materials Stainless Steel Transport Package Wooden Case Specification 26000*25000*3000mm Trademark Keysong Origin Shandong China HS Code 8438800000 Production Capacity 50et/Month

Product Description

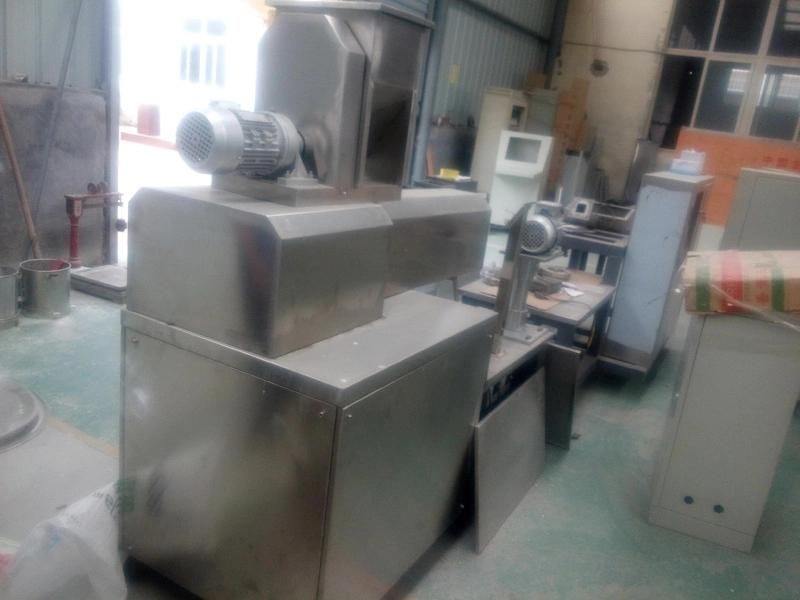

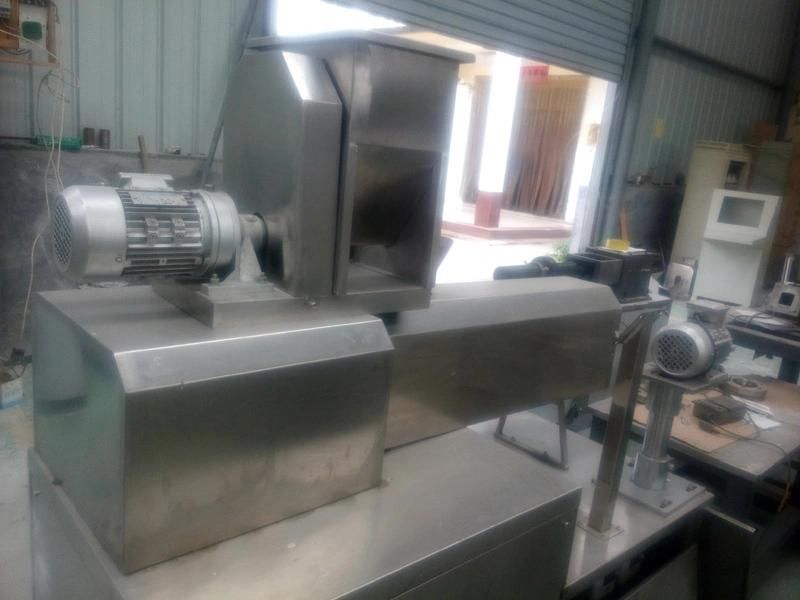

Small capacity best quality low price lab scale extruder
The brief description of New technical lab twin screw extruder:
1.The examination double-screw extruder is an omnipotence type extruder specially for
the college, scThe examination double-screw extruder is an omnipotence type extruder specially for the college, scientific research organization and large-medium enterprises taking on all kinds of extrusion, slaking and denaturation research. It can carry on all kinds of examinations for the following materials, such as corn, potato starch, protein, chemical material plastic and rubber. Meanwhile, it has the following features of powerful functions, easy operation, simple adjustable parameter and precise data. It is very easy to maintain and repair.

Name:	Parameters	Name:	parameters
Engine power	4-5.5KW	Feeding speed control	Inverter speed-control
Engine speed-control	Inverter speed-control	Heating way	Electric heating band
Screw diameter	∮30mm	Cooling way	Water cooling
Screw central distance	26mm	Temperature scope	20ºC-300ºC
Screw Speed range	0-500rpm	Temperature precision	±1.0ºC
Screw mode	Building block-combined type	Temperature measuring	4 points
First series L/D	11.6         12.7       23	Output	5-10KG/H
Material of screw	38CrMoAl Nitriding	Material of cover	Mirror finishing S.S.304
Pressure scope	0-30MPa	Control system	PLC, Touch screen
Pressure precision	0.1MPa	Motor Brand	Siemens
Cutting speed control	Inverter speed-control	Inverter Brand	Delta

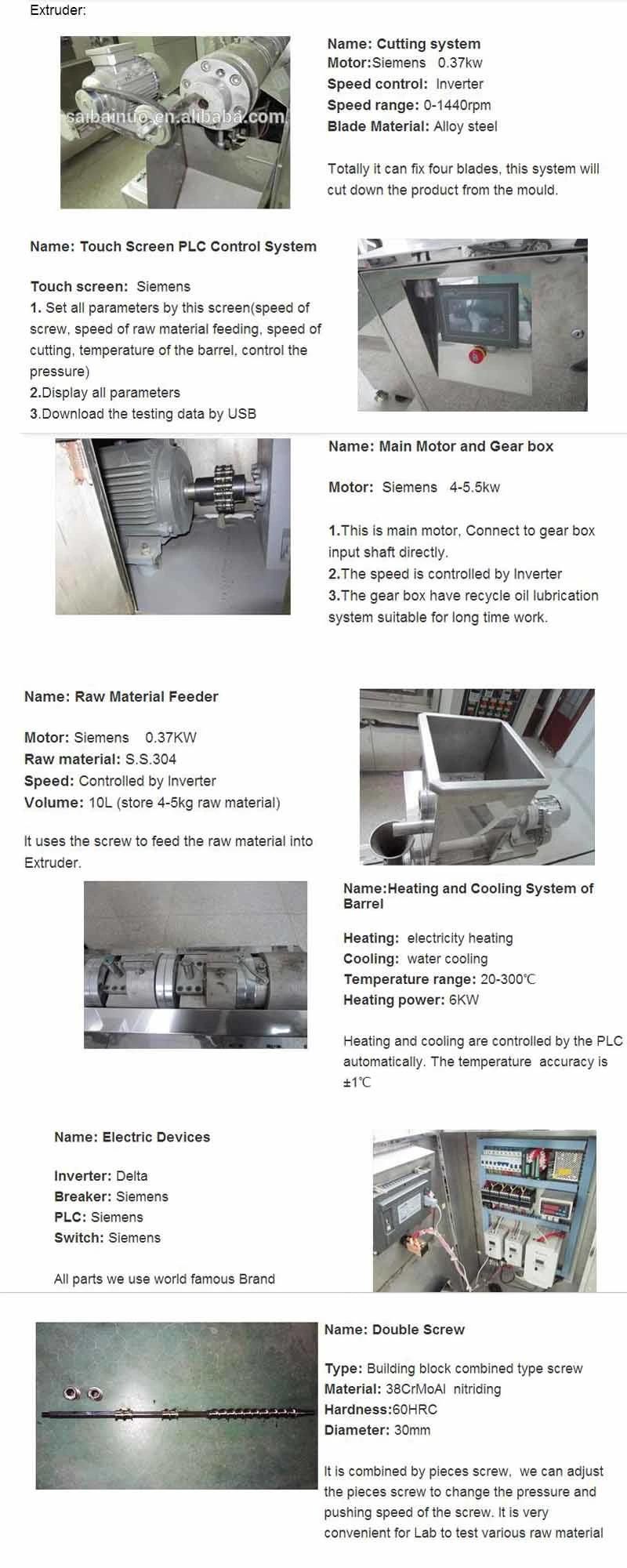

Feature of lab twin screw extruder
1.Monopoly design, the first mini-type multifunction twin-screw inflating machine in China.
2.Widely used, according to different material and product character, use many screws/machine barrels of different length combination, fit for various material experiments.
3. Special distributor case and bearing, to improve the extruder performance.
4.  Multipoint temperatuer control and pressure measure point.
5.Advanced touching screen, HML and help system, display a lot of real time parameters and record working status of each equipment and print the numbers out.

Main Feature:
1).High strength screw, the screw material crmoal, 38 senior nitride is wear-resisting, high temperature resistant steel;
2). Segmented barrel, effectively guarantee the experimental materials from entering extrusion machine temperature rises gradually, nutrient retention rate is high;
3). Intelligent temperature control, adjustment range, high precision, automation, PLC in one machine, LED hd display clearly shows that the experimental data, the data read intuitive and convenient;
4). Mold opening pressure measurement display directly on the screen, measurement data with high precision;
5). The screw rotation speed adjustment range, use frequency control of motor speed, convenient accurate;
Food Samples:
Laboratory Extruder adopt corn, rice, wheat, oat, barley etc as ingredients to make puffed snack. Through friction of screw and barrel, the grains are cooked in the extruder. Forming is at the die face cutter. The product shape is determined by a combination of the die aperture, including ball, tube, stick,
ring, fruit loop, star, wheel and flower etc.


Our Services:
EACH CLIENT CAN ENJOY THE FOLLOWING 7 SERVICES
1. Free consultation service before, during, and after sales;
2. Free project planning and design services;
3. Free debugging of equipment until everything is functional;
4. Free management of equipments' long distance shipping;
5. Free training of equipment maintenance and operating personally;
6. Free new production techniques and formulas;
7. Provide 1 year complete warrantee and lifetime maintenance service
Packaging & Shipping:
1).Packaging: daub coal oil on the surface to protect the machine from moisture, Then cover with plastic film.Finally pack them with wooden case.
2).If you want to know the transportation cost: by air-please tell me your airport name; by express-please tell me your detailed address(including zip code,house number,street,city,country); by ship-pls tell me your delivery port.

FAQ:
1. How about the documents after shipment?
After shipment, we'll send all original documents to you by DHL/TNT, including Packing List,Commercial Invoice, B/L, and other certificates as required by clients.
2. How long is the delivery time?
For standard machines, it would be20-30 days; For non-standard machines and customized machines according to client's specific requirements, it would be 30-45 days.
3. Do You Arrange Shipment For The Machines?
Yes, dear esteemed customers, for FOB or CIF price, we will arrange shipment for you. For EXW price, clients need to arrange shipment by themselves or their agents.
4. How is the packing?
Water-proof plastic film package with foam protection in each corner Solid Seaworthy Wood Box Package with Steel Belt Save space as much as possible for container loading.
