Machinery FOR Food Beverage Cereal

Mixed and Seasoning Machine Fried Potato Chips Seasoning Machine

Shandong Nolen Machinery Co., Ltd.
  • Certification:CE, ISO9001
  • Power Source:Electric
  • Process:Thermal Processing
  • Automatic Grade:Automatic
  • Application:Ice Cream, Candy, Chocolate, Popcorn, Chips, Biscuit, Donut
  • Customized:Customized

Base Info

  • Model NO.:KS
  • Condition:New
  • Materials:304 Stainless Steel
  • Applicationd:Chips
  • Weight:2000kg
  • Warranty:1 Year
  • Name:Potato Chips Machine
  • Working:Automatic
  • Inverter:Delta Inverter
  • Size:18000*2000*4000mm
  • Electric Parts:Chint
  • Transport Package:Wooden Case
  • Specification:40000*5000*3000mm
  • Trademark:KS
  • Origin:Shandong China
  • HS Code:8438800000
  • Production Capacity:50sets,Month

Description

Basic Info.

Model NO. KS Condition New Materials 304 Stainless Steel Applicationd Chips Weight 2000kg Warranty 1 Year Name Potato Chips Machine Working Automatic Inverter Delta Inverter Size 18000*2000*4000mm Electric Parts Chint Transport Package Wooden Case Specification 40000*5000*3000mm Trademark KS Origin Shandong China HS Code 8438800000 Production Capacity 50sets/Month

Product Description

mixed and seasoning machine  fried potato chips seasoning machineMixed and Seasoning Machine Fried Potato Chips Seasoning Machine

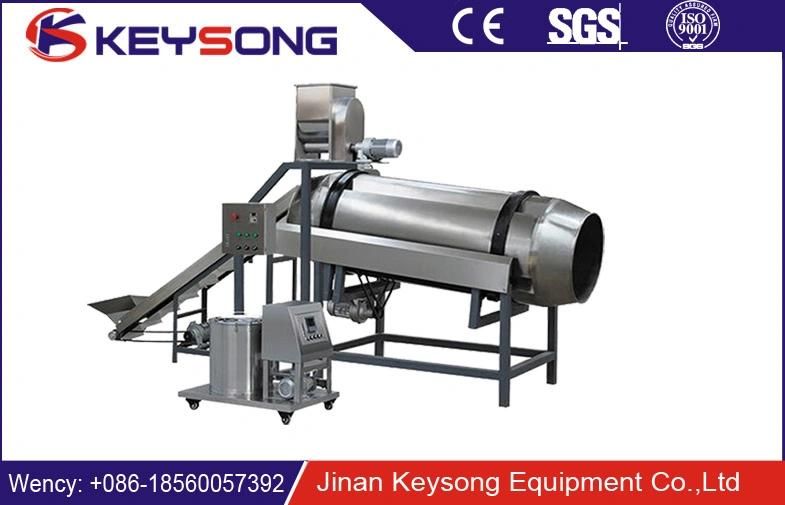

The brief description of mixed and seasoning machine

1. The mixed and seasoning machine is designed according to fried food materials speciality, it's an advanced design special equipment for flavoring and mixing fried food materials.

2. This mixed and seasoning machine is used to mix seasoning powders with fried food materials. It can mix sugar, cumin, chilli powder, sesame, salt or other seasoning powders with fried food materials uniformly and fast.

3. This mixed and seasoning machine is designed with stainless steel octagonal shape, so it can avoid the raw materials not moving or mixing uneven.

4. This mixed and seasoning machine can also discharging the raw materials out automatically.

5. This mixed and seasoning machiner adopts gear motor and gear drive, so as to realize the fried food materials will not be broken.

6. The roller's rotate speed and slope angle both can be adjusted, the powders feeding quantity can also be controlled according to user requirements.

7. The mixed and seasoning machine is with characteristics of mixing the materials more uniform, stable running, automatic mixing, durable stainless steel materials, stable running, low noise, resistant to corrosion.

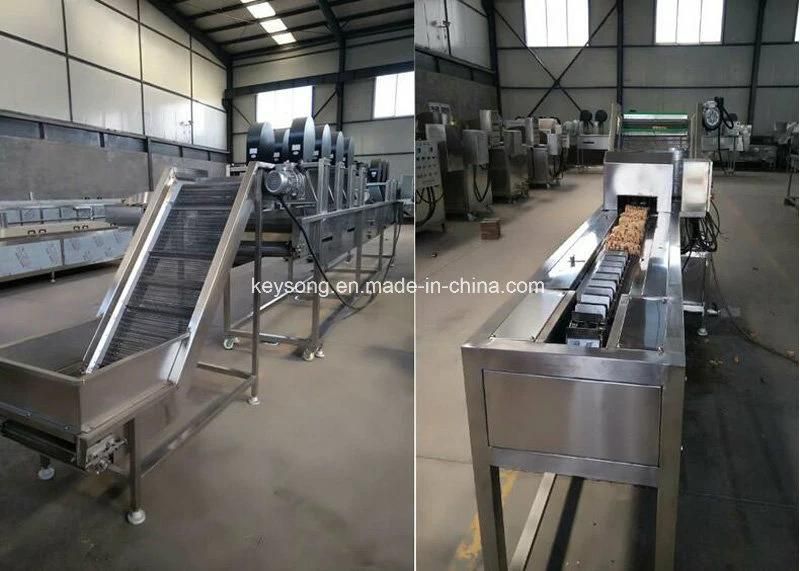

1. Potato cleaning and peeling machine  First connect the machine to the power, open water pipes, and then Add potatoes to the hopper, about 3/5minutes later, move the  baffle at the expect mouth , potatoes will be out automaticall
2. Potato chips machine  Switch on the power, put the peeled clean potatoes into the feed continuously, then they will be cut into chips automatically.
3. Blanching machine  Shaped chips need to be rinsed or blanched, you can take the process in accordance with the choice  of your treatment.
4. Potato dewaterer machine  Put the rinsed chips into the dewaterer for about two minutes ,then they can be fried
Mixed and Seasoning Machine Fried Potato Chips Seasoning Machine
5. Potato frying machine  heat the oil to 170 degrees Celsius, then put the dehydrated potato chips into the frying machine for about 1.5 minutes, french-fries about 5 minutes
6. Potato de-oiling machine
De-oiling machine: put the fried chips into the De  oiling machine, then the chips will be ok for one minutes
7. Potato seasoning machine
put the de-oiled chips into the seasoning machine , adding spices according to the tastes of your
choice, switch on the power, spices will be evenly attached to the French fries on potato chips.


Mixed and Seasoning Machine Fried Potato Chips Seasoning Machine

The technical parameters of the potato chips product line

The capacity:                                250kg/h

Oil fried temperature:                  170-1900C

Diesel fired boiler

 Heating source:                          200x10³kcal

Diesel consumption:                    20-30kg/h

Compressed air pressure:           0.6Mpa

Floor load:                                  1200kg/m2

Workshp size:                             40m*10m* 4.5m(except the packing line)

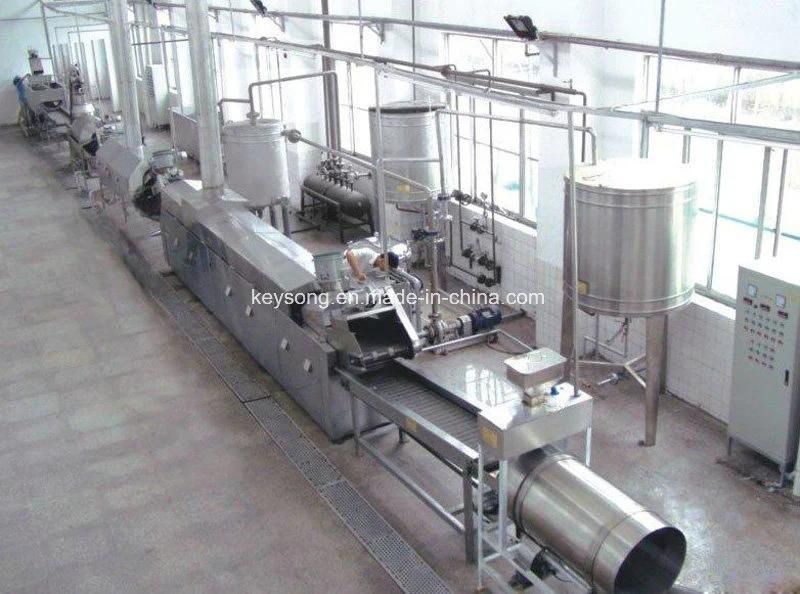

The layout of the potato chips product line
1. The potato chips machine is especially designed for processing potatoes into delicious potato chips,potato crips or frech fries and packing ot potato chips with excellent quality and less fat pickup.
2. Raw materials: fresh potatoes, also can be used for other root vegetables, such as sweet potatoes, purple sweet potato, taro, cassava, etc.
3. Final products: fried chips flat and wave shape),  frech fries, also cam be  adjusted to produce  frozen frech fries,  with packing machine to pack into bags.

Mixed and Seasoning Machine Fried Potato Chips Seasoning Machine
Mixed and Seasoning Machine Fried Potato Chips Seasoning Machine
Our Services:
1) Free samples engraving and cutting.
2) Two years warranty.
3) Free technical training.
4) Installation and commission support.
5) 24 hours on-line service.
6) Telephone service.
7) Prompt delivery.


Packingand shipping:
      Every machine is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with wooden case which is reinforced with the iron bar on the top and bottomWith this kind machine, all our laser machine can protect well during long trip by sea or by train.We can transport machine by boat or by training, according to your requirement.
Mixed and Seasoning Machine Fried Potato Chips Seasoning Machine
FAQ:
1.Are you a factory or trading company?
We are the manufacturer and we have morethan10 years factory experience.As only the machine made by ourself,quality can be trusted,and most important thing is we can do better service after sales.we know how to fix the problem in each parts easliy.so welcome to visit to our factory
2. How long is the delivery time?
For standard machines, it would be 7-10 days; For non  standard machines and customized machines according to client s specific requirements, it would be 15 to 30 days.
3. How should I pay for my order?what is the procession of this purchase?
 You can do 30% prepayment at first, then we will start to make production.when the machine is ready , we will take pictures to you, and then you can do the balance.after we got your payment. We will send the machine to you.
4. How about your service after sales? Can your engineer speak fluent english?
We offer the service from you got the machine,including how to install the machine, how to use machine. how to let machine work.and so on. usually we will teach you how to do by emailor by skype.our engineer has many years of experience for cnc machine service.he can speak very goodenglish,so he can slove the problem in short time.
5. How about the documents after shipment?
Aftershipment,well send all original documents to you by DHL, including Packing List,Commercial Invoice, B/L, and other certificates as required by client.
