• Model NO.：TQLZ80
• Place of Origin：Henan, China (Mainland)
• Quality：European Standard
• Supply Type：Manufacturer
• Transport Package：Seaworthy Wood Case
• Specification：CE, ISO9001, SGS
• Trademark：HNLY
• Origin：Jiaozuo of Henan Province
• HS Code：8437800000
• Production Capacity：3000 Sets Per Month

Basic Info.

Model NO. TQLZ80 Place of Origin Henan, China (Mainland) Quality European Standard Supply Type Manufacturer Transport Package Seaworthy Wood Case Specification CE, ISO9001, SGS Trademark HNLY Origin Jiaozuo of Henan Province HS Code 8437800000 Production Capacity 3000 Sets Per Month

Product Description

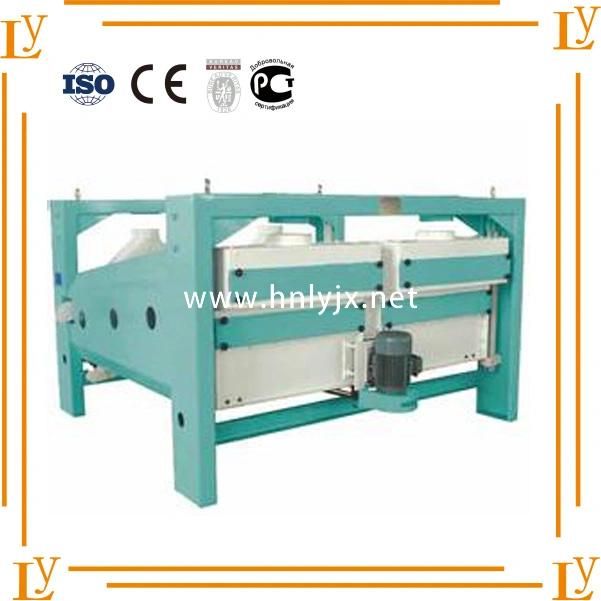

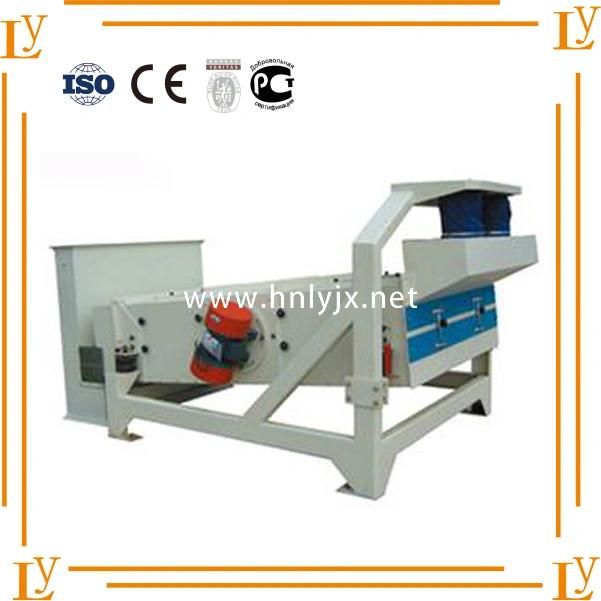

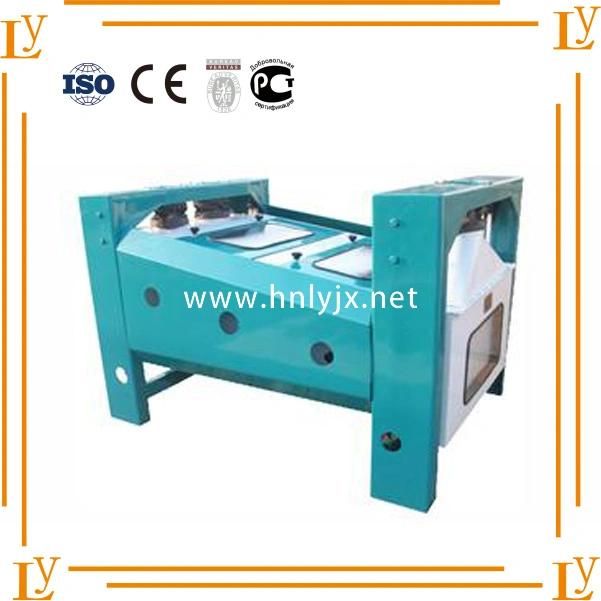

CE Approved Low Noise Vibration Sifter

 Efficient vibrating screen is mainly used to sift and separate large, medium, small and lightweight impurities in grains. It apply vibration motor, damping rubber springs such nice parts, has the feature of low noise, smooth operation, large processing capacity, low energy consumption, great cleaning effect, good sealing performance, no dust leakage.

Technical Datas:


parameter  model	output (t/h)	power(KW)	weight(Kg)	Dimension(mm)
TQLZ80	3	2×0.25	360	1900×1280×1500
TQLZ100	8	2×0.25	420	1785×1480×1720
TQLZ150	20	2×0.55	9000	2285×1980×1820
TQLZ200	25	2×0.75	1400	2785×2480×1820


Good service:
We provide a turnkey project of our machienry, including special design, installation, commissioning ,training workers Life-long after-sales service.
All of our equipment to contain one year free spare parts, and Quality guarantee period of one year.

The process of flour milling:

The process of flour milling (from corn to milled into corn flour) usually consists of the following:
1. corn storage (silos, or warehouse) ----------
2. cleaning system (sifter, destoner, seprater, magnet, scourer, etc) --------

3. dampening (dampener, conditioning silos, etc) -----
4. milling system (roller mill, plansifter, purifier, impact detacher, etc.) ------

5. Flour pressure and blending system (if need) ----------
6. flour packing and stacking
