• Model NO.：YLVC
• Power：20kw
• Steam Pressure：0.6-0.8MPa
• Transport Package：Wooden Case
• Specification：1900X1700X2500mm
• Trademark：Youlu
• Origin：China
• HS Code：8438900000
• Production Capacity：400kg,H

Basic Info.

Model NO. YLVC Power 20kw Steam Pressure 0.6-0.8MPa Transport Package Wooden Case Specification 1900X1700X2500mm Trademark Youlu Origin China HS Code 8438900000 Production Capacity 400kg/H

Product Description

Application:

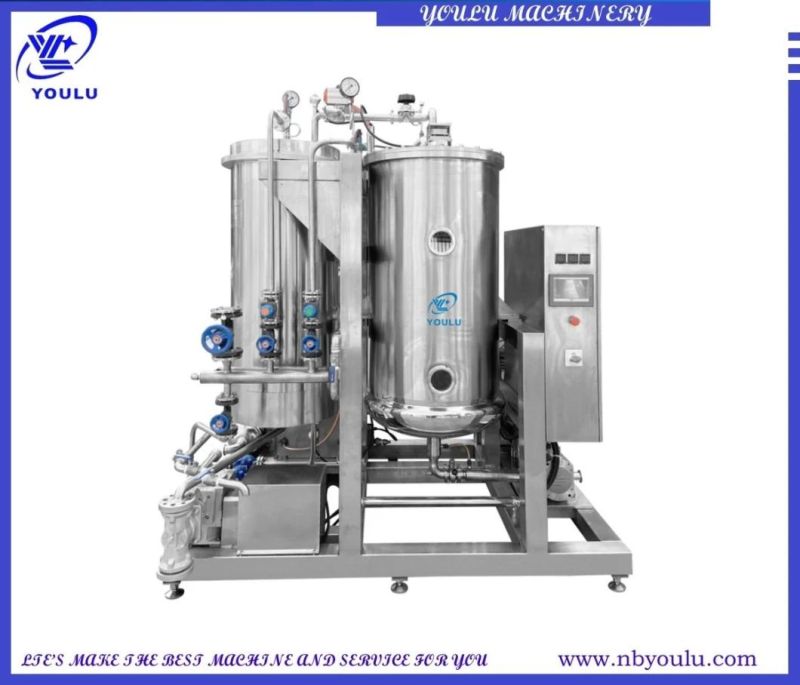

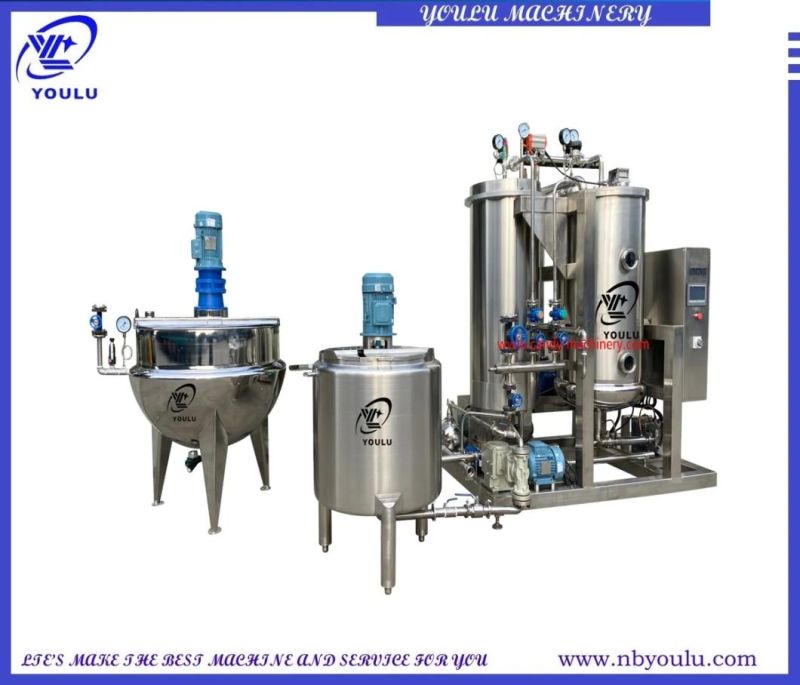

YLMI Series Microfilm Cooker is an advanced equipment for specialized in automatic and continuously syrup cooking . The equipment's feature is large capacity, fast processing ,high vacuum and accurate control temperature of cooking  , Rapid cooking and high vacuum suit for produce good quality and high transparent syrup ,Which is suit for cooking hard candy, fruit hard candy ,crystal candy and toffee .This machine with independent electric box to make sure the electric components safety
Technical Details:

Model	YLMI-I	YLMI-II	YLMI-III
Capacity	150kg/h	350kg/h	500kg/h
Power	13kw	16kw	23kw
Air Consumption	0.5m3/h	0.5m3/h	0.5m3/h
Air Pressure	0.4-0.6Mpa	0.4-0.6Mpa	0.4-0.6Mpa
Steam Consumption	450kg/h	450kg/h	450kg/h
Steam Pressure	0.6-0.8Mpa	0.6-0.8Mpa	0.6-0.8Mpa
Water Consumption	2000L/h	2000L/h	2000L/h
Dimension	1900x1600x2400mm	2300x1600x2400mm	2400x1600x2400mm
Weight	2200kg	2500kg	3000kg
