• Model NO.：GY
• Customized：Customized
• Transport Package：Standard Export Package
• Specification：CE&ISO9001
• Trademark：GY
• Origin：Shanghai China
• Production Capacity：50kg-300kg

Basic Info.

Model NO. GY Customized Customized Transport Package Standard Export Package Specification CE&ISO9001 Trademark GY Origin Shanghai China Production Capacity 50kg-300kg

Product Description

 This peanut butter grinder machine is using different shape of stators and rotors, crushing under the high circumgyration. Grinding the material through cutting, milling, high- frequent-shaking. The distance between stators could be adjusted and grinding by recirculation. This machine has many advantages. Compacted structure, stable working, low noise, rust-proof, easy to clear and maintain.

We can get smooth and fine butter by this machine.

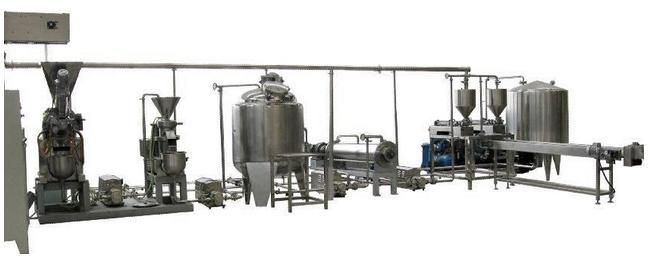

Processing flow chart

raw materials(peanut) →  stone and foreign matters remover → Baking →  Cooling→  peeling → picking →  coarse grinding → deployment → fine grinding → cooling → degassing → filling .



Equipment list:

Oven baker, cooling zone, peeling machine ,conveying picking belt , coarse grinder , ultrafine grinder , condensing machine , gas removing tank , filling machine .



Brief Introduction of each machine

1,Oven baker: to bake peanuts.

2,Cooling zone: use the principle of pulled out of heat by the fan , cooling the baked peanut .

3,Peeling machine: peeling the peanuts after drying and baking, in the process peanut meat and skin automatically separated to ensure t4,he quality of peanut after peeling .

5,Conveying picking belt: selection of the unqualified peanut and food debris .

6,Coarse grinder: grinding peanuts initially.

7,Ultrafine grinder: after coarse grinding peanuts for further grinding, to further improve the processing fineness.

8,Condensing machine: the cool grinded peanut butter .

9,Gas removing tank: degassing before filling the peanut butter .

10,Filling: The filling and packaging.

 Model of the peanut butter processing machine



Model	TZ-80	TZ-130	TZ-180	TZ-240
Output size	2-50 Micro	2-50 Micro	2-50 Micro	2-50 Micro
Capacity	30-40kg/h	200-250kg/h	400-450kg/h	1000-1500kg/h
Voltage	380v,50hz	380v,50hz	380v,50hz	380v,50hz
Power	4kw	15kw	22kw	37kw
Die of rotor	80mm	130mm	180mm	240mm
Size (mm)	685*335*928	975*456*1054	981*471*1124	1319*500*1276
Weight(kg)	210	400	420	1300
