15bbl Brewery System Stainless Steel Micro Brewing Equipment
Shandong Zunhuang Brewing Equipment Co., Ltd.- Condition：New
- Customized：Customized
- Voltage：380V
- Composition：Brewing Equipment
- Processing Material：Steel Stainless 304
- Process：Welding
Base Info
- Model NO.：ZHET-15bbl
- Function：Brewing Beer Brewing Equipment
- Heating Way：Steam,Electric,Direct Heating
- Thickness of Tanks：Inner 3mm, Outer 2mm
- Transport Package：Nude
- Specification：15BBL
- Trademark：Zunhuang
- Origin：China
- Production Capacity：1000PCS,Year
Description
Product DescriptionMash SystemFermentation System

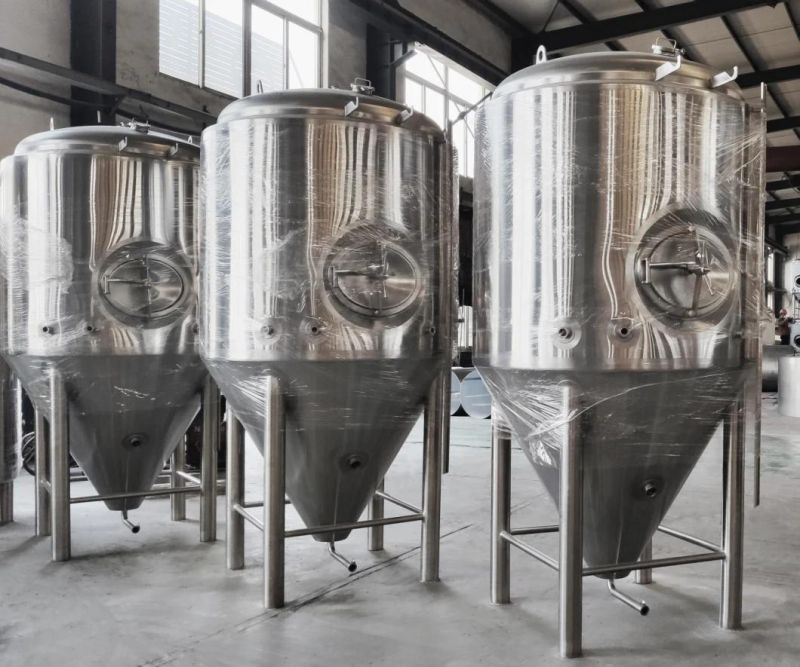

Fermentation System
1. Total volume: 50L-20000L
2. Material: food grade stainless steel SUS304;
3. Cylinder design: cylinder, cylinder thickness: 3.0mm barrel outer thickness: 2.0mm;
4. Manhole: the side manhole;
5. The upper part is equipped with a hop add port, a breathing valve, and a carbon dioxide inflation port at the bottom.
6. Insulation material, polyurethane foam, thickness: 80mm;
7. Cooling method: Miller plate jacket double cooling
8. Pressure: design pressure 3bar, working pressure 1.5-2bar;
9. Lower cone design: cone seal 60° (for yeast discharge);
