• Model NO.：DR207
• Voltage：380V 50Hz 7.5kw
• Materials：Stainless Steel
• Drum Speed：6700rpm
• Slag Discharge Way：Automatic
• Number of Discs：90 Pieces
• Transport Package：Wooden Case
• Origin：Wenzhou China

Basic Info.

Model NO. DR207 Voltage 380V 50Hz 7.5kw Materials Stainless Steel Drum Speed 6700rpm Slag Discharge Way Automatic Number of Discs 90 Pieces Transport Package Wooden Case Origin Wenzhou China

Product Description

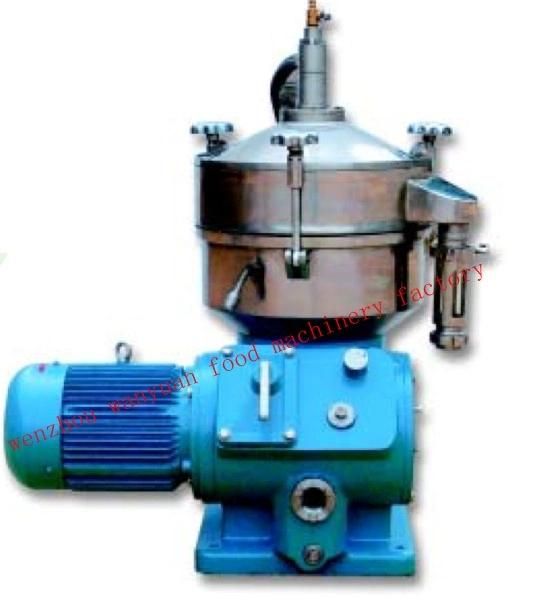

Dairy industry cream separator
1. Application: Medical, chemical, food
2. Disc centrifuge
3. High speed separator
4. Large capacity

Cream separator Main features
Milk separator machine is mainly used skim milk, whey protein isolate, butter, wheat shock shower, casein, cheese production, anhydrous butter centrifuge enrichment and other production processes for medium to large dairy industry enterprises. Equipment uses a closed structure, with milk contact parts made of stainless steel, in line with national food hygiene standards. Device according to user requirements, can also be used in the milk, milk residue, after condensation casein, the protein and whey protein isolate, and whey clarification and purification.

Cream separator Main parts of the equipments
1. Access device
2. Rotor drum
3. Paring disc device
4. Drive system
5. Stainless steel cover
6. Engine base
7. Motor.

The following is the parameters of the milk separator

Model	DR203	DH204	DH207
Rated Flow Rate	1500L/H	2000L/H	4000-5000L/H
Output	300-500L/H	400-700L/H	800-1500L/H
Durm rotational speed	8300 r/min	7300 r/min	6300 r/min
Inside the drum diameter	φ230 mm	φ260 mm	Φ360 mm
separation factor	9300	8900	9300
Slag discharge way	Artificial slag removal	Semi-automatic slag removal	Semi-automatic slag removal
The disc space	0.5mm	0.5mm	0.5mm
Motor power	380V  50Hz 3Kw	380V  50Hz 4Kw	380V  50Hz 7.5Kw
Number of discs	75	80	100
Overall dimensions	800*610*1000 mm	830*610*900 mm	1090*990*1280 mm
weight	260kg	320kg	680kg
