Seasoning Red Chilli Stem Cutting Machine
YANGZHOU COYOTECH MACHINERY CO., LTD.- Processing Material：Special Agricultural Products, Chilli
- Application：Vegetable, Chilli
- Customized：Customized
- Power Source：Electric
- Automatic Grade：Automatic
- Transport Package：Export Packaging
Base Info
- Trademark：COYO
- Origin：China
Description

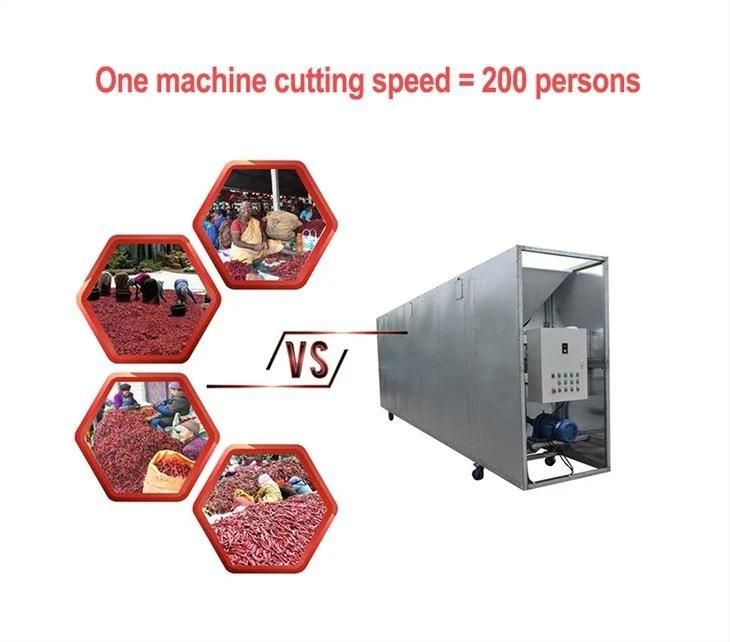

Chili stem cutting machine
Model
LJB-3
LJB-2
Power
16.5KW
11KW
Voltage
380V/50HZ
380V/50HZ
Capacity (output)
250-300KG/H
150-250KG/H
Dimension
8920*1100*3540mm
5900*1100*2440mm
Weight
3500KG
2600KG
What Should We Pay Attention To When Using The Chili Stem Cutting Machine
1. The motor can be used continuously for a long time, but it is not allowed to start continuously and frequently, otherwise the motor winding will overheat and damage the motor and other electrical appliances.
2. The cutting machine is designed after high-precision conversion. Customers can not arbitrarily reduce and improve the parameters of parts in the application process. They are responsible for the consequences of arbitrarily reducing and improving the parameters of parts.
3. In order to ensure the safety of production, customers are not allowed to remove the side guard plates arbitrarily in the application process.
4. In case of equipment failure, it is not allowed to reach into the equipment by hand. Inspection and repair should be carried out after shutdown.
5. The motor drive belt will naturally elongate after applying the corresponding length of time. When the customer finds that the drive belt is elongated, he should adjust the four bolts on the frame of the motor.
