Mini Table Kitchen Icecream Machine
Foshan Shunde Skywin Foodstuff Machinery Co., Ltd.- After-sales Service：Whole Life
- Warranty：One Year
- Usage：Biscuit, Icecream
- Power Source：Electric
- Timing Device：With Timing Device
- Type：Production Line
Base Info
- Voltage：380V
- Customized：Customized
- Touch Screen：Siemens Brand
- Belt：PU
- Material：304 Stainless Steel
- Package：Full Auto
- Motor：Sew
- Capacity：90-250kg,H
- Transport Package：Plywood Boxes
- Specification：2000kgs
- Trademark：Skywin
- Origin：Guangdong
Description
(NET)
(PACKING)
Feature:
1. Table model
2. Air cooling
3. Twin flavour+one mix
4. Gravity feed
5. Stainless Steel Panels
6. LED disaply
7. Automatic control
Freezing cylinder
Two, 1.8 Liter
Mix hopper
Two, 12.5 Liter
Separate hopper refrigeration(Pre-cooling)maintains mix below 4.4 ºC.
Microprocessor controls
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.
Mix low light
The mix low light turns"on" to alert operator to add mix, preventing cylinder over freezing.
Standby
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4 ºC during long no-use periods.
Counter
Records number of dispenses per day and total number of dispenses.

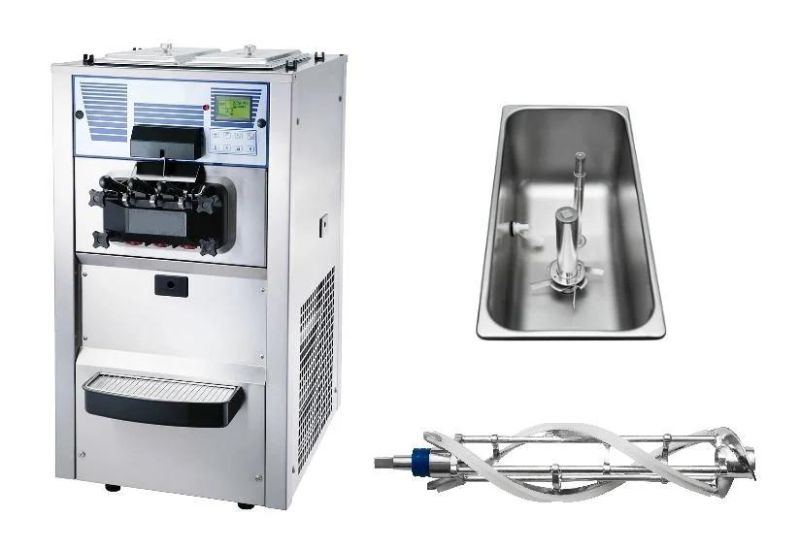

Agitator in the hopper
Mixture has better liquidity, the temperature of the Mix to be more uniform.
Output
40 Liter/Hour(At 4 ºC liquid &24 ºC Ambient)
Electrical requirements
One dedicated electrical connection is required.
Make voltage steady when machine is ON.
Main motor
One, 1.5HP
Refrigeration system
One compressors: 5039 BTU/hr. R404A
Separate hopper refrigeration(pre-cooling): One compressor: 400BTU/hr. R134A
(BTU may vary depending on compressor used. )
Air cooled
Minimum clearance of 152 mm on both sides is to achieve optimum performance.
Refer to the local situation to regulate the parameters, on basic of the data label. Specificaitons of the improvements are subjuct to change without notice.
Options
Local specific plugs of power supply wire
Cup cone dispenser
Power supply:208-230V/60HZ
All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Packing&Delivery:
Our regular packaging is multilayer packing, safe transport, shipping by sea:
Step 1: Mechanical surface coated with preservative solution (to protect stainless steel).
Step 2: The plastic cushion packing machine (prevent bump).
Step 3: Plastic film packaging (to prevent ventilation).
Step 4: Wooden case / frame packaging (easy to transport).
Step 5: Tie the bandage outside of the wooden case (reinforcement overall).
FAQ
Q1: Which kind of biscuit you can produce for your biscuit line?
A. Hard and Soft biscuit, Soda Cracker, Cookies, also Stick biscuit, Print biscuit and Chocolate filling biscuit, different shape biscuit just need to change the mould, we also can design mould for you as per your details.
Q2. What kind of oven you supply?
A. We can supply gas oven or electrical oven according to your requirement.
Q3. How long is your biscuit line?
A. we can design the biscuit line according to the layout of your workshop.
Q4. Which brand of motor you use for the line?
A. we can supply European motor reducer(SEW) or Chinese famous motor for your options.
Q5. Are you manufacturer?
A. Yes, we are a biscuit machine manufacturer in China.
Q6. How is the payment?
A. We accept 40% T/T deposit before production and 60% T/T balance before shipment,and Western Union or L/C.
