Clj Large Scale Capacity Mmjx Rotary Rice Grading Machine

HUNAN CHENZHOU GRAIN & OIL MACHINERY CO., LTD.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Type：Rice Mill
  • Application：All
  • Voltage：380V
  • Appearance：Horizontal

Base Info

  • Model NO.：MMJX
  • Press Materials：Rice
  • Condition：New
  • Customized：Customized
  • Weight：2000kg
  • Power：2.2kw
  • Capacity：8-10t,H
  • Air Volume：900m3,H
  • Transport Package：Wooden Case
  • Specification：2220x2340x2290 mm
  • Trademark：CLJ
  • Origin：China
  • HS Code：84378000
  • Production Capacity：3000units,Year

Description

Clj Large Scale Capacity Mmjx Rotary Rice Grading MachineCharacteristic:

Adopt turning around the center of the screen movement type, the moving speed and the rotary turning amplitude are adjustable.
Grading layer by layer to ensure less head rice in big broken rice and none in small broken rice.
Airtight sieve body equipped with suction device, less dust.
Using u-joint to hang the main body
 Equipped with additional screen to separate middle-sized chaff.
  Clj Large Scale Capacity Mmjx Rotary Rice Grading Machine

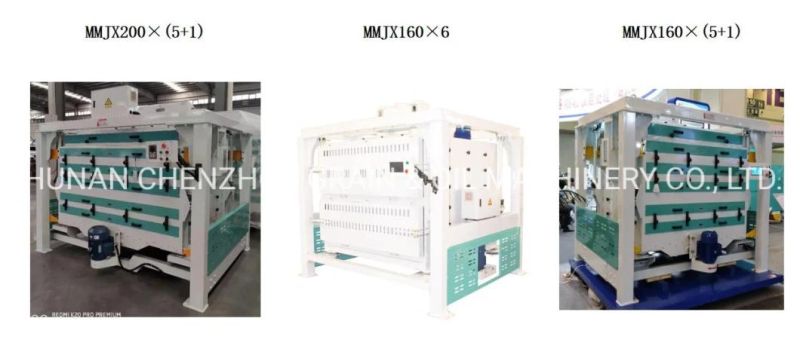

Model
number
Parameter		MMJX160×4MMJX160×4+1MMJX160×5+1MMJX200×(5+1)
output(t/h)5~6.55-6.58-1010~13
power(kw)1.51.52.23
rotate speed(r/min)160160-200160-200Controlled by frequency converter
Slant angle(°)1.21.21.21.2
Air volume(m/min)10×210×21620×2
weight(kg)1500165019002600
Broken in fine rice(%)<5<5<5<5
Fine in big broken(%)<5<5<5<5
Fine in small broken(%)0000
