• Model NO.：6YL-160
• Condition：New
• Customized：Customized
• Motor Speed：1440rpm
• Shaft Speed：30-40rpm
• Hot Press and Cold Press：Both Available
• Delivery Time：5-7days
• Capacity：500-550kg,h
• Power：22kw
• Transport Package：Wooden Box

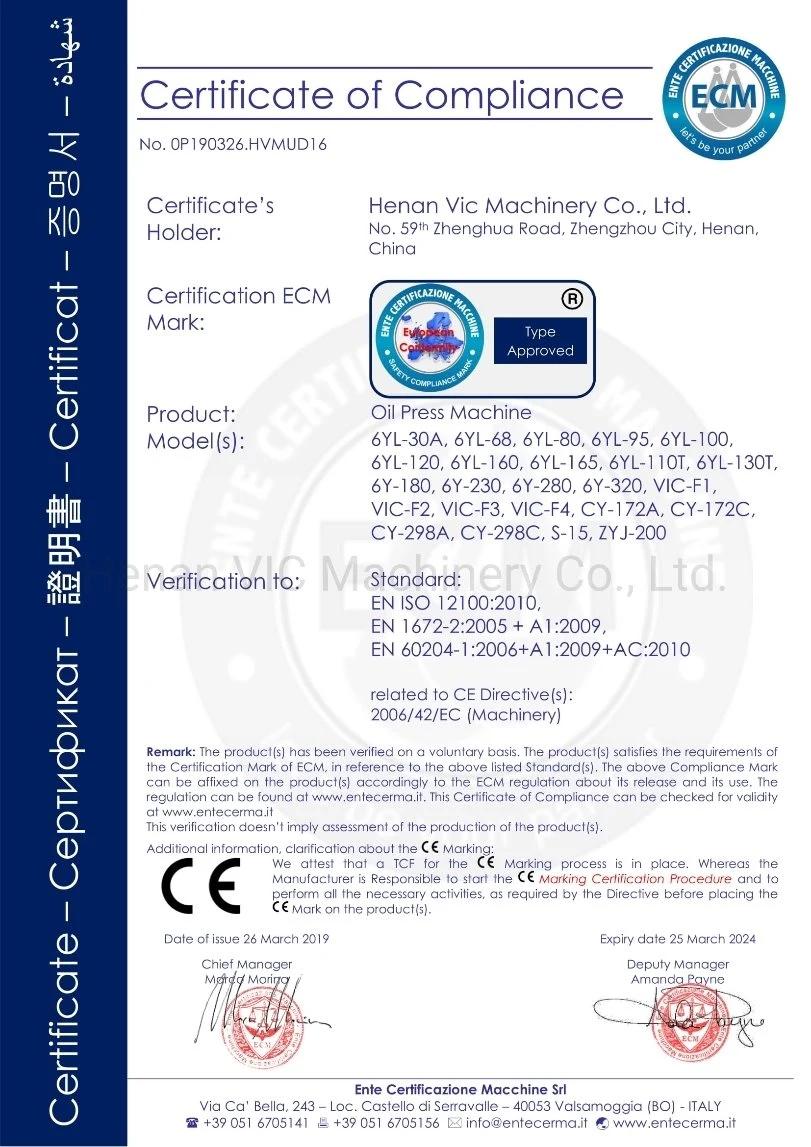

• Specification：CE
• Trademark：VIC
• Origin：China
• HS Code：84792000
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. 6YL-160 Condition New Customized Customized Motor Speed 1440rpm Shaft Speed 30-40rpm Hot Press and Cold Press Both Available Delivery Time 5-7days Capacity 500-550kg/h Power 22kw Transport Package Wooden Box Specification CE Trademark VIC Origin China HS Code 84792000 Production Capacity 5000PCS/Year

Product Description

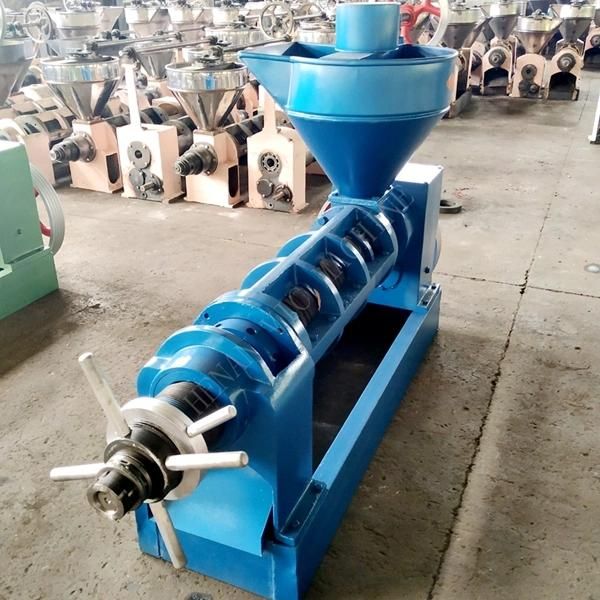

                                                                             6YL-160 oil press machine

Application:
This screw oil press is advanced expeller which is widely used in pressing oil from vegetable oil seeds, such as soybean, peanut, sunflower seeds, cotton seeds, sesame, tea seeds, copra, jatropha seeds, castor seed, etc. And the product oil is for both edible and biodiesel fuel purpose. It has advantage of high efficiency, low consumption, simple operating, stable function, easy maintenance, high productivity and high oil output.

Advantage
1.Simple and easy operation,one key to start without other operating
2.High oil yield to  the highest 97%
3.Reliable transmission systems are mostly helical gears with greater torque
4. Pure copper motors are more powerful and less failure rate
5. Reasonable design and configuration of strip and round row ensure faster oil output and higher oil yield
6. Stainless steel oil guide plate is cleaner and more sanitary
7 Advanced automatic stirring forced feeding system ensures the uniformity and continuity of feeding
8.Convenient and labor-saving adjustment and disassembly system facilitates product adjustment and maintenance

Main date
Model: 6YL-160 oil press
Capacity:500-550kg/h for oil seeds
Power: 22kw(380V/50Hz/3p)
Residue oil in cake: Less than 8%
Size: 2120X700X1480mm
Weight: 1000KG

More models:

Model	Capacity(kg/h)	Power(kw)	Machine Size(mm)	Weight(kg)
6YL-68	50kg /h	5.5kw	930x490x820	150kg
6YL-68C	50kg /h	5.5kw	930x575x1055	150kg
6YL-68J	50kg /h	5.5kw	930x575x1055	150kg
6YL-80	100kg /h	5.5kw	1307x550x1102	300kg
6YL-95	200kg /h	7.5-11kw	2155x580x1250	550kg
6YL-100	200kg /h	7.5-11kw	2050x550x1180	550kg
6YL-120	300kg /h	11-15kw	2150x610x1300	700kg
6YL-130	450kg /h	15-18.5kw	2180x610x1480	800kg
6YL-160	550kg /h	18.5-22kw	2180x610x1480	900kg
6YL-165	700kg /h	22-30kw	2280x620x1680	1300kg

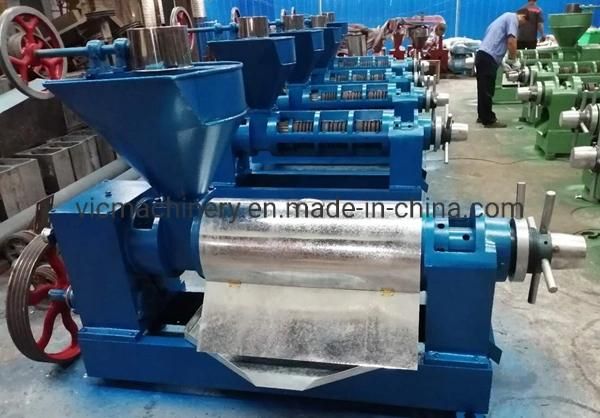

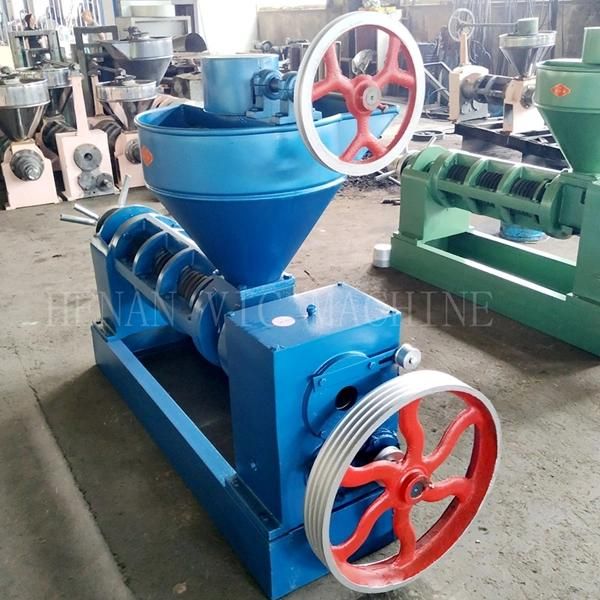

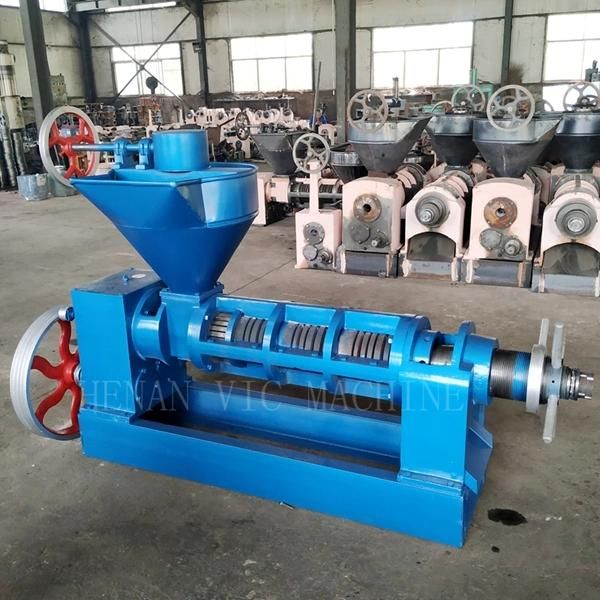

More pictures

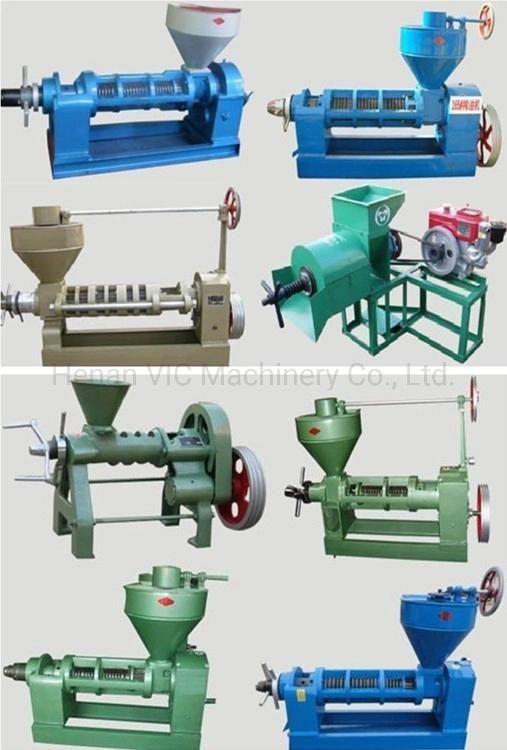

More pictures of 6YL-system oil press machine

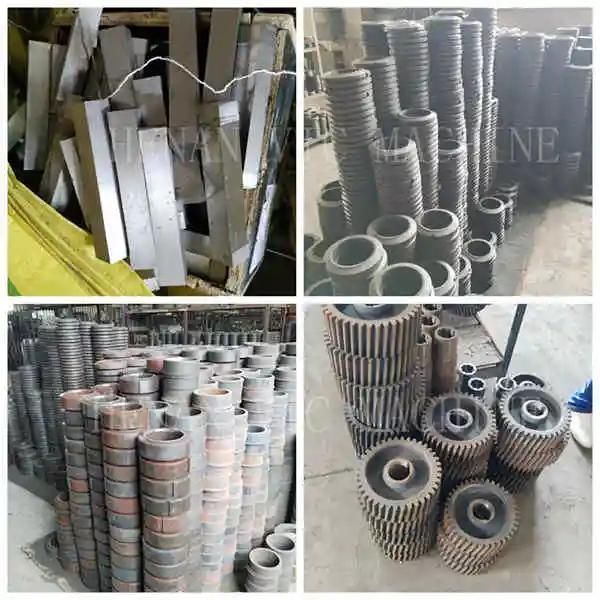

Parts

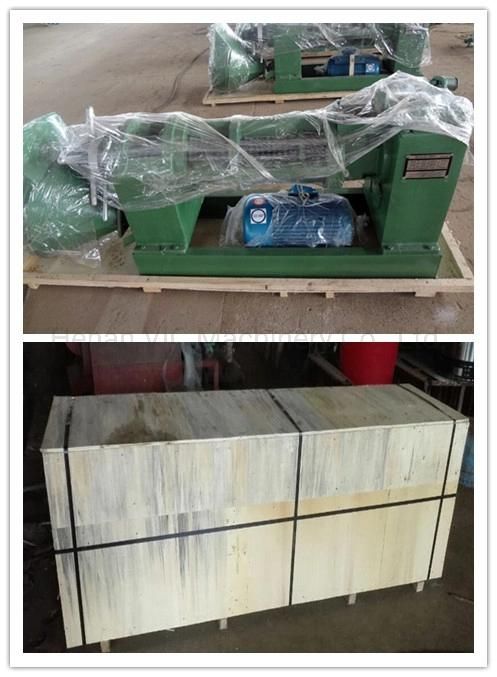

Package picture

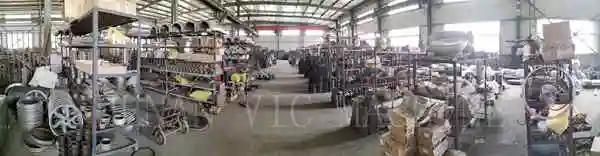

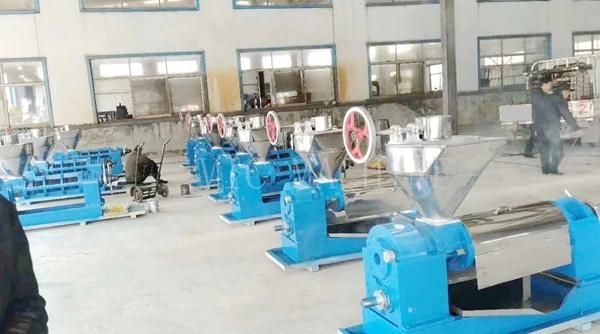

Our Factory



After-sale serive
