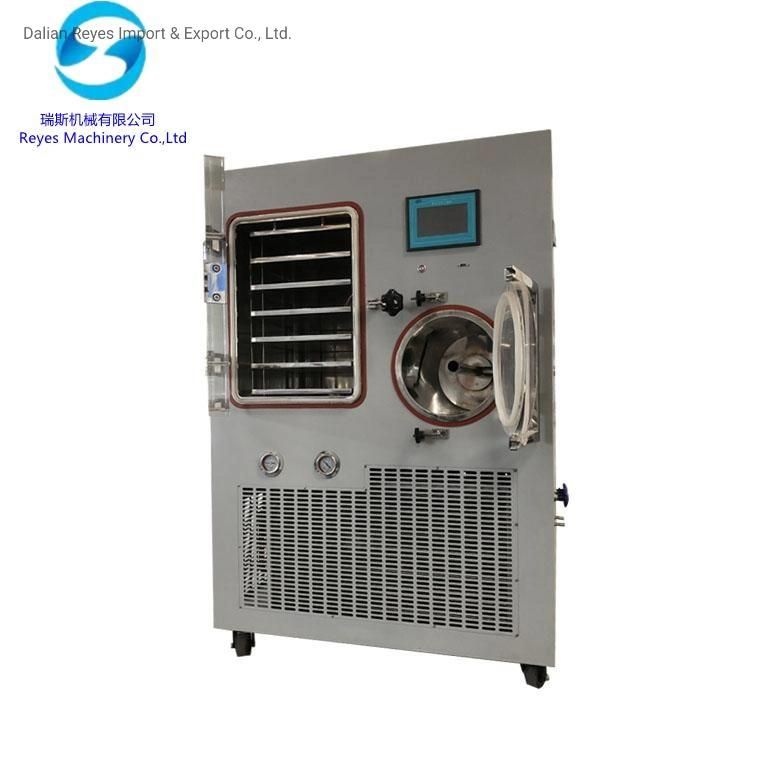

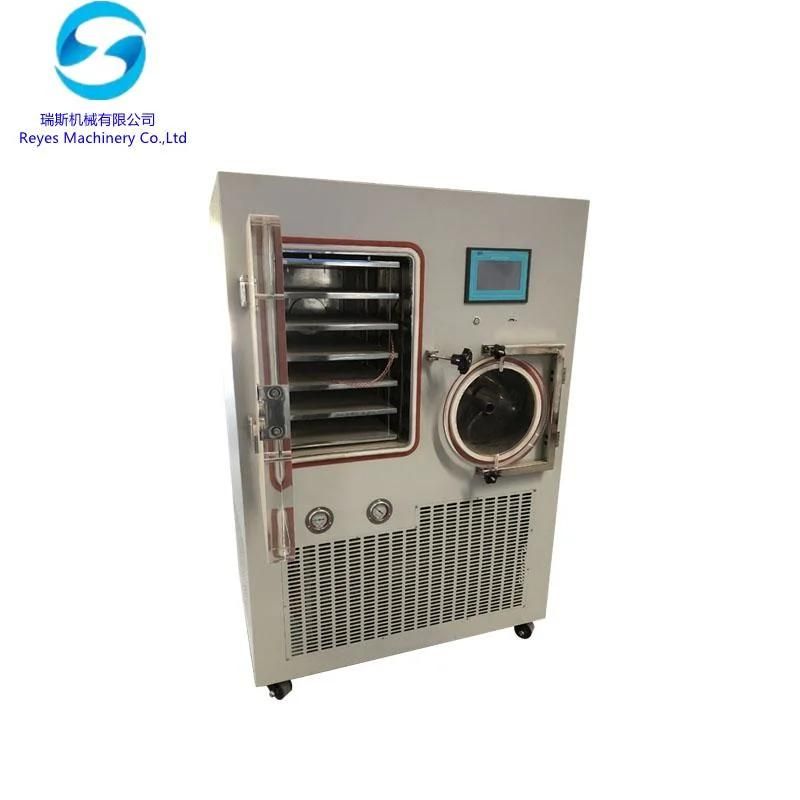

Drying Equipment Prices Freeze Dryer Food Lyophilizer
Dalian Reyes Import & Export Co., Ltd.- After-sales Service：Online Support
- Warranty：1 Year
- Type：Dryer
- Voltage：220V
- Power：0.75KW
- Customized：Customized
Base Info
- Model NO.：Res-zlgj30
- Defrost：Natural Defrost
- Plate Temperature：-50ºC - 70ºC
- Cold Trap Temperature：≤-75ºC
- Name：Freeze Drying Equipment
- Transport Package：700*800*1300mm
- Specification：120KG
- Trademark：Reyes
- Origin：China
Description
Product DescriptionClassical type ZLGJ-20 ZLGJ-30 ZLGJ-50 ZLGJ-100 Freeze-dried area 0.3M2 0.4M2 0.5M2 1M2 Number of plate 3+1 3+1 4+1 6+1 Plates space 50mm 50mm 50mm 70mm Plate size 270*400*15 300*340*15 360*480*15 360*480*15 Plate temperature -50ºC to 70ºC -50ºC to 70ºC -50ºC to 70ºC -50ºC to 70ºC Cold trap temperature ≤-75ºC ≤-75ºC ≤-75ºC ≤-75ºC Water for cold trap 4KG/24Hr 6KG/24Hr 8KG/24Hr 15KG/24Hr Defrost 36V electric defrost Natural defrost Natural defrost 36V electric defrost Voltage AC220V/50Hz AC220V/50Hz AC220V/50Hz
AC380V/50Hz AC380V/50Hz Dimension 800*800*1550 880*735*1320 960*785*1450 1020*780*1700
Details Images

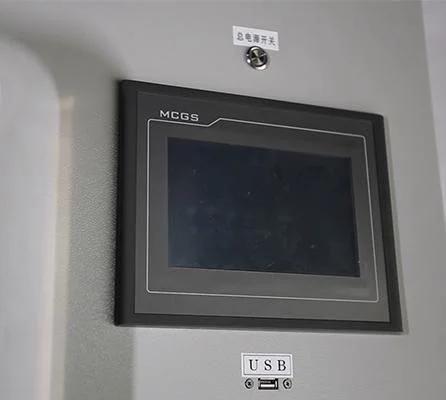

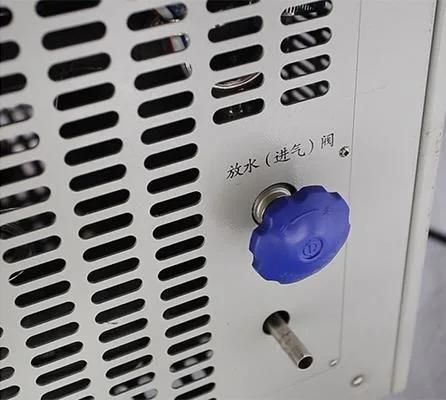

Inflator valve and drain valve Inflator valve, drain valve are adopted high vacuum safety diaphragm valve and can be connected with inert gas to extend the shelf life of the material. This unit can store 40 sets of freeze-drying processes, each set can be set up to 36 segments. The local defrosting function has high temperature defrosting, high defrosting speed and high safety performance.
Industrial and mining enterprises, colleges and universities, biological products, food processing, agricultural science, chemical pharmacy, medical units and powder drying and baking under vacuum condition in all kinds of laboratories. Especially suitable for the drying of heat sensitivity, easily decompose, easily oxidation material and complicated ingredient materials.
Packaging and Delivery
Our service
The technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories , and deal with technical and quality issues.
3. Our products with 1 years' warranty and life maintenance.
4. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
5. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
6. Our company will provide perfect after-sale services and technical support. Hot line: 86-15941954210
Contact person: Cathy
Once receive the calling of complaints, we will respond to it within 12 hours at working time and provide solution within 48 hours. If necessary, our company will send technical staff there and provide on-site solution.
AC380V/50Hz
Details Images
Inflator valve and drain valve Inflator valve, drain valve are adopted high vacuum safety diaphragm valve and can be connected with inert gas to extend the shelf life of the material. This unit can store 40 sets of freeze-drying processes, each set can be set up to 36 segments. The local defrosting function has high temperature defrosting, high defrosting speed and high safety performance.Industrial and mining enterprises, colleges and universities, biological products, food processing, agricultural science, chemical pharmacy, medical units and powder drying and baking under vacuum condition in all kinds of laboratories. Especially suitable for the drying of heat sensitivity, easily decompose, easily oxidation material and complicated ingredient materials.
Packaging and Delivery
Our serviceThe technical and after-sale services are listed as follows:
1. Provide free technical training, guidance and information of accessories.
2. Our technical staff could instruct our customers on the installation of connector and accessories , and deal with technical and quality issues.
3. Our products with 1 years' warranty and life maintenance.
4. Our company will provide technical services by phone, fax, e-mail, etc., please refer to the contact details.
5. Our company will implement the contract strictly; deliver the products to location specified by our customers for free in accordance with the mode of transportation.
6. Our company will provide perfect after-sale services and technical support. Hot line: 86-15941954210
Contact person: Cathy
Once receive the calling of complaints, we will respond to it within 12 hours at working time and provide solution within 48 hours. If necessary, our company will send technical staff there and provide on-site solution.
