• Specification：CE, 3A, FDA, ISO
• Trademark：DONJOY
• Origin：Wenzhou, Zhejiang, China
• HS Code：9032899090
• Production Capacity：100, 000PCS

Basic Info.

Specification CE, 3A, FDA, ISO Trademark DONJOY Origin Wenzhou, Zhejiang, China HS Code 9032899090 Production Capacity 100, 000PCS

Product Description

DONJOY ATEX Certified Shutoff Diverter Valve Smart Valve Feedback

Specification:

Max operating temperature	70degree c
Medium	lubricated compressed air. inert gased
Air connection	G1/8''
Working pressure	1.5bar-7bar(22PSI-102PSI)
Air flux	200NL
Protection class	IP67
Journey	Min3mm. Max 70mm
Max C-TOP units	31
Cable length	2m
Max.Length of AS-I BUS	1M
Packaging details	standard exporting package
Delivery details	Usually within 20 days after receiving T/T down payment

AS-I BUS:two cables are used for digital and 30V DC voltage
AS-I card size:2.1
AS-I card capacity:four input and four output(4 soleboid valves and four sensors)
Operating Principles:

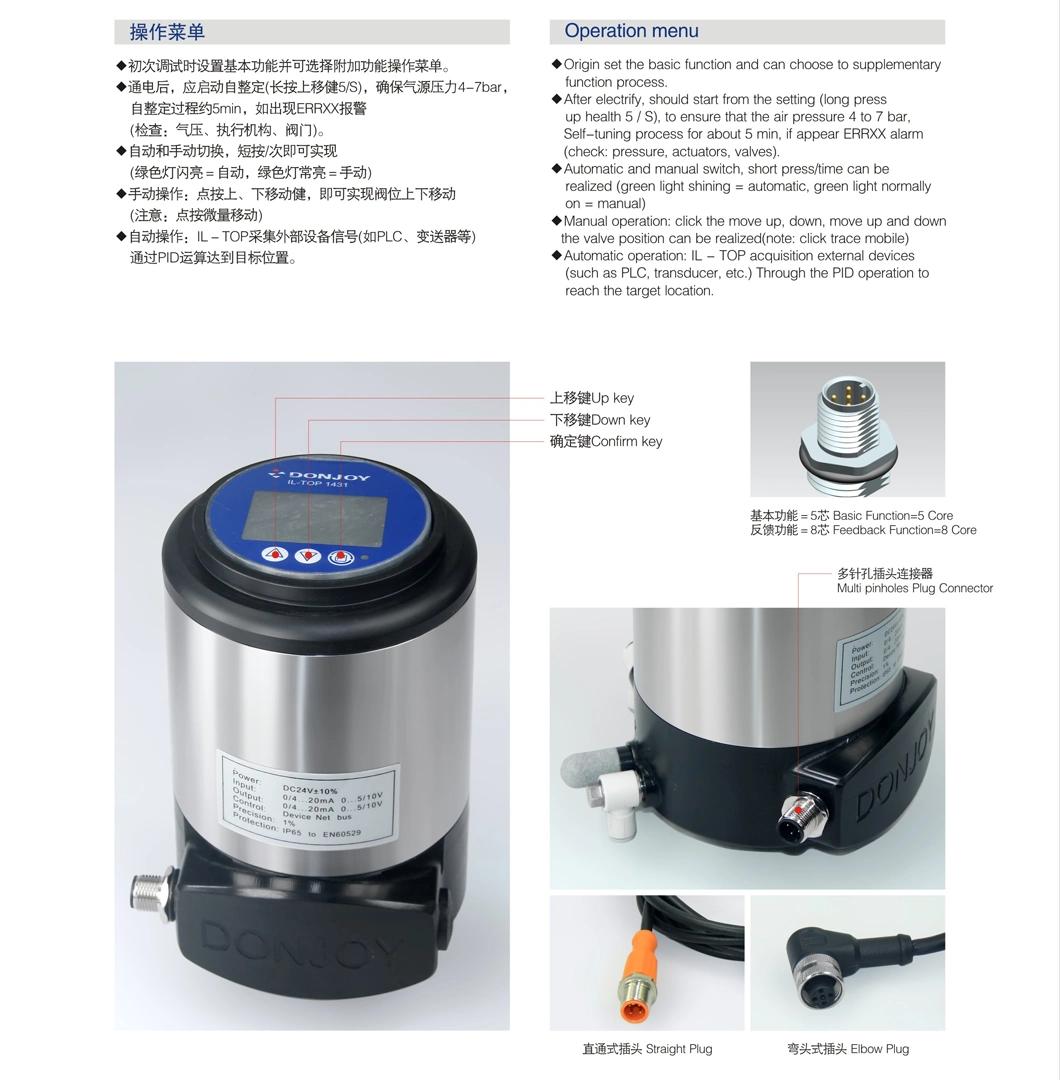

C-TOP is a head incorporates signal sending and command devices to monitor all the process valves.such part has the following features:
Controlled by pneumatic or electrical actuactors
Position indicator with signal feedback
The control head can be fixed with pneumatic valves, It picks signal from control board or PLC so as to operate and send signal to the valves.
In addition, there are three LED signal indicator in the C-TOP box which indicates the status of the valves:
Green:open
Red:clise
Yellow:valve is operating in the third position

Valve Position mechanical adjusted:
open or close- one sensor
Open and close--two sensors
Valve position:open, close. clean the lower seat
Seat lift(mix-proof valve)---three sensors

Valve Position self-adjusting:
1pc sensor with multi position feedback
Valve position self-adjusting function
Analog signal(4-20mA)output
Electrical signal (DC24v)output
Multiple pinhole plug


Applications:
C-TOP is a pneumatic control head which is designed to ensure optimum control valve.
It is compatible with most PLC with figure and(AS-I bus) communications.

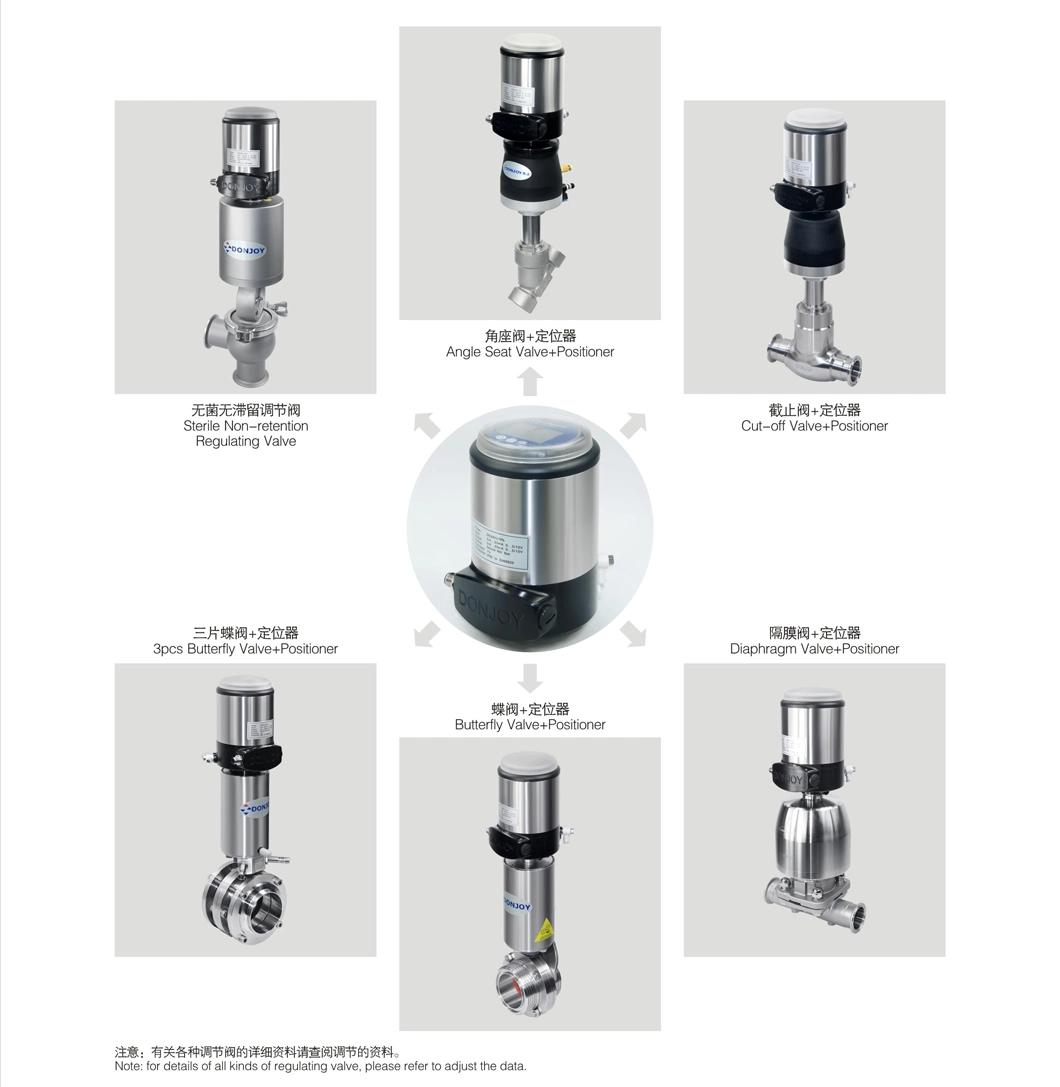

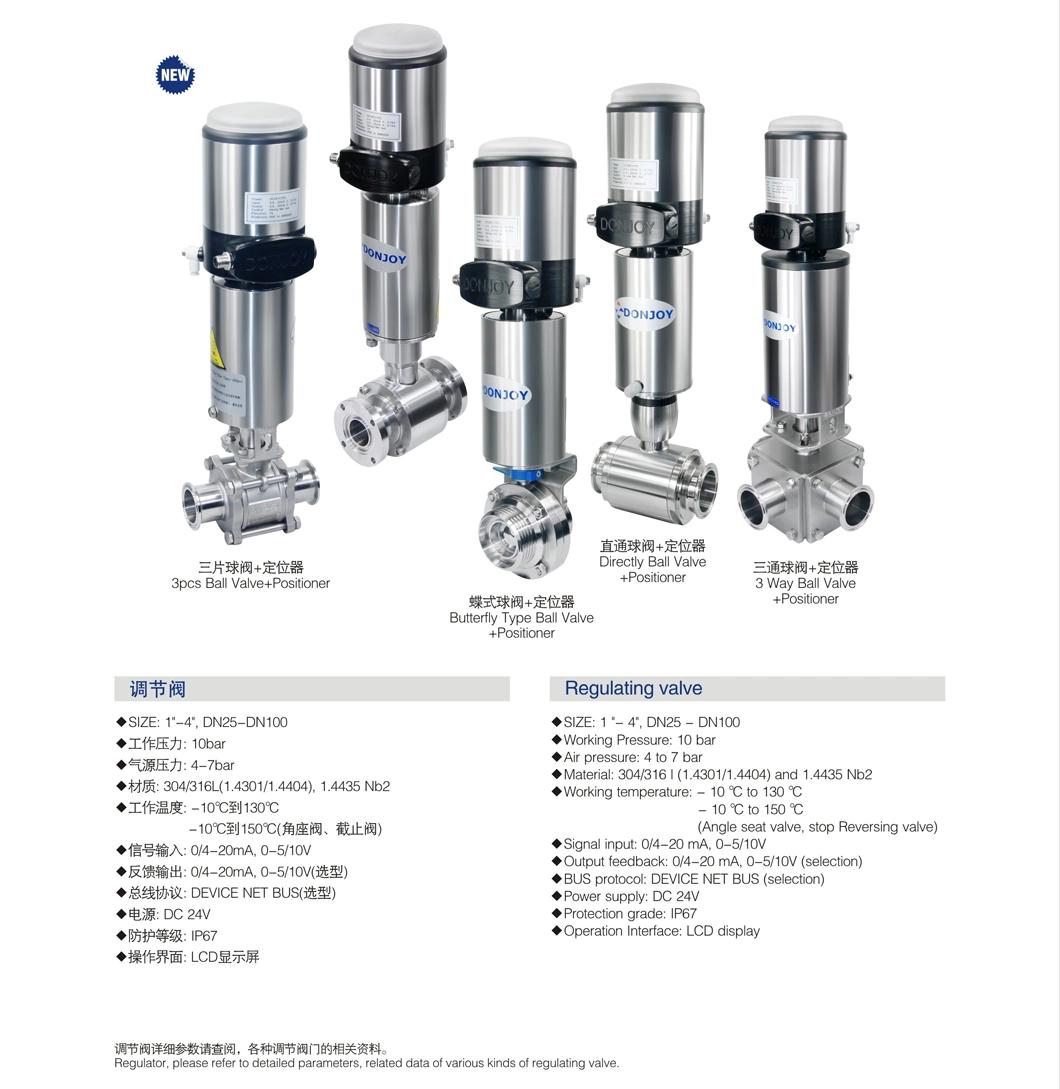

In food, beverage, pharmacy industries, it can be configured to all kinds of pneumatic valves such as mixing valve, butterfly valve, ball valve, diaphragm valve, reversing valve, cut-off valve, etc.

Options:

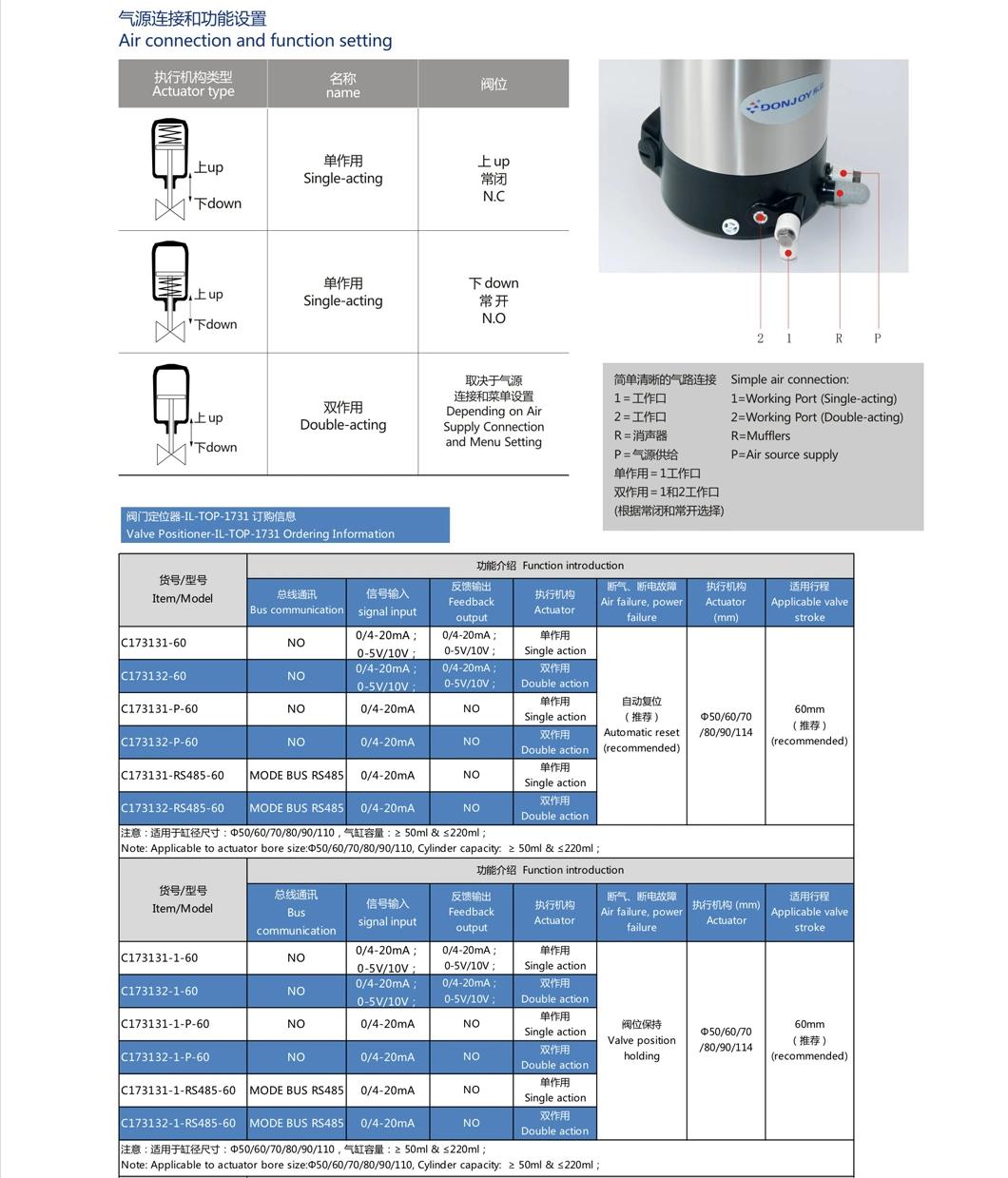

This controller has two versions:Displacement regulating version and Mechanic adjustment version
Single act---one solenoid valve
Double act-two solenoid valves
Mix-proof double seat valve---three solenoid valves
Sensor:one/two/three
Connection function:Cable connection or AS-I bus
Single acting, souble acting, three effects( mixproof valve)
