Non - Fried Leisure Snack Food Microwave Baking Puffing Machine
Jinan Kelid Machinery Co., Ltd.- Certification：CE
- Power Source：Electric
- Process：Thermal Processing
- Automatic Grade：Automatic
- Application：Popcorn, Chips, Biscuit, Donut, Grain, Nuts, Leisure Food, Chips etc
- Customized：Customized
Base Info
- Model NO.：KLD- Microwave Puffing Machine
- Product Name：Tunnel Leisure Food Microwave Baking Machine
- Model：Kld- Microwave Baking Machine
- Worker Needed：1-2workers
- Moter：Siemens, ABB and Other China Brand
- Warranty：1 Year After Commissioning
- Heating Source：Microwave Heating
- Material：SUS304
- After- Sale Services：Overseas Engineers
- Feature：High Efficiency Low Cost
- Capacity：10- 1000kg, H

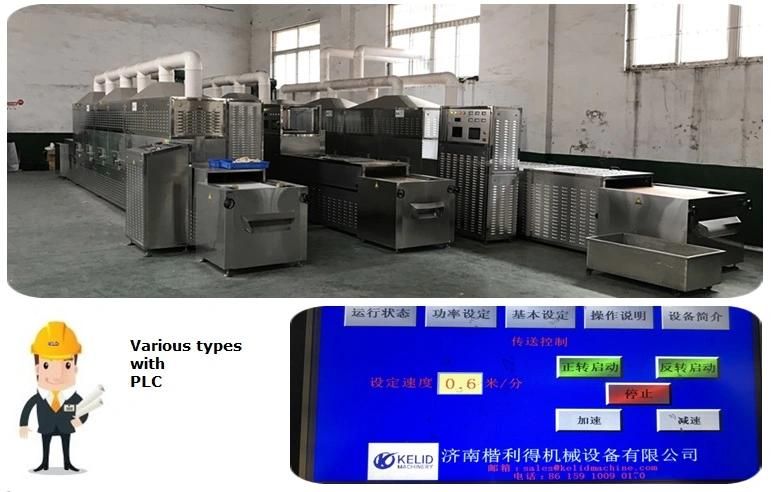

- Control System：PLC
- Magnetron Brand：Sumsung
- Weight：3000kg
- Advantage：Low Temperature High Efficiency
- Transport Package：Wooden Case with Film Inside
- Specification：Fully stainless steel SUS304
- Trademark：KLD
- Origin：Shandong, China
- Production Capacity：100- 1000kg,H
Description
Equipment Model
KLD-Microwave Drying Equipment
KLD-Microwave Drying Equipment
Operating frequency
2450±50MHZ
2450±50MHZ
Rated inputapparent power
≤60KW
≥120KW
Microwave output
≥50KW
≤110KW
Temperature
70-200ºC(controlled)
70-200ºC(controlled)
Type of cooling
Water-Cooling/Air cooling
Water-Cooling/Air cooling
Inlet and outlet height
40-100mm
40-100mm
Height of conveyor
600-1000mm
600-1000mm
Tranmission speed
0~10m/min(adjustable frequency)
0~10m/min(adjustable frequency)
Dehydration Rated
40-50KG/hour
40-50KG/hour
Contour dimension
12500mm*1600mm*2200m
(customized)
12500mm*1600mm*2200m
(customized)
Width of conveyer belt
750±100mm(customized)
1000±100mm(customized)
Microwave leakage standard
ISO≤5mw/cm²
ISO≤5mw/cm²
Company Information
PackingShipping
Packing:
Inside: plastic bag.
Outside: wooden case (adopt the wooden case or wooden pellets depended on clients' requirement).
Shipping:
Train, express, or upon clients' demands
.
Service & customers
Before payment,
1.Free contact for the most suitable machine
2.Free professional design
3.Field factory visit
After sale service,
1.24 hours technical support by phone, email/whatsapp/skype/wechat.
2.For the whole equipment,warranty is 12 months,within 12 months,if there's any equipment quality problem, we will provide accessories freely.
3.After the expiration of the warranty period,if there's any spare parts problem,we only charge the cost of required replacement parts.
4.We commit providing free technical support of equipment all whole life.
Certificate
Contact us
Any inquiry or question, feel free to contact me! I will reply you as soon as I can!
