• Model NO.：GDQ300
• Capacity：300kg,Hour
• Transport Package：Wooden Case
• Specification：CE
• Trademark：TGMachine
• Origin：Shanghai
• HS Code：84382000
• Production Capacity：60sets,Year

Basic Info.

Model NO. GDQ300 Capacity 300kg/Hour Transport Package Wooden Case Specification CE Trademark TGMachine Origin Shanghai HS Code 84382000 Production Capacity 60sets/Year

Product Description

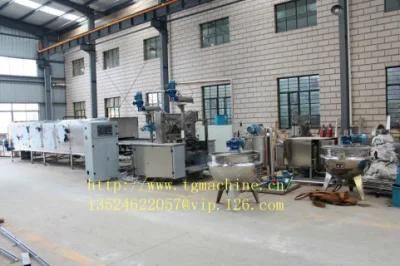

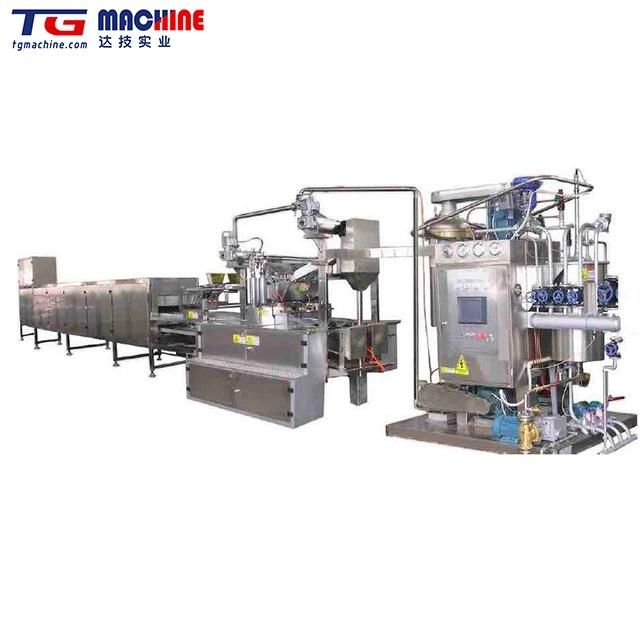

QQ(JelIy)gummy candy processing line is an advanced and continuous plant for making different sizes of jelly candies (QQcandies).It is an ideal equipment which can produce out good quality products with the saving of both the manpower and the space occupied. This deposinting line consists of jacket dissolving cooker, gear pump, storage strainer, storagetank,discharging pump, color & flavor jigger, color & flavor mixer, depositor, cooling tunnel, e|ectric control cabinet, etc


Model	GD150Q	GD300Q	GD450Q
Production capacity   ( kg/h)	150	300	450
Rated depositing times(n/min)	20~25	20~25	20~25
Weight of each candies(g): two colors single color	2g~.6g 1.5g~6g	2g~6g 1.5g~6g	2g~6g 1.5g~6g
Electric power needed	8kw/380V	12kw/380V	16kw/380V
Refrigerator	MT160 x1 15,000 kcal/h 10.5kw	MT160x2 30,000kcal/h 21kw	MT160x2 30,000kcal/h 21kw
Compressed air consumption Compressed air pressure	0.20m3/min 0.4-0.6 Mpa	25m3/min 0.4-0.6 Mpa	25m3/min 0.4-0.6 Mpa
Conditions needed for   the cooling system: 1.Room temperature(°C) 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Conditions needed for   the cooling system: 1.Room temperature(°C) 2.Humidity (%)	20~25 55	20~25 55	20~25 55
Length of the whole line   (m)	9m	11m	15m
Gross weight           ( Kgs)	Approx.3000	Approx.4000	Approx.5000




FLOW CHART:

Sugar and gelatin dissolving→    mixing→     cooling→ transporting→  depositing →  cooling → de-moulding →following disposalà packing
