• Model NO.：GJB
• Application：Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage
• Customized：Customized
• Name：500L-2000L Ice Cream Milk Homogenizer for Beverag
• Material：Food Grade Stainless Steel 304,316
• Capacity：500L,H--10000L,H
• Pressure：25MPa -- 100 MPa
• Appications：Dair ,Juice, Beverage ,Ice Cream ,Tomato

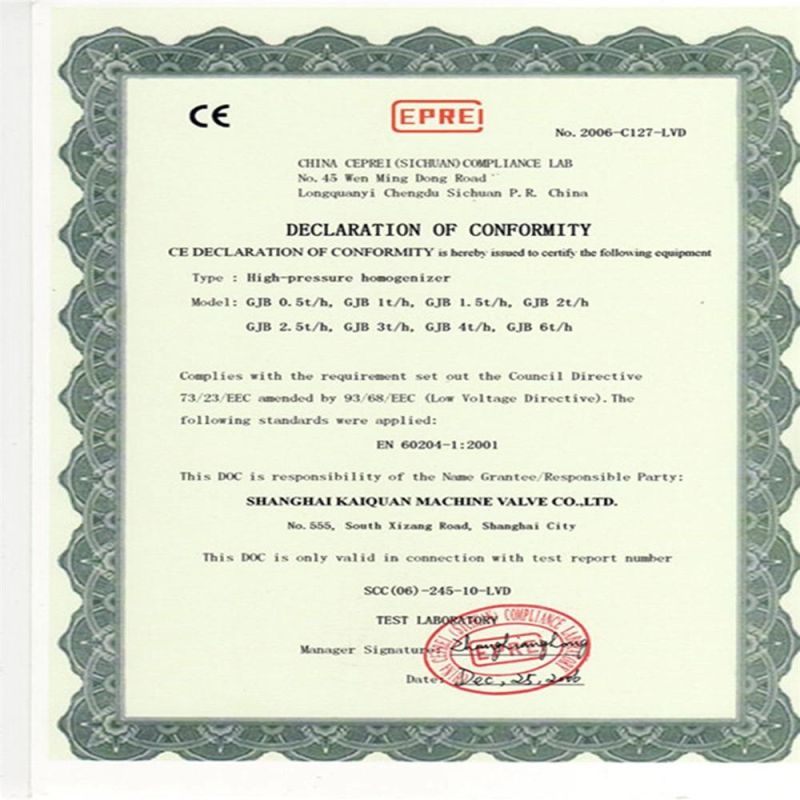

• Certificate：CE Certificate
• Motor：Siemens ,ABB ,China Brand
• Pressure Piston：Two Stage
• Work Life：More Than 10years
• Packing：Wooden Box
• Stage：Two Stage
• Plunger：4 Set
• Cooling：Circulation Tap Water
• Spare Parts：Available
• MOQ：1set
• Transport Package：Standard Wooden Box
• Specification：CE
• Trademark：KAIQUAN
• Origin：Shanghai, China
• HS Code：8479820090
• Production Capacity：100 Units,Month

Basic Info.

Model NO. GJB Application Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage Customized Customized Name 500L-2000L Ice Cream Milk Homogenizer for Beverag Material Food Grade Stainless Steel 304/316 Capacity 500L/H--10000L/H Pressure 25MPa -- 100 MPa Appications Dair ,Juice, Beverage ,Ice Cream ,Tomato Certificate CE Certificate Motor Siemens /ABB /China Brand Pressure Piston Two Stage Work Life More Than 10years Packing Wooden Box Stage Two Stage Plunger 4 Set Cooling Circulation Tap Water Spare Parts Available MOQ 1set Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/Month

Product Description

500L-2000L Ice Cream Milk Homogenizer For Beverage Industry
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life .

Model No. Technical parameter	KQ0.5-25	KQ1-25	KQ1.5-25	KQ2-25	KQ2.5-25	GJB3000-25 KQ3-25	KQ5-25
Rated pressure(MPa)	25	25	25	25	25	25	25
Rated flow ( Liters/H )	500	1000	1500	2000	2500	3000	5000
Medium temperature(C)	≤85	≤85	≤85	≤85	≤85	≤85	≤85
Feeding pipe diameter(mm)	25	25	25	25	25	32	40
Discharge pipe diameter(mm)	15	15	20	20	20	20	25
Power of motor(Kw)	5.5	7.5	11	15	18.5	22	45
Volt and Electricity Flow	220V,60HZ,3PH	380V,50HZ	380V,50HZ	380V,50HZ	220V,60HZ,3PH	380V,50HZ	380V,50HZ
Outline dimension (m) Length * width * height	1.16×0.9×1.24	1.16×0.9×1.24	1.16×0.9×1.24	1.4×1.1×1.42	1.4×1.1×1.42	1.4×1.1×1.42	2.2×1.45×1.1
Weight(Tons)	0.4	0.5	1.25	1.25	1.25	1.25	1.7

series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )



500L-2000L Ice Cream Milk Homogenizer For Beverage Industry .
