• Model NO.：RHFC60-60-15
• Model：60-60-15
• Transport Package：Sea Transport Wood Case Packing
• Specification：CE ISO9001 SGS
• Trademark：ERUSUN
• Origin：Zhangjiagang
• HS Code：8422301090
• Production Capacity：200PCS,Year

Basic Info.

Model NO. RHFC60-60-15 Model 60-60-15 Transport Package Sea Transport Wood Case Packing Specification CE ISO9001 SGS Trademark ERUSUN Origin Zhangjiagang HS Code 8422301090 Production Capacity 200PCS/Year

Product Description

Description:
Sphere of applied product: juice, tea beverage, functional beverage and so on.
Suitable for: PET bottles with all volumes and shapes
Filling system: hot filling
Production capacity: 21000BPH *500ml

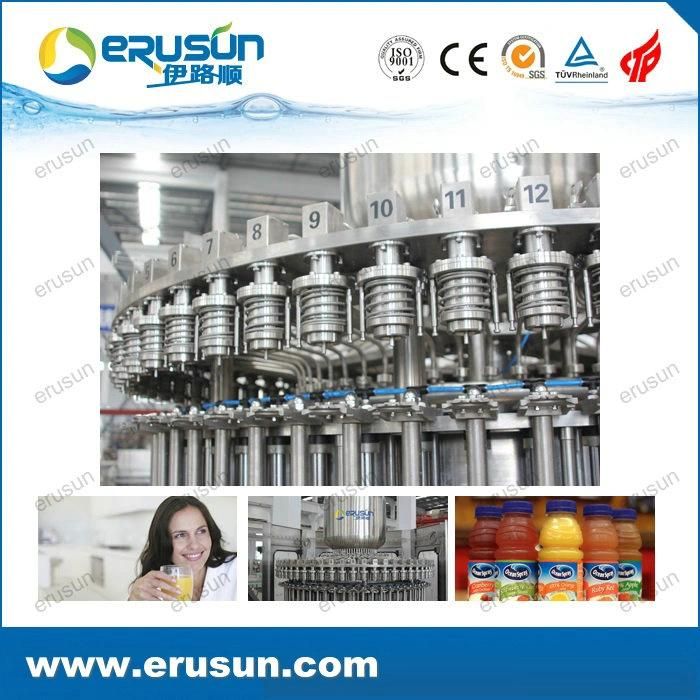

This hot filling machine is the standard 3-in-1 monoblock. But to the special production condition, another sanitizer rinsing could be added, that is 4-in-1 monoblock. The system has fully considered the beverage's characteristics (such as the frothing of the tea drink and mixed juice) and the technical requirement of the hot filling.

Technical features:
Full filling is to avoid the bottle from sinking after the bottle cooling off, and to decrease the dissolved oxygen to the utmost extent.
Reasonable structured storage hopper and material supply system keep the material in the constant flow speed, constant pressure and without frothing. Usually high position tank is adopted.
The storage hopper has the characteristic of gas discharge, full sealing and temperature detecting. In moderate and high speed production line, the material distributor replaces the big liquid tank to realize the complete CIP.

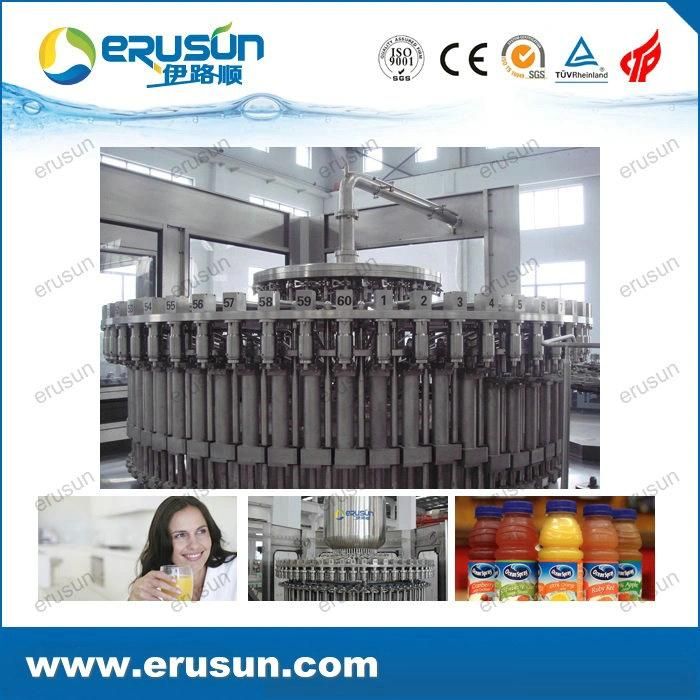

Sanitary filling head system is of umbrella structure, high filling speed.
Perfect filling temperature control system.
Return tank system has the function of supplying the material automatically.
Perfect CIP system

Technical Parameters
Model: RHFC60/60/15
Rinsing Head: 60
Filling Head: 60
Capping Head: 15
Production capacity (500ml) (B/H): 21000BPH
Filling accuracy: ≤±5mm
Filling the back flow: ≤8%
PET bottle size (mm): Bottle diameter φ50-φ100mm; Height 150-320mm
Cap shape: Plastic cap
Rinsing water pressure (Mpa): 0.2-0.25
Rinsing water consumption (ton/h): 4t/hour
Air pressure (Mpa): 0.7
Air consumption (m3/min): 1M3/min
Motor power (KW): 12
Weight (KG): 9500
Packing Size (L*W*H) (mm): 6200×4950×3000


brand	ERUSUN
company	ZHANGJIAGANG ERUSUN MACHINERY CO.,LTD.
original	CHINA
