• Model NO.：HT-50 Sunflower oil equipment
• Condition：New
• Customized：Customized
• Transport Package：Fit for Shipping
• Specification：4.6*2.5*2
• Trademark：HUATAI
• Origin：Henan
• HS Code：84792000
• Production Capacity：50sets,Month

Basic Info.

Model NO. HT-50 Sunflower oil equipment Condition New Customized Customized Transport Package Fit for Shipping Specification 4.6*2.5*2 Trademark HUATAI Origin Henan HS Code 84792000 Production Capacity 50sets/Month

Product Description

Sunflower seed oil introduce
Sunflower seed oil is rich in nutrients to maintain human health. The content of oleic acid in the oil is as high as 66%.Linoleic acid plays a role in maintaining balance and lowering serum cholesterol by regulating metabolism and blood pressure. It is rich in carotene (0.045%), which can be converted into vitamin A after being absorbed by the human body. In addition to the above advantages, sunflower seed oil is also easy to be absorbed by the human body, so it is called "high nutritional oil"

Refined Sunflower seed oil index

Item	Quality index
Refined oil color(Lovibond cuvettes133.4mm)	Y20,R2.0
Smell, taste,	no
Transparency	Clarification and transparency
Moisture and volatile matter (%)	≤0.05
Insoluble impurities  (%)	≤0.05
Acid value (mg KOH/g)	≤0.2
peroxide value m mol/kg)	≤5.0
Smoke point(ºC)	≥215
Freezing test(store for 5.5h at 0ºC)  (0ºC5.5h)	Clear and transparent
Residual solvent (mg/kg)	No

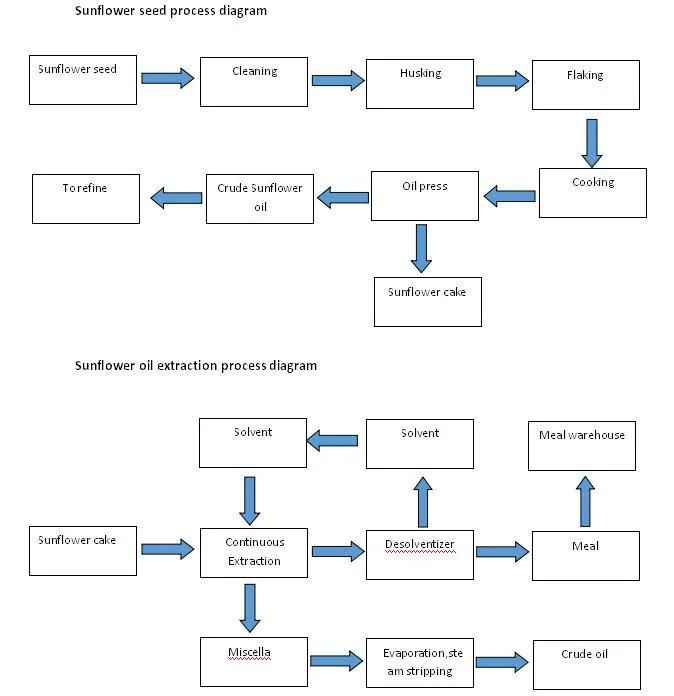

Sunflower seed oil Pretreatment process

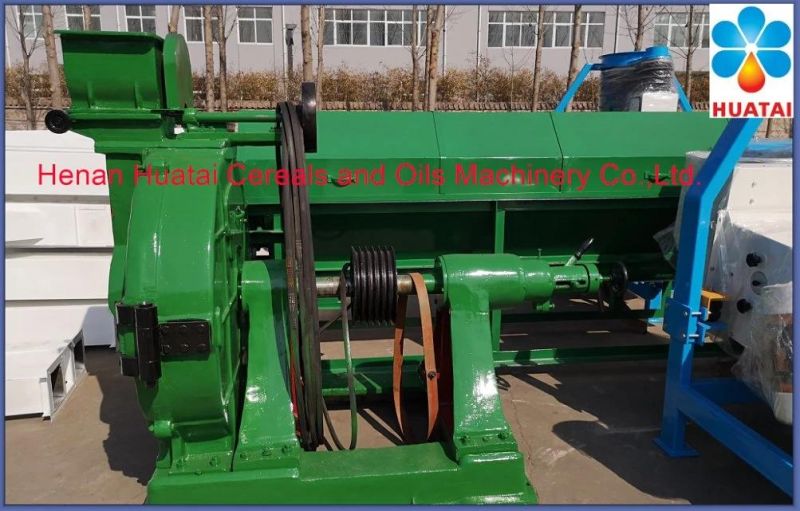

Sunflower see husking machine
Sunflower seeds dehuller mainly for de-hulling, removing shells, separating, re-separating, etc .High efficiency,low consumption

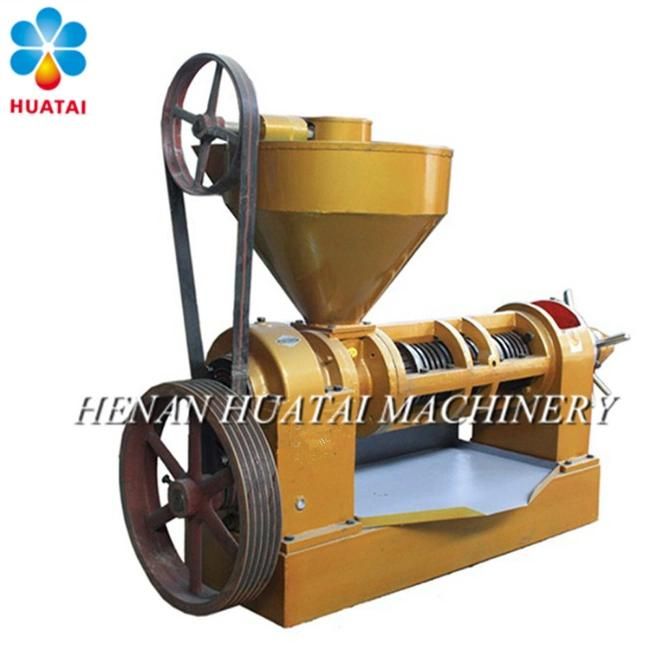

Spiral Oil press advantage
with mechanical squeeze method, the spiral oil press produced by our company is suitable for squeezing vegetable oil from rapeseed, soybean, cottonseed, shelled peanut, flax seed, tung seed, sunflower seed and palm kernel, et. The product has characteristics of small investment, high capacity, wide compatibility and high efficiency. The product conforms to the "Technology Standard of Agricultural Spiral Oil Press" under JB/T9793·1-1999 of the People's Republic of China.

Different Sprial Oil press machine

model           parameter Term	YZYX70	YZYX90	YZYX10(95)	YZYX10-6/8/9
Process capacity	1.3 t/24h	3 t/24h	3.5-4 t/24h	4.5 t/24h
Required power	4kw	5.5kw	17.5/11kw	11kw
Weight	195kg	285 kg	570 kg	590 kg
Dimension (L*W*H)	1090*405*806	1200*550*1000	1620*580*1195	1720*580*1185
Dry Cake oil content	≤8%	≤8%	≤8%	≤8%
Spiral rotate speed	32~42r/min	32~42 r/min	32~42 r/min	32~42 r/min

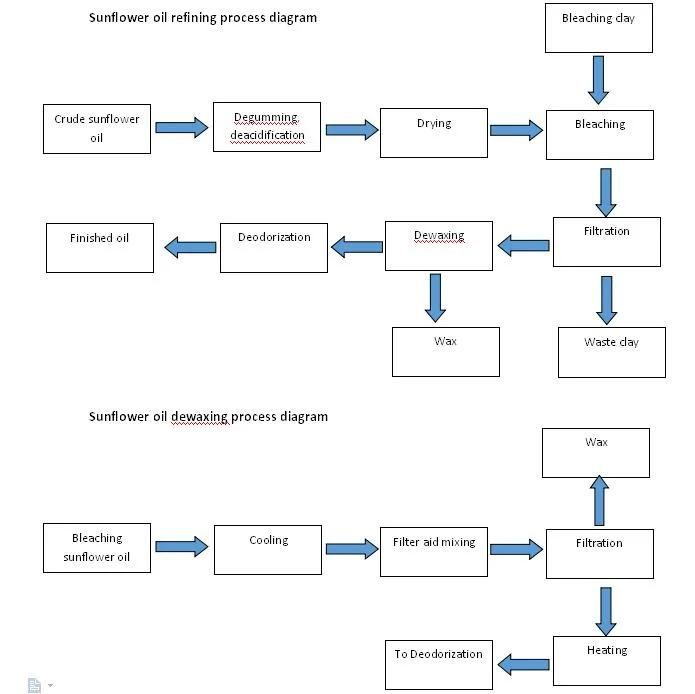

Sunflower oil refining proess
Oil refining is the process of removing unnecessary free fatty acids, stearic, colloid, waxes, pigments, odors and solid impurities by physical or chemical methods. Its purpose is to scientifically and economically separate the unwanted impurities in the oil according to the requirements of the physicochemical, quality and hygienic oil product indexes stipulated by the state, so as to improve the use value and economic value of the oil and meet the needs of consumers and other industries.

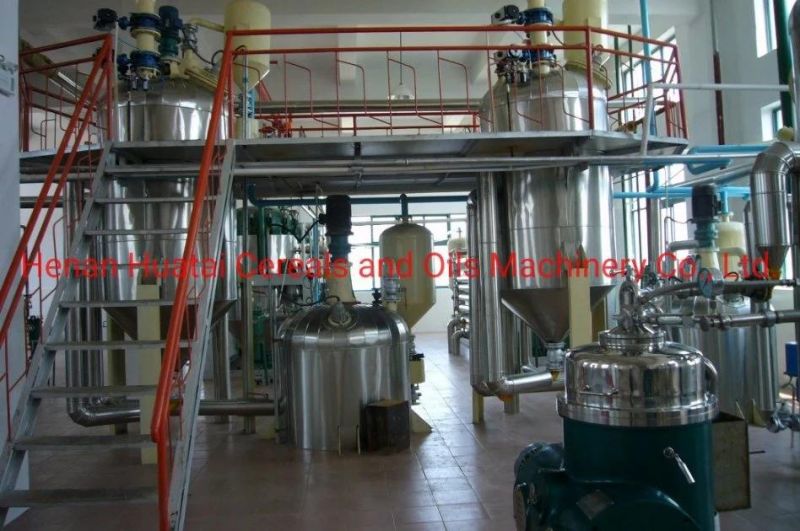

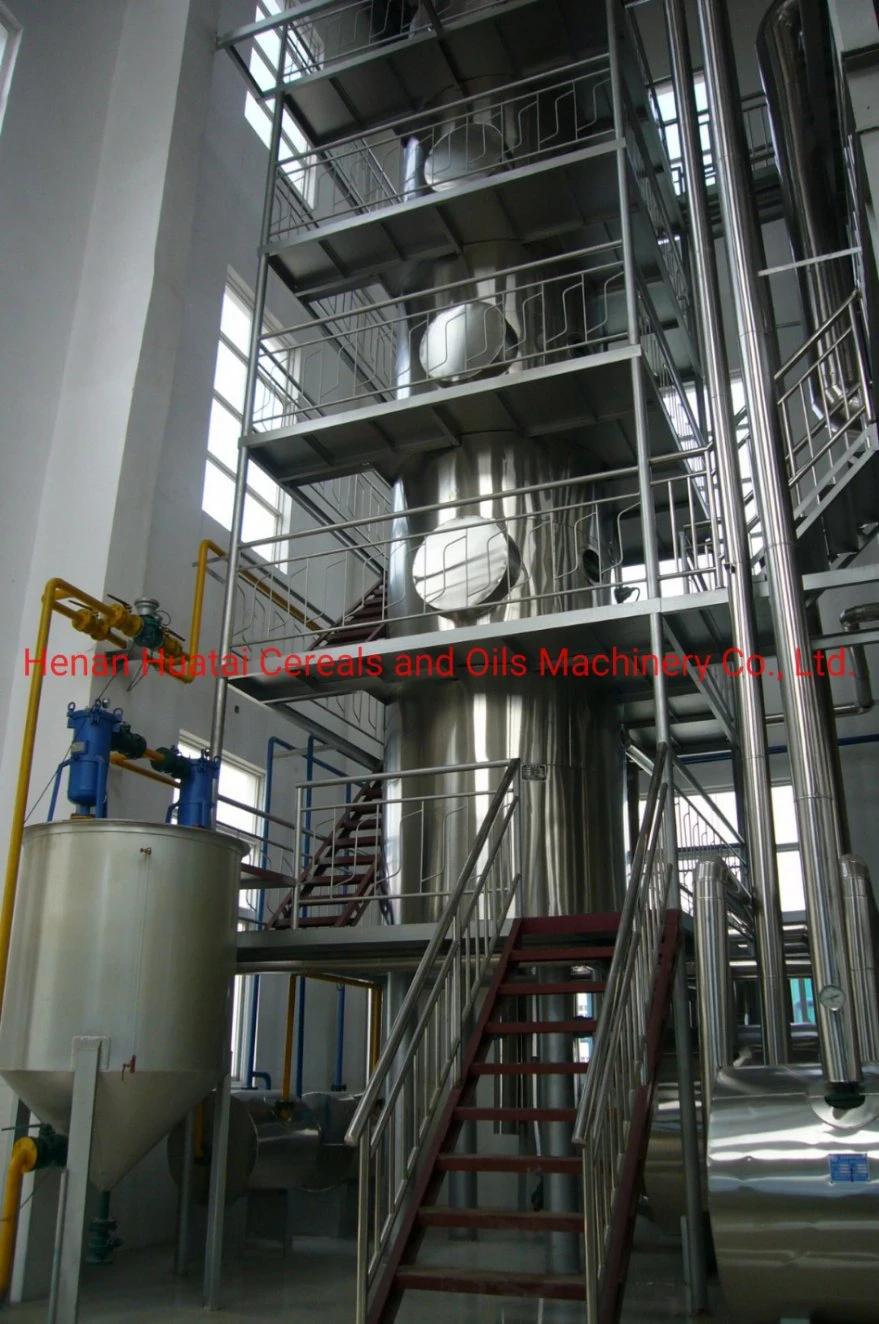

 One Corner of Oil refining workshop

Deodorization port

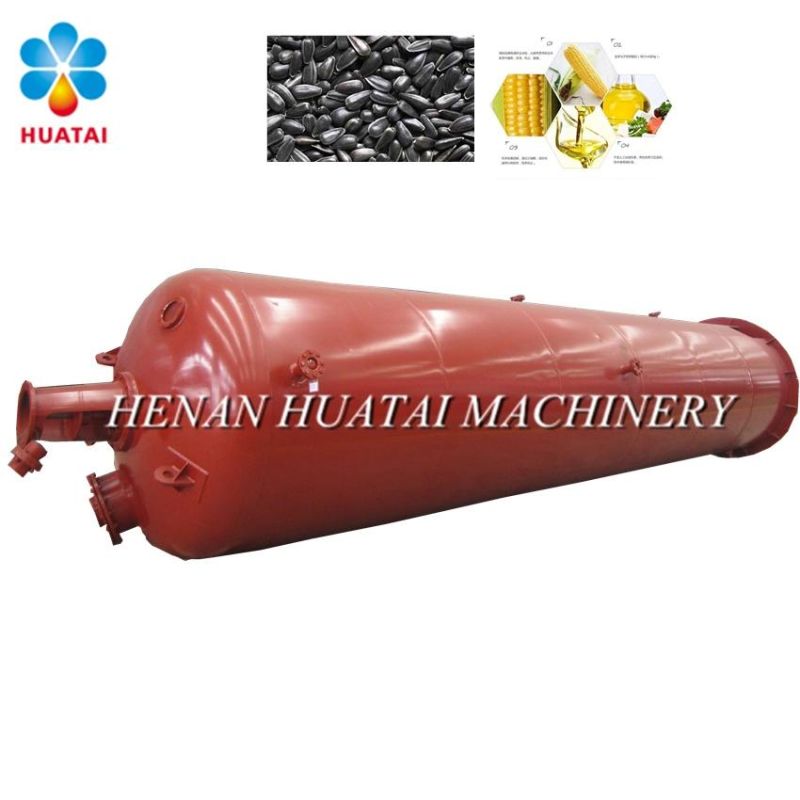

Crystallizing tank used for remove wax from oil
Below 30 ºC wax with low solubility in oil, wax precipitation grain as oil sol, has all the characteristics of colloid, so the wax content under the help of light scattering- butyl phenomenon as principle of turbidimeter measure.With the prolongation of storage time, the wax grains gradually increase and become suspended, at this time, the system becomes a coarse dispersion system - suspension, thus reflecting the instability of the colloidal system, it can be seen that wax-containing oil is both sol and suspension. The oil contains trace wax, which can increase the turbidity point, decrease the transparency and digestibility of the oil, and make the smell and palatability worse, thus reducing the edible quality, nutritional value and industrial use value of the oil. In addition, wax is an important industrial raw material, can be used to make wax paper, waterproof agent, gloss agent, etc.Therefore, the extraction of wax from oil can not only improve the quality of edible oil, the nutritional value and the quality of oily food, but also improve the industrial utilization value of oil and the comprehensive utilization of vegetable oil wax source.

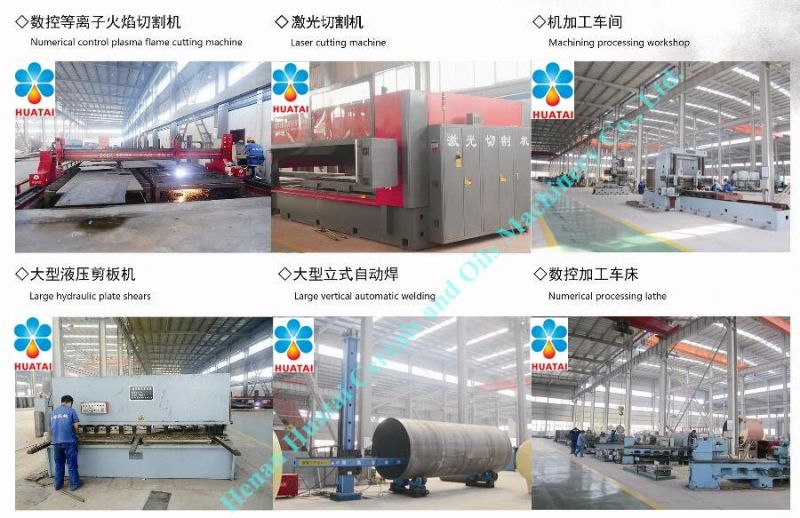

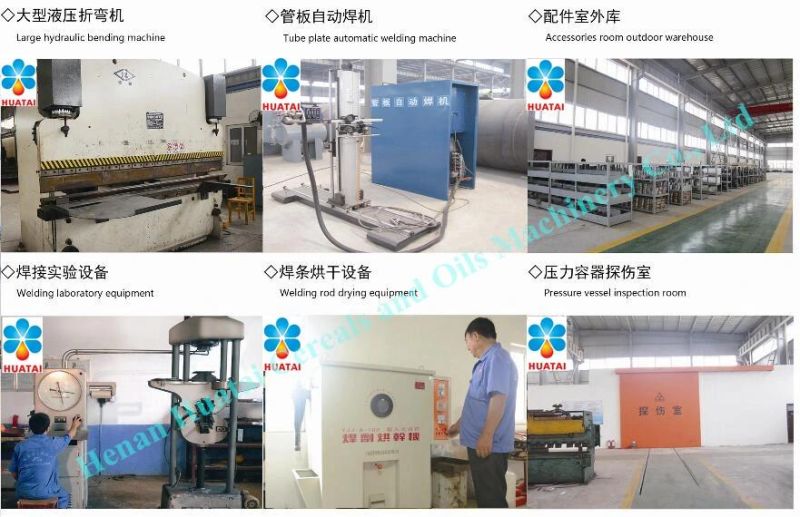

Advanced proessing workshop appliances









Parts of Huatai Oversea Projects

Country	Project Name
Australi	150T/D Vacuum Drying Equipment
Australia	100T/D High Material Layer Desolventizer
Banglades	30T/D Rice Bran Making Oil Projec
Banglades	100T/D Rice Bran Making Oil Project
Banglades	30TPD Sunflower Seed, Mustard Seed Making Oil Project,30T/D Fully Continuous Oil Refining Project
Banglades	15T/D Rapeseed Oil Refining Project
Bolivi	60T/D Soybean Oil Refining Project
Cambodi	30T/D Rice Bran Making Oil Project
Cameroo	5T/D Palm Oil Stirring Tank
Congo	0.5T/H Palm Oil Making Soap Projec
Cong	400T/D Peanut Making Oil Project
Congo	15T/H Palm Fruit Pressing, 10T/H Palm Oil Refining and Fractionation Project
Congo	5T/H Palm Fruit Pressing, 5T/D Palm Oil Refining Project
Djibout	2T/D Sunflower Oil Dewaxing Machine
Ethiopi	50T/D Soybean Oil Refining Project
Ethiopi	100T/D Corn Processing Project
Ethiopi	15T/D Peanut and Sunflower Seeds Pressing,5T/D Oil Refining Project
Ethiopi	5T/D Crude Oil Refinery Project
Ethiopia	250T/D Flax Seed Oil Making Project
Ethiopia	50T/D Soybean/Peanut oil press and 30T/D Oil Refining Project
Ethiopia	15T/DSoybean/Peanut oil press and 10T/D Oil Refining Project
Ethiopia	200T/D Palm oil Deacidification &Deodorization,100T/D Palm Oil Fraction
Ethiopia	50T/D Sunflower/Cotton Seed,Sesame Oil Press and 20T/D Oil Refining Project
Egypt	100T/D Soybean Pretreatment and Extraction Project
Egypt	20T/D Soybean Oil Refining Project
Egypt	10T/D Cottonseed Oil Refining Project
Estonia	10T/D Biodiesel Distillation Project
Ghana	20T/D Corn Flour Production Line Project
Indonesia	20T/D Coconut Oil Pressing,10T/D Oil Refining Project
Indonesia	3T/D Fragrant Sesame Oil Project
Indonesia	3T/D Oil Refining Machine
Indonesia	20T/D Maize germ oil pressing and 5T/D oil refining project
Kazakhstan	3T/D High-class Cooking Oil Refining Project
Kazakhstan	120T/D Sunflower Seed Prepressing, Extraction and Refining Project
Kazakhstan	50T/D Safflower Oil Processing Project
Russia	10T/D Rapeseed Oil Pressing Project
Russia	10T/D Sunflower/Rapeseed Oil Pressing and 3T/D Oil Refining Project
Tajikistan	50T/D Cottonseed Cake Extraction Project
Tajikistan	50T/D Cottonseed Pre-pressing Project
Tanzania	20T/D Sunflower Seeds Pressing, 5T/D Refining Project
Tanzania	10T/D Sunflower Seeds Pressing, 3T/D Refining
Thailand	10T/H Palm Oil Renovation Project
Thailand	45T/H Palm Fruit Sterilization Tank
Thailand	2T/D Palm Oil Refining Project
The Philippines	30T/D Corn Germ Pressing and Refining Project
The Philippines	15T/D Corn Processing Project
Turkmenistan	50T/D Sunflower Seed Pretreatment,30T/D Extraction and 20T/D Refining Project
Ukraine	30T/D Sunflower cake Extraction Project
Ukraine	50T/D Sunflower cake Extraction Project
Uzbekistan	80T/D Sunflower Seed Cake Extraction,50T/D Sunflower Oil Refining Project
Uzbekistan	50T/D Sunflower Seed,Soybean,Cottonseed Making Oil Project
Uzbekistan	100T/D Sunflower Seed Prepressing, Soybean Pretreatment, 100T/D Micro-negative Pressure Extraction and 20T/D Grade 1 Oil Refining Projec
Uzbekistan	100T/D Sunflower Seed Cake Extraction,30T/D Semi-cotinuous Sunflower Seed Oil Refinery and Dewaxing Project
Uzbekistan	100T/D Sunflower Seed Cake Extraction,50T/D Sunflower Seed Oil Refinery Project
Uzbekistan	30T/D Sunflower Seed Oil Processing 10T/D Oil Refining Project
Uzbekistan	100T/D Sunflower Seed Oil Processing 80T/D Extraction Project
Uzbekistan	50T/D Sunflower Seed Pre-press, 50T/D Extraction and 30T/D Refining Project
Uzbekistan	20T/D Sunflower Cake Extraction,2T/D Sunflower Oil Refinery Project
Uzbekistan	40T/D Sunflower and Cottonseed Oil Dewaxing Project
Uzbekistan	50T/D Sunflower Seed,soybean  Pre-press, 50T/D Extraction and 20T/D Refining Project
Uzbekistan	30T/D Sunflower Seed Pre-press, 20T/D Extraction and 10T/D Refining
Uzbekistan	100T/D Sunflower Seed Pre-press, 80T/D Extraction and 40T/D Refining and Dewaxing Project
Uzbekistan	80T/D Sunflower Cake ,Soybean Flakers Extraction Refining Project
