• Model NO.：MM-823
• Application：Biscuit
• Customized：Customized
• Voltage：380V
• Power：9kw
• Weight：1800kg
• Speed：120-630 PCS,Min
• Transport Package：Wooden Box
• Specification：2300*500*1700mm
• Trademark：KEYFOOD
• Origin：Shanghai China
• HS Code：84381000

Basic Info.

Model NO. MM-823 Application Biscuit Customized Customized Voltage 380V Power 9kw Weight 1800kg Speed 120-630 PCS/Min Transport Package Wooden Box Specification 2300*500*1700mm Trademark KEYFOOD Origin Shanghai China HS Code 84381000

Product Description

Description:
This machine is designed to make biscuit sandwich. With high speed and automatic equipment, this machine can make kind of biscuit sandwich products, like double flavor sandwiches filled with cream and jam or chocolate. Based on Japan technology, the machine is ideal equipment for making sandwich biscuits of high quality.
There are sensors to detect the feeding of top and bottom biscuit, if the top or
bottom biscuit are not be detected, the pneumatic valve will block the cream, the machine will keep on running, once the bottom
biscuits is detected, the pneumatic valve will release the cream again.
Brush Cleaner: Rotary brush roller cleans the pushers.
An air blowing nozzle will dry them.
Reclaiming: Bottom of the main machine equip with trolley, easy for scrap reclaiming and cleaning.
Cream Hopper is separated with the main machine; use jacket pipe to feed cream to the main machine.
Jacketed hopper with constant temperature device, 400L total capacity hopper
Special designed agitator and rotor pump (SUS304); feed to stencil head
Stencil head (with constant temperature device), consists of stator, rotor, and mould ring, made of SUS304.
Different size biscuit need to change the mould ring.
Speed of cream feeding can be adjusted individually or combined with main machine.

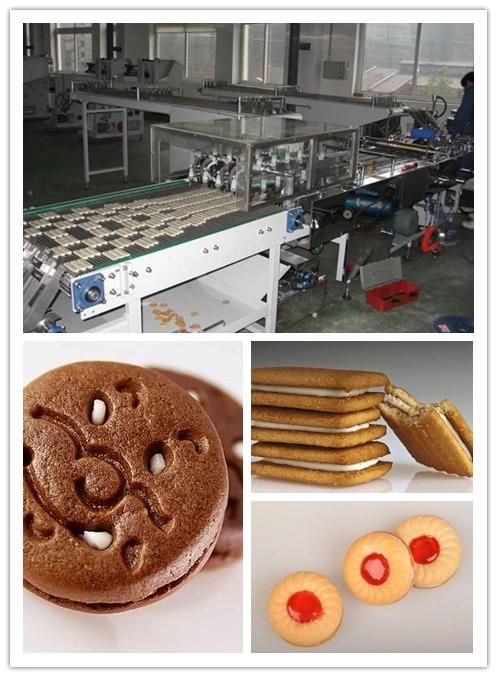

Machine & product photos:

Technical Parameters:

Model	MM-824	MM-823
Output	120-630 pcs/min	250-1200 pcs/min
Floor space	15m2	17m2
Power	9kw	9kw
Voltage	380V/50hz	380V/50hz
Size	2300*500*1700mm	2600*600*1700mm
Weight	1600kg	1800kg
