Product Description

magnet drum separator for ferrous items removing from granular or mealy products.

Application of Magnetic drum separator

Drum Separators remove both large and small pieces of iron contaminants from material processing lines.They  offer automatic separation of magnetic particles for higher levels of purity in such flour milling, in oil mills and food, grain, plastics, metals, and other areas involving similar products of tramp iron from heavy flows of bulk materials, including large and highly abrasive materials.

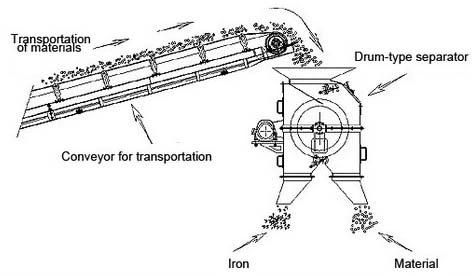

Advantage of using such tool is that it saves the valuable equipment like grinders, crushers, rolls, etc. against tramp iron. We design our magnetic drum type separator in such a way that it can be installed inside closed chutes, at outlets of chutes and hoppers, or where materials discharge from feeders and conveyors.

We produce two types of magnetic drum types seperators: Double drum and triple drum magnetic separators which are ideal for separating ferrous metal from material such as shredded cars, slag, crushed ore and ash at mass burn plants, in foundries recycling plastic, aluminum and glass. Ferrous metal is magnetically drawn out of the material feed, held against the revolving shell, and released when it reaches a discharge point beyond the magnetic field.

Working principle

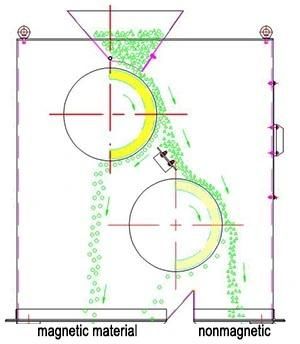

When material flows onto the drum, a stationary magnetic assembly inside the unit's shell captures tramp metal and holds it securely to the drum's stainless steel surface. With contaminants removed, the good product falls freely to a discharge point. As the drum rotates, cleats sweep the ferrous debris through and out of the magnetic field. The tramp metal is discharged separately, creating continuous self-cleaning separation.




Features of magnetic scrap separator drum
1.Available both with ferrite and neodymium magnets (Nd-Fe-B).the maximal magnetic intensity could reached 11000Gs .
2.Designed with the upper system of product feeding through the reception bunker or with help of vibrating feeder.
3.Components of the world leading companies (Nord, SKF) are used, provide high performance characteristics.
4.Unique design available due to customers' requirements.

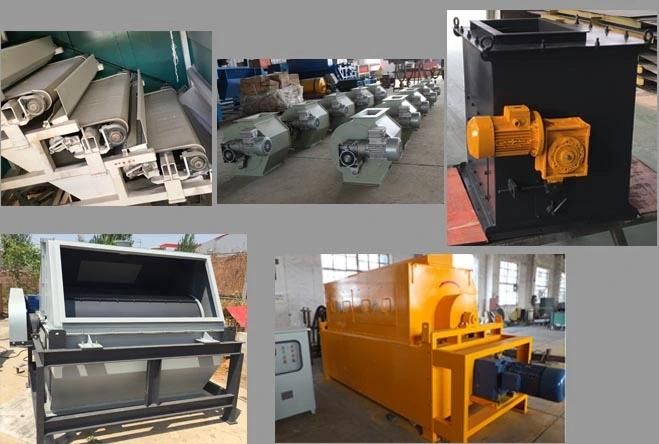

Similar permanent totating drum magnetic separator for dry products processling


Packing and delivery of High Intensity Automatic Drum Magnet


As one professional magnetic equipment manufacturer , we having focus on various metal solution since 2006.  if having any inquire in metal  problem  , please feel free contact with us
