• Bottle Size：Customized
• Dimension：Customized
• Suitable：Pure Warter, Mineral Water
• PLC：Mitsubishi
• Structure：Rotary
• Filling Principle：Atmospheric Pressure
• Transport Package：Wooden
• Trademark：NANCHENG
• Origin：China
• HS Code：8422303090
• Production Capacity：10 Set Per Month

Basic Info.

Bottle Size Customized Dimension Customized Suitable Pure Warter/ Mineral Water PLC Mitsubishi Structure Rotary Filling Principle Atmospheric Pressure Transport Package Wooden Trademark NANCHENG Origin China HS Code 8422303090 Production Capacity 10 Set Per Month

Product Description

Company Introduction

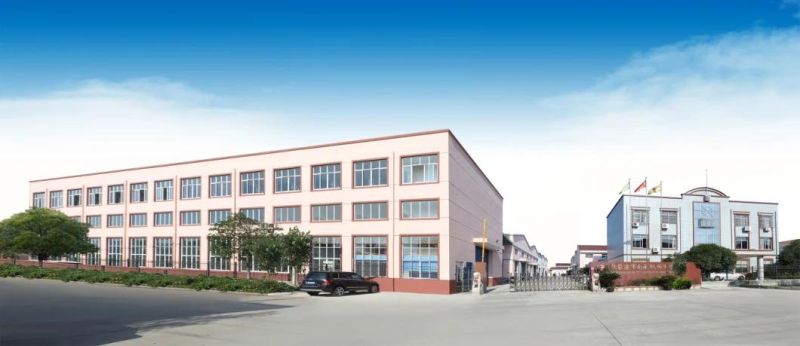

Nancheng Machinery Co., Ltd. locates in Zhangjiagang city which is close to Shanghai and Wuxi.   Our company covers  20,000 square meters. Supported by strong designing & developing facilities and professional technical team, we are of fully capability in research and development, manufacture and after-sale service. We never stop introducing the most advanced packing technology, developing and better our products, focusing on the reliability of overall performance; these ensure us unique competitive advantages.
       The main business of our company concentrates on Water Treatment Equipment and packaging products for various commercial fluids, including drinking water, carbonated beverages, juice, tea and alcohols. We are popular with both domestic customers and overseas clients for the reliability and high quality of our products.

The quality .the service,there's no end.





Technical Parameters


Model	Capacity (B/h on 500ml)	Total power (KW)	Dimension (LxWxH)mm	Total weight (KG)
NC8-8-3C	2000	3.0	2000x1500x2200	1850
NC12-12-5C	3000	4.3	2200x1600x2200	2200
NC18-18-6C	6000	4.8	2500x1750x2200	2600
NC24-24-8C	10000	5.6	2950x2150x2200	2900
NC32-32-10C	13000	8.2	3720x2800x2200	3500
NC40-40-12C	16000	9.5	4180x3200x2200	4500
NC50-50-12C	20000	11	4720x3550x2750	5800
NC60-60-15C	24000	13	6000x5450x2750	6800








Main features:

1). This machine operates easily, with compact structure, perfect control system and high level of automation.
2). The filling process of different types of bottles can be reached only by changing the star-wheel
3). The parts contacting with product is made of quality SUS, anti-corrosive, and easy to clean.
4). By adopting high speed filling valve, the liquid level is precise and no waste is to increase. That guarantees the demand of modern filling technology.

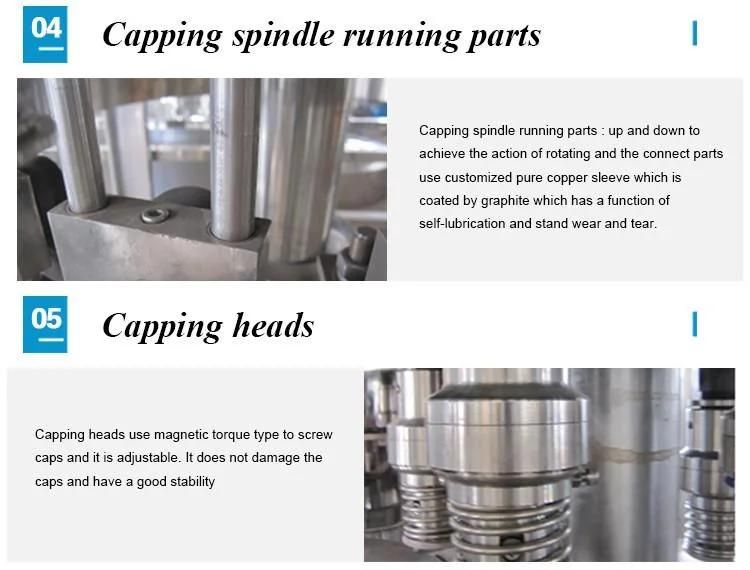

5). The capping head adopts constant torque magnetic device to guarantee capping quality, without any damage to the cap.
6). This machine has a highly efficient cap arranging system, perfect cap feeding and protection device.
7). By adopting overload protection system, it can ensure the protection of safety of the operator and equipment.
8). The operating system bears the function of production speed control, cap-shortage checking, production suspension when bottles-blocked, and counting of outputs.
9). The electric equipment and pneumatic parts are of brand name of the world.

Details Show



Certifications




Exhibition
