• Model NO.：KSD - ST Belt
• Standard：Oem′s Standard, Fit Exicting Systems
• Tier Height：80mm, 90mm, 100mm, 120mm, 150mm, 180mm, 220mm
• Turn Capacity：Clockwise(Cw) or Counter-Clockwise(Ccw)
• Turn Ratio：1.7 for Standard Duty, 1.9 for Heavy Duty (by Turn
• Transport Package：Plywood Box
• Specification：OEM′s standard
• Trademark：KENSIDE
• Origin：China
• HS Code：84389000
• Production Capacity：5000meters,Month

Basic Info.

Model NO. KSD - ST Belt Standard Oem′s Standard, Fit Exicting Systems Tier Height 80mm, 90mm, 100mm, 120mm, 150mm, 180mm, 220mm Turn Capacity Clockwise(Cw) or Counter-Clockwise(Ccw) Turn Ratio 1.7 for Standard Duty, 1.9 for Heavy Duty (by Turn Transport Package Plywood Box Specification OEM′s standard Trademark KENSIDE Origin China HS Code 84389000 Production Capacity 5000meters/Month

Product Description

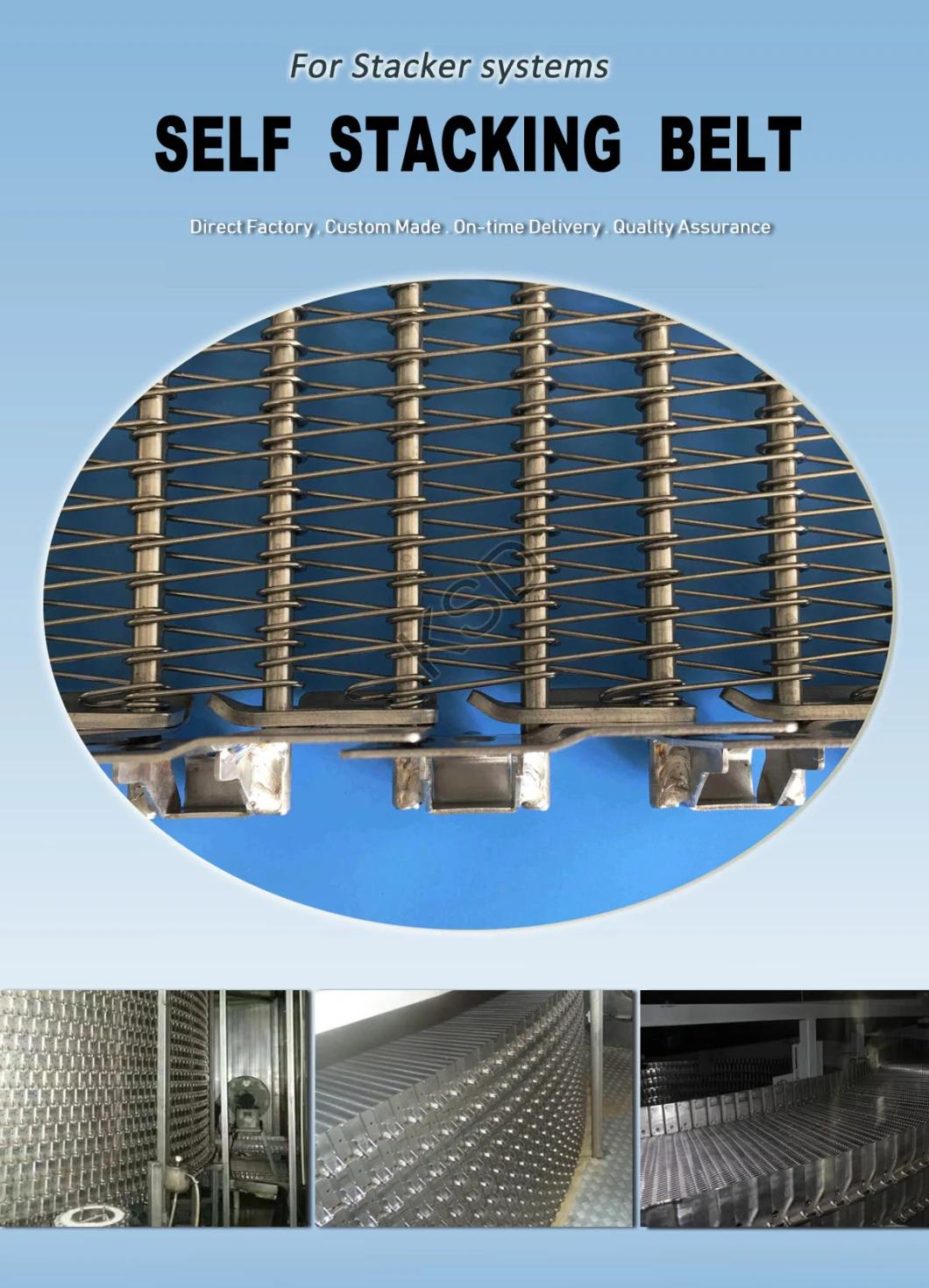

Heavy Duty Self-stacking Spiral Belts For Food Processing Freezer
    Self stacking belt is a popular conveyor belt for food processing industry. It is designed for the OEM's compact stacker systems / self stacking spirals, which provide fast, efficient food processing such as freezing, cooling and proofing in a small footprint space.

    Self stacking belt is made of food grade stainless steel material 304 or 316, designed to fit customer's existing systems, available in all standard belt widths, tier heights and mesh sizes, can be spliced for sectional or complete belt replacements, no need to modify the current drive systems. With all parts - links, rods, mesh in food grade stainless steel, it is hygienic and safe for all your applications.



Product Specifications:


Material	food grade stainless steel 304 / 316
Overall Width	420mm, 510mm, 580mm, 640mm, 660mm, 760mm, 920mm, 1060mm
Rod Diameter	5mm, 6mm, 7mm
Pitch	rod pitch is 30mm, link pitch is 59.9mm
Wire Diameter	1.6mm, 1.8mm
Wire Pitch	6mm, 9mm, 13mm, 20mm or customized
Tier Height	60mm, 80mm, 90mm, 100mm, 120mm, 150mm, 180mm, 220mm
Turn Capacity	Clockwise(CW) or Counter-clockwise(CCW)
Turn Ratio	1.7 for standard duty, 1.9 for heavy duty (by turn radius/belt width)

Our Advantages:
1. A variety of configurations are available
2. Specifications conform to international standards for self stacking systems
3. No need to change the existing drive system, part or whole belt can be replaced at any time
4. Competitive price, fast delivery with good packing
5. With rich manufacturing experience, belt with customer's logo printed on links is available

Product Details:

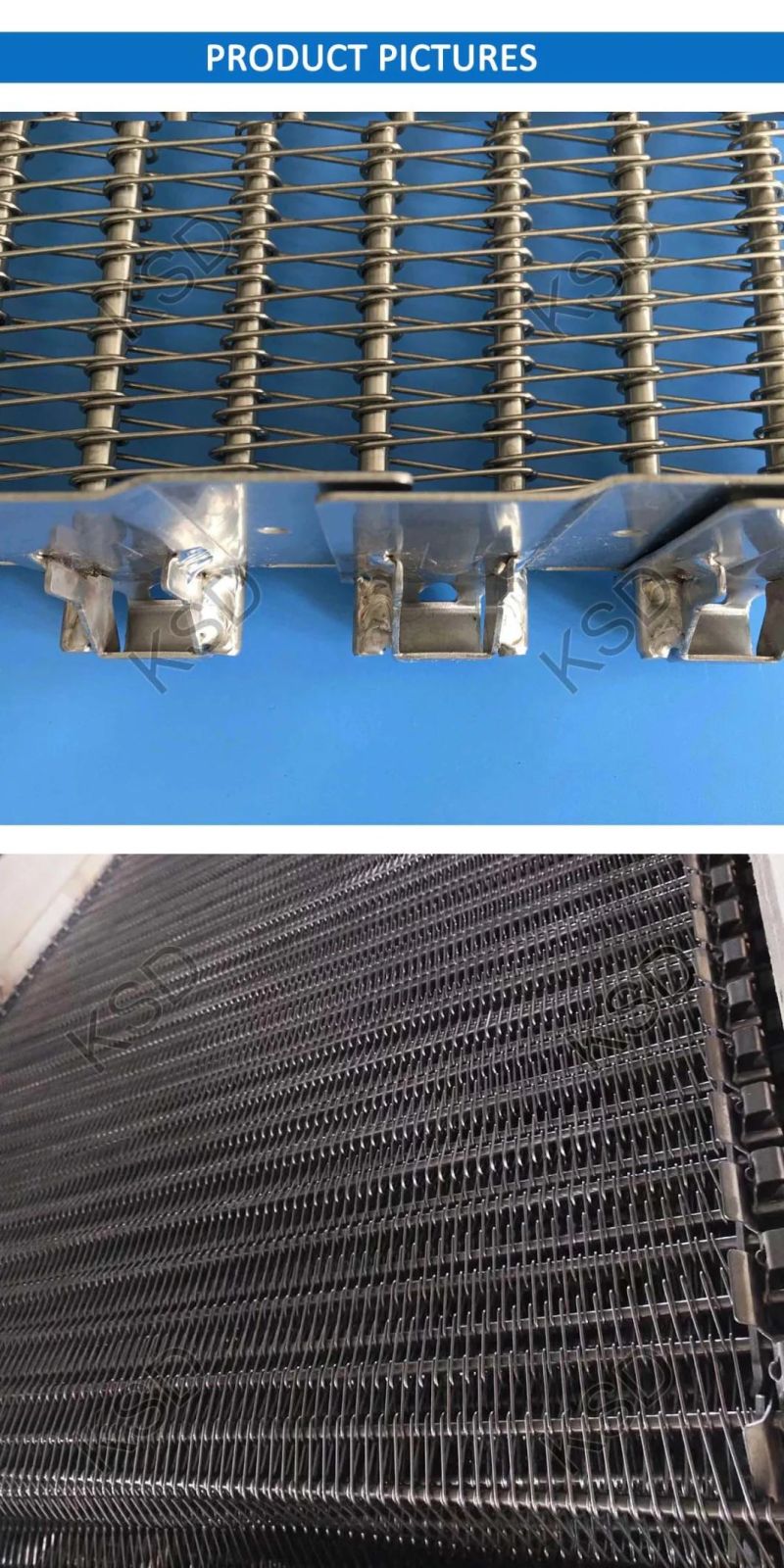

Product Pictures:

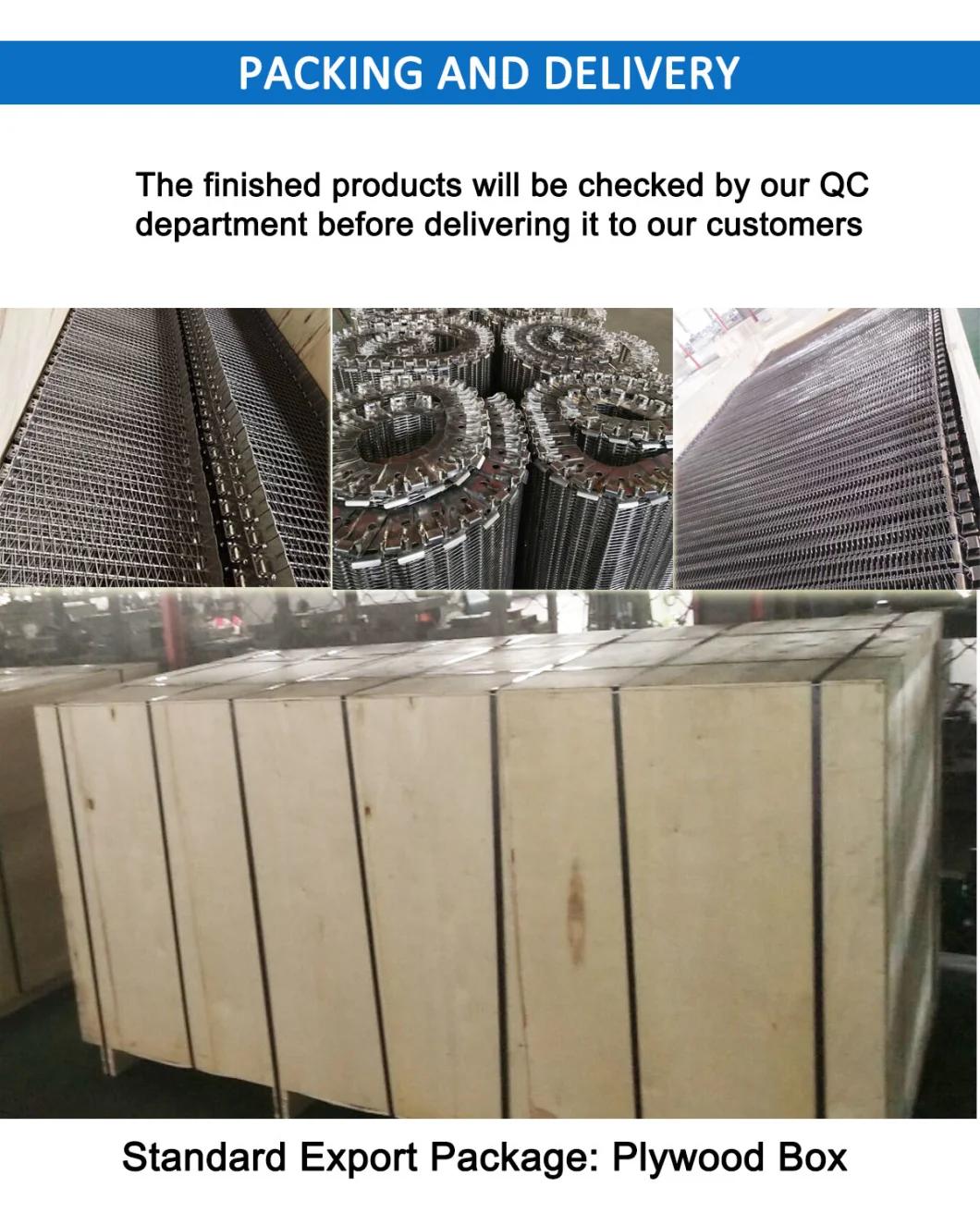

Product Packing:

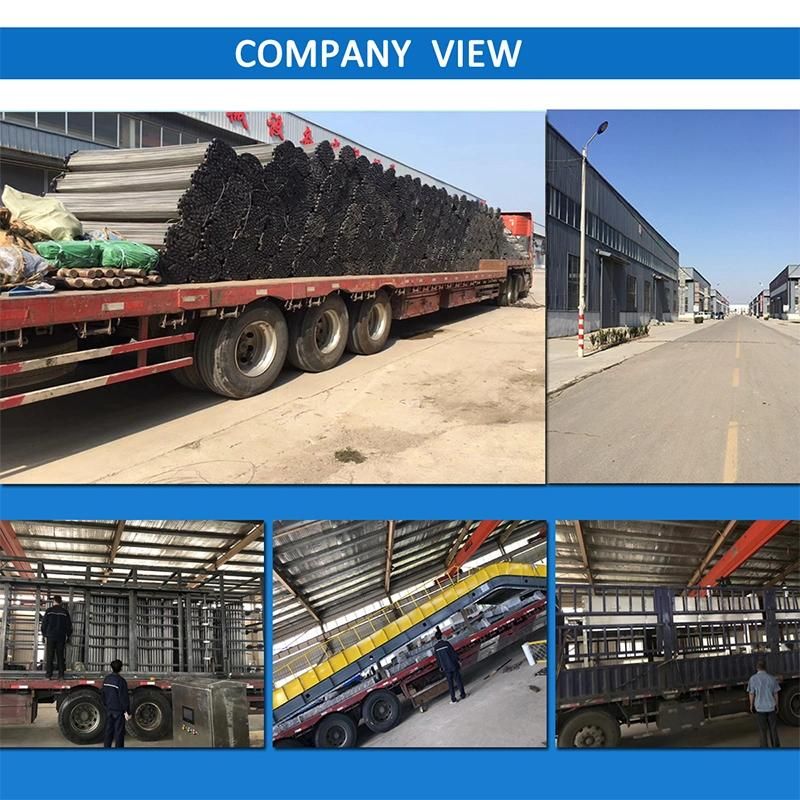

Company View:


Founded in 2001, Shandong Kenside Machinery Manufacturing Co., Ltd. is a production manufacturer specializes in R&D, production and sales of metal conveyor belt. It is committed to producing durable and reliable quality conveyor belts, and provide customers with a full range of conveying solutions.

There are several laser cutting machines, high precision punching machines, CNC mesh belt molding machines and other advanced equipment in factory, and it passed the ISO9001 quality management system certification. Main products are - flat flex belt, spiral belt, self stacking belt, plate belt, eye link belt, flat wire belt, chain driven belt, compound balanced spiral belt, rolled baking oven belt and so on. Its products are focused on the food processing industry, and also other industries - textiles, electronics, chemicals, printing and dyeing, automobiles and many others.

It is located at the town of metal conveyor belt - Dezhou, China. With workshop covers an area of more than 16, 000 square meters, there are more than 10 engineers, 100 employees and workers at the factory. Its products are sold well in more than 30 countries and regions, such as EU, North America, Southeast Asia, Japan, South Korea, Australia, New Zealand, etc.

Our aim is - 'Superior to domestic and international factory control standards, to meet customers' expectations and requirements of product quality'

Welcome customers and friends from all over the world to visit us!
