• Model NO.：HL-300
• Principle：Rotary
• Structure：Tank Type
• Operation：Continuous
• Energy：Heat Sterilization
• Property：Physical Sterilization
• Type：Induction Electronics Sterilization Equipment
• Material：Stainless Steel 304
• Voltage：220V,380V
• Size：1140*1140*1900mm
• Tank Size：800-600-2
• Power：20kw
• Heating Area：1.6m³
• Mixing Motor：0.55kw
• Rotate Speed：36r,Min
• Pressure：0.09MPa
• Insulation Materials/Thickness：Aluminum Silicate,65mm
• Transport Package：Standard Wooden Case
• Specification：300L
• Trademark：hongle
• Origin：China
• Production Capacity：300L

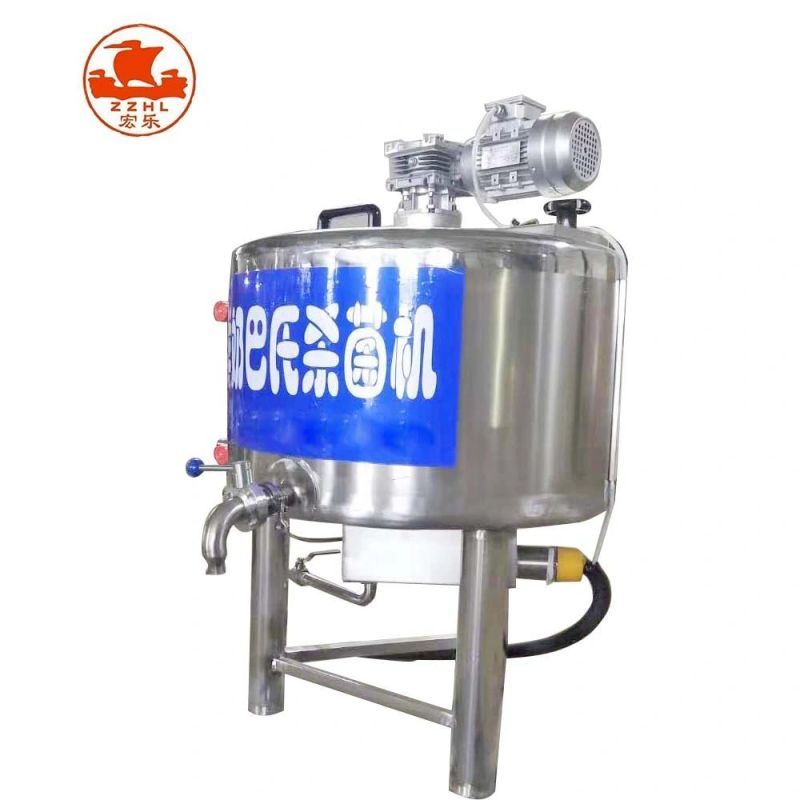

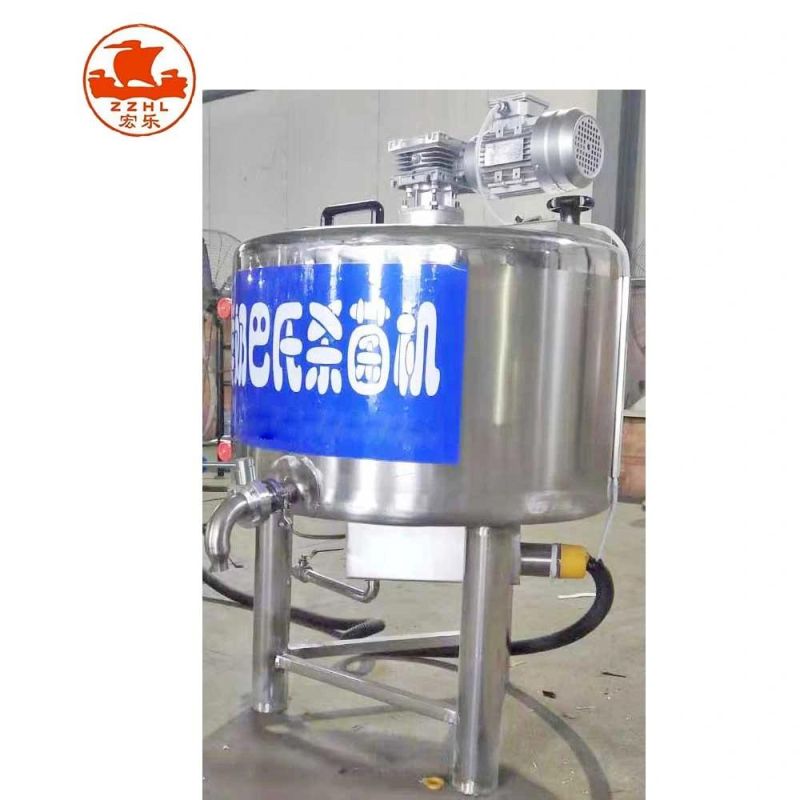

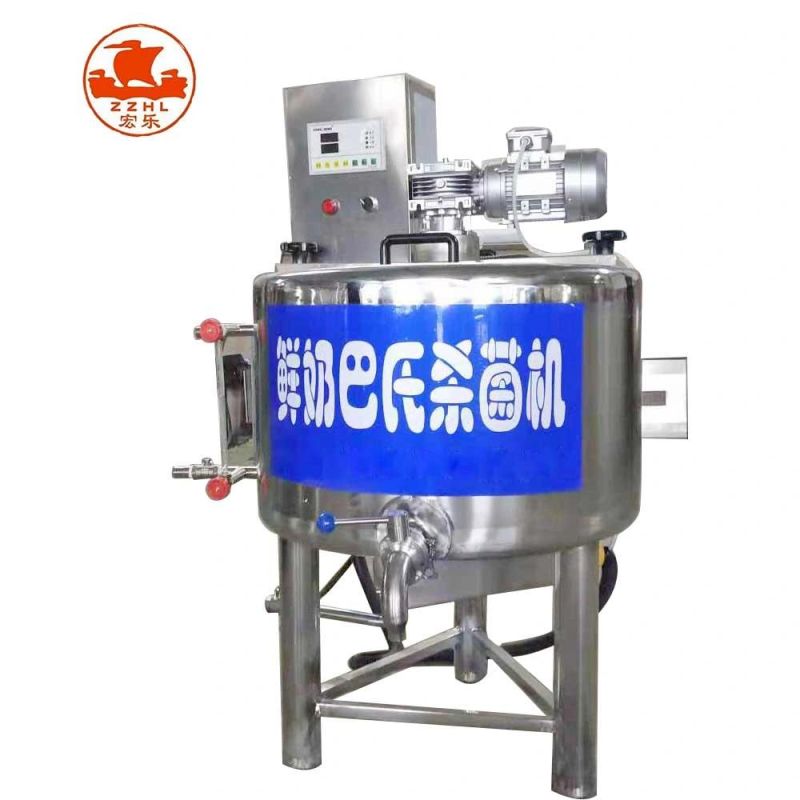

Machine Introduction :Electric heating Pasteur sterilization machine with the feature of the high temperature resistance, corrosion resistance, strong production capacity, no need steam heating etc, and is mainly used for milk, medicine, beverage, scientific research and industry departments. Pasturing machine consists of pot body, pot, mixer, heating jacket, supporting and transmission device, the shaft sealing equipment etc. Pot body, pot, mixer, and shaft seal, electric heating device etc all made of by 1 Cr18Ni9 (USU304) stainless steel. The pot body connects with pot cover; at the bottom of pot body have feeding hole, with agitator in the machine. The heating jackets have feeding, temperature measurement, emptying valve, electric heat stick etc.

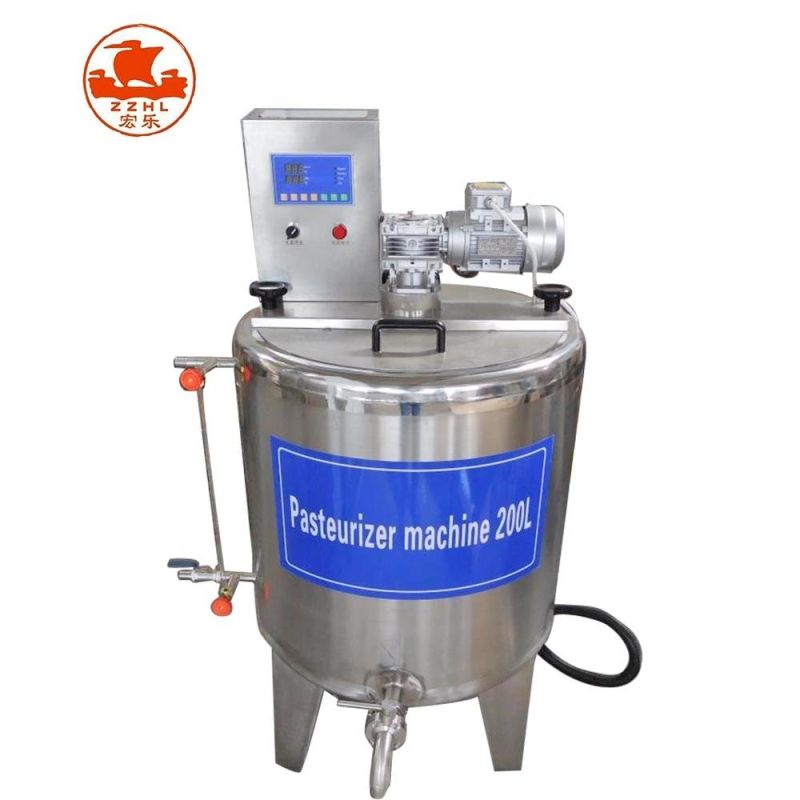

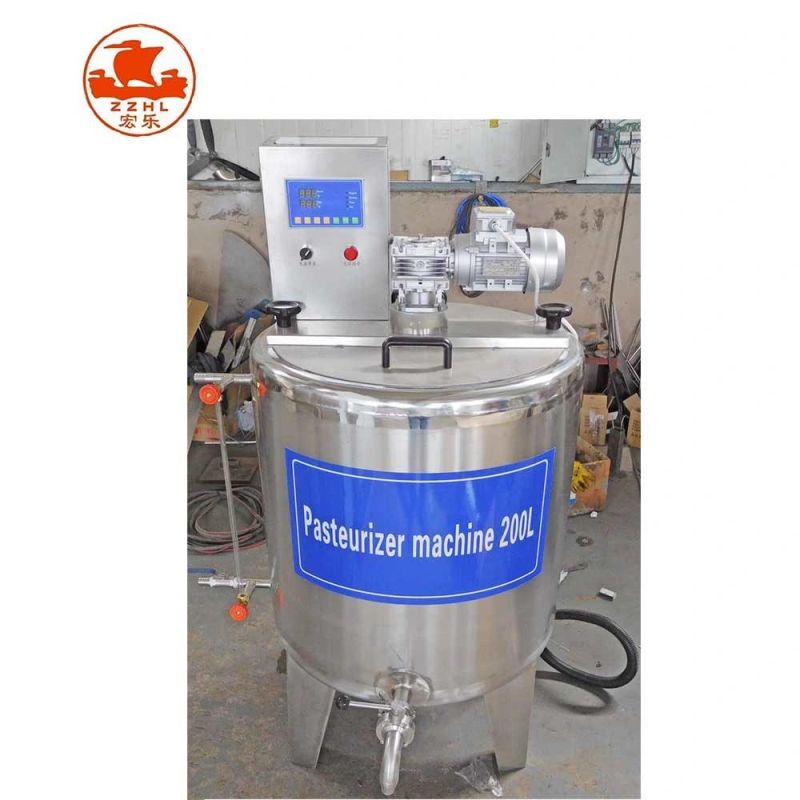

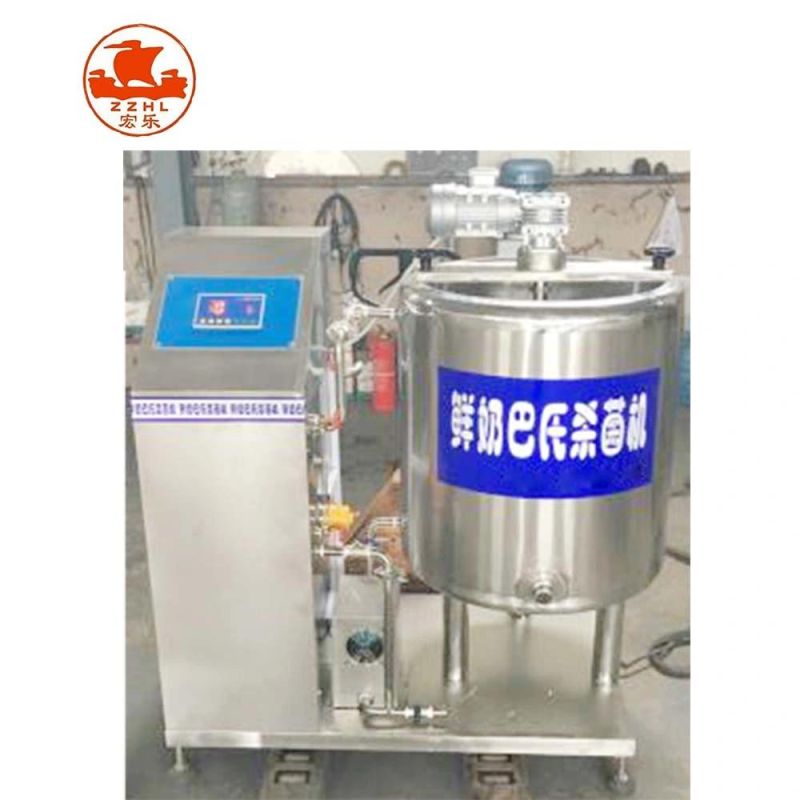

Detailed Images
