• Model NO.：CT
• Capacity：100-400kg,Batch
• Motor：1.1-1.8kw
• Consumption of Steam：20-72kg,H
• Tray Number：48-192PCS
• Dimension：4460X2200X2290
• Trolley Number：2-8
• Weight：1200-2800kg
• Material：Stainless Steel
• Transport Package：Wood Case
• Specification：2430X1200X2375mm
• Trademark：no
• Origin：China
• HS Code：76000
• Production Capacity：5000

Basic Info.

Model NO. CT Capacity 100-400kg/Batch Motor 1.1-1.8kw Consumption of Steam 20-72kg/H Tray Number 48-192PCS Dimension 4460X2200X2290 Trolley Number 2-8 Weight 1200-2800kg Material Stainless Steel Transport Package Wood Case Specification 2430X1200X2375mm Trademark no Origin China HS Code 76000 Production Capacity 5000

Product Description

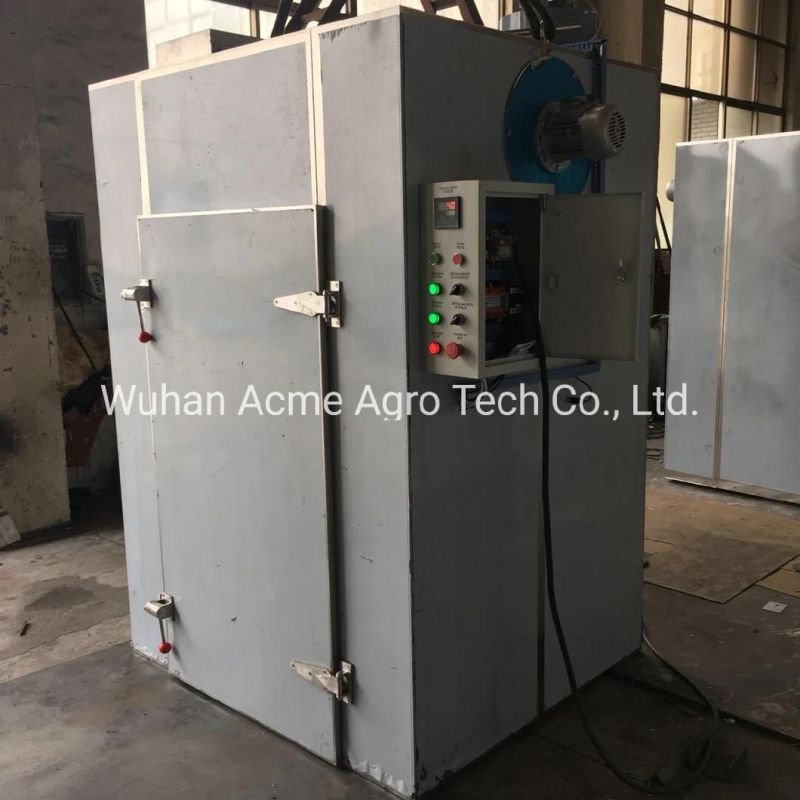

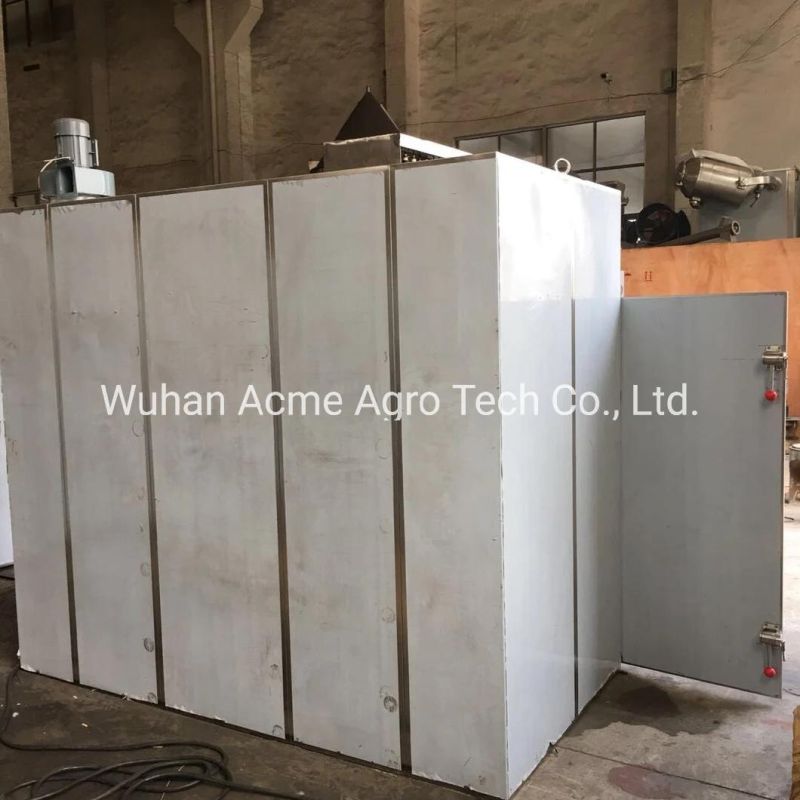

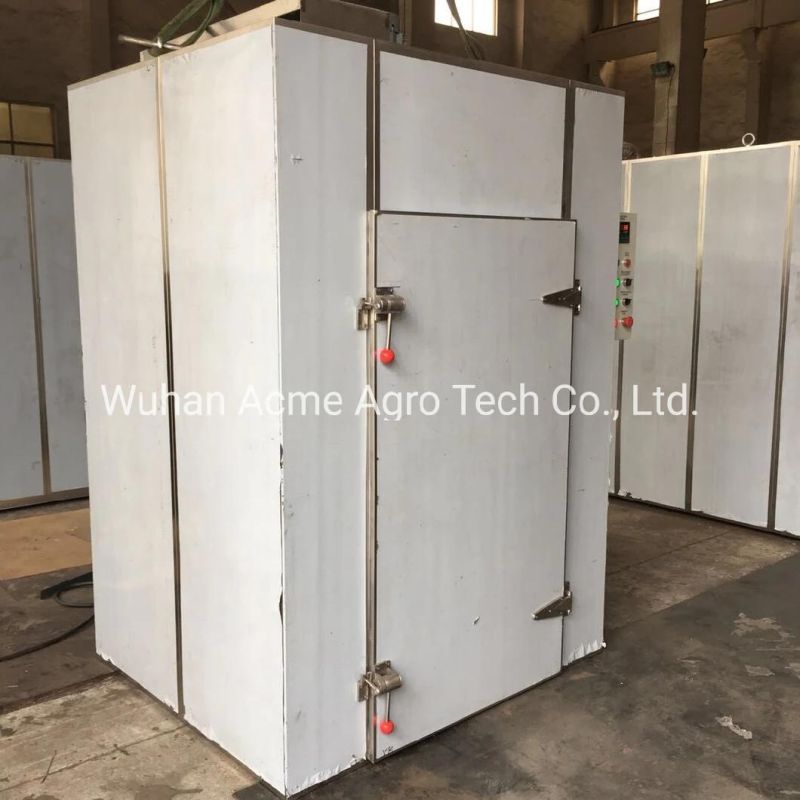

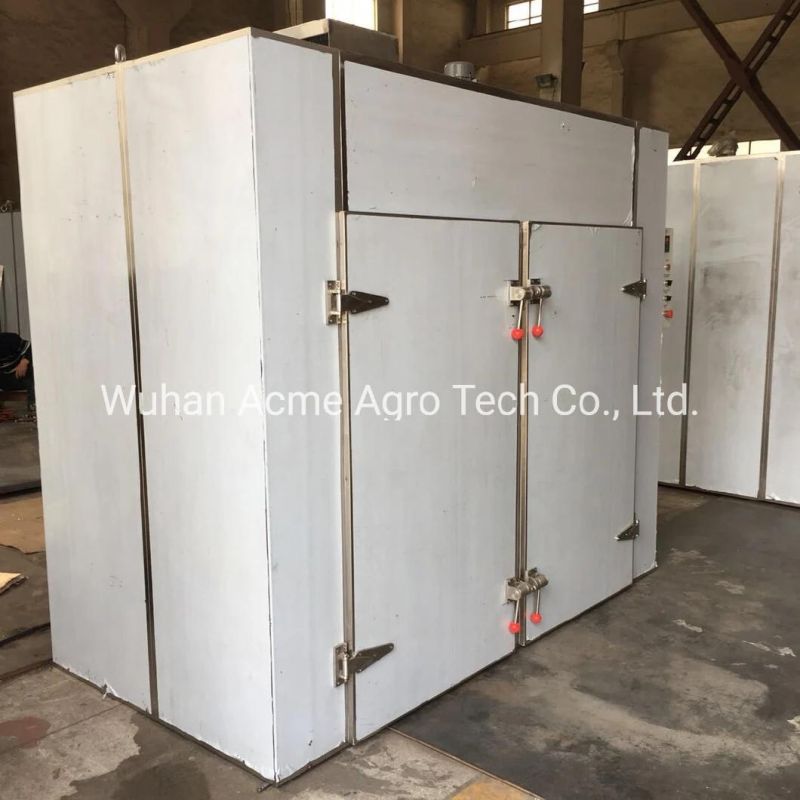

dryer for fruit andvegetable
Introduction:
Nearly all hot air cycle within baker, high heating efficiency, energy saving.
Utilizing forced heat air cycle within baker, without air separating plate, material can be dried uniformly. vapor, heat water, powder, FRI all can be used as heating resources.
Low noise, steady operation; temperature auto adjustment; easy access to temperature control, repair and maintenance.
Various application; all kinds of materials drying; one of most common drying equipment.

Feature:
Heating source: Vapor, Heat conductive oil, hot water, electric heating pipe, FRI etc.
Operation temperature: Vapor heating ambient temperature ~140ºC, Max 150 ºC.
Electric, FRI, ambient temperature~350 ºC.
Auto-control system and computer control system as option.
Common vapor pressure 0.2~0.8MPa.
Electro-heating (type 1)15kw.
Special requirements should be indicated while ordering.
No standard baker can be produced based on process parameter.
Operation ambient temperature exceed 140 ºC or less than 60 ºC should be marked out while ordering.

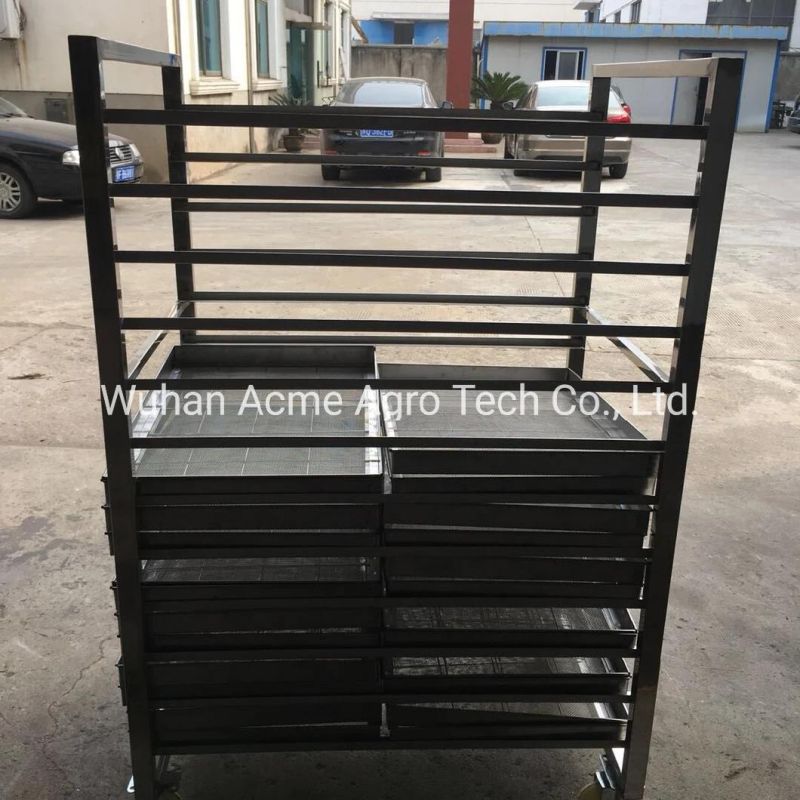

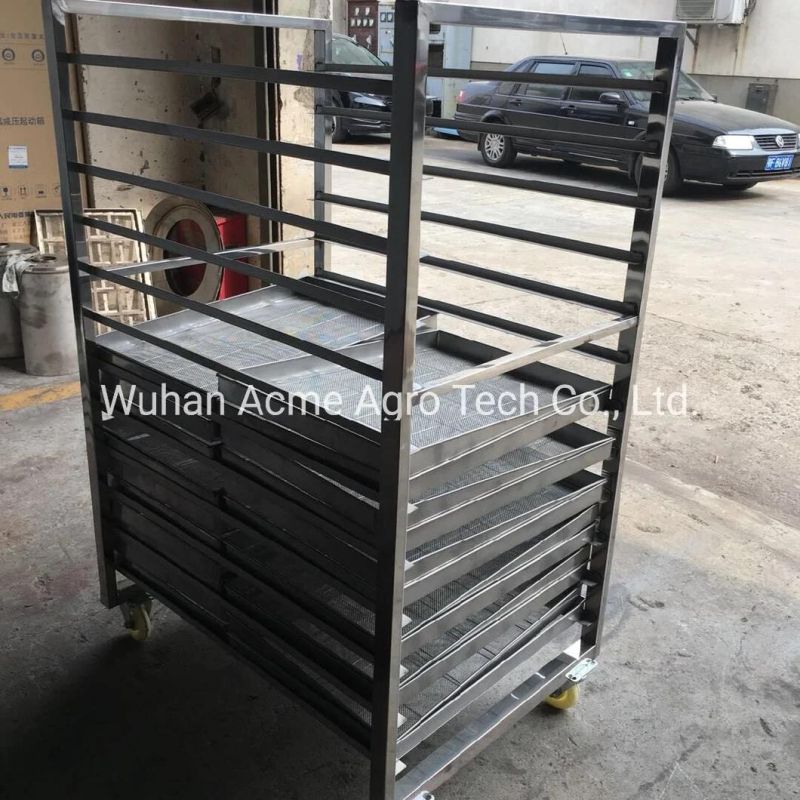

Bake vehicle and tray's dimension are standard, changeable.
Bake tray dimension:460×640×45mm

Application:
Heat wind cycle baker can be used as drier of medicine, chemistry, food, agricultural and sideline products, sea food, light and heavy industries, such ad raw material medicine, Chinese herb, Chinese herb pill, extractum, powder, electuary. packing bottle, dye, paint, dehydration vegetable, fruit and nut, banger, plastic epoxy and components, bake paint etc.


Model	capacity            kg/batch	Power(kw)	Consumption of steam (kg/h)	NO. of tray	dimension (mm)	No. of trolly	Weight(kg)
CT-I	100	1.1	20	48	2430X1200X2375	2	1200
CT-II	200	1.1	40	96	2430X2200X2433	4	1500
CT-III	300	2.2	60	144	3430X2200X2620	6	2000
CT-IV	400	2.2	80	192	4380X2200X2620	8	2300
CT-C-O	50	0.45	10	24	1400X1200X2000	1	1100
CT-C-I	100	0.45	18	48	2300X1200X2000	2	1500
CT-C-II	200	0.9	36	96	2300X2200X2000	4	1800
CT-C-III	300	1.35	54	144	3300X2200X2000	6	2200
CT-C-IV	400	1.8	72	192	4460X2200X2290	8	2800
