• Trademark：chengli
• Model NO.：fta
• Origin：China
• Production Capacity：100kg,H to 500ton Per Day

Basic Info.

Model NO. fta Trademark chengli Origin China Production Capacity 100kg/H to 500ton Per Day

Product Description

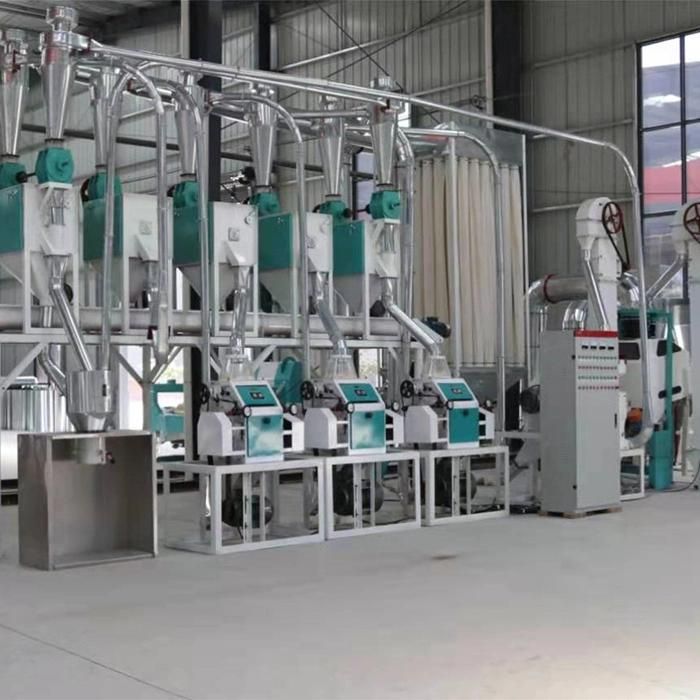

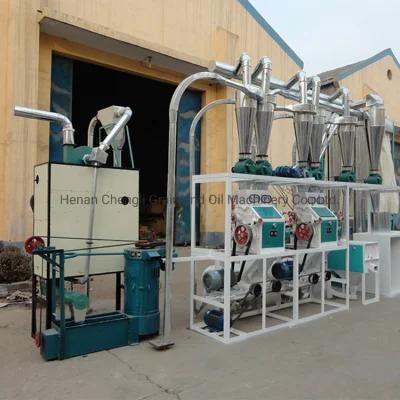

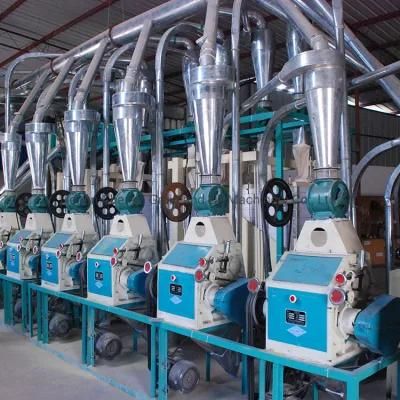

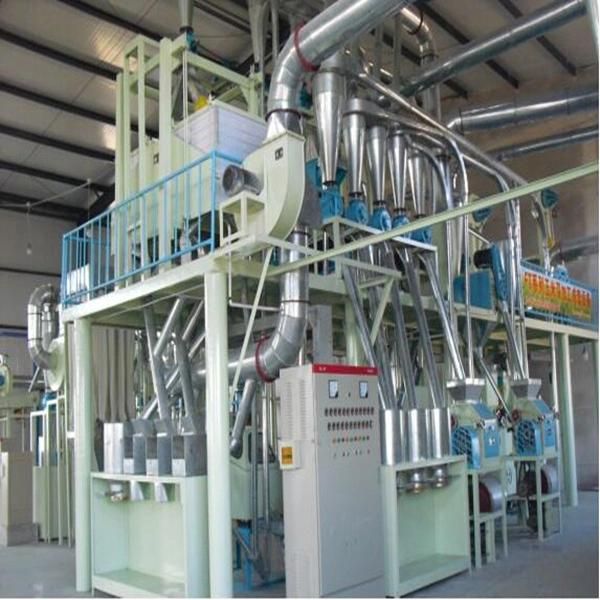

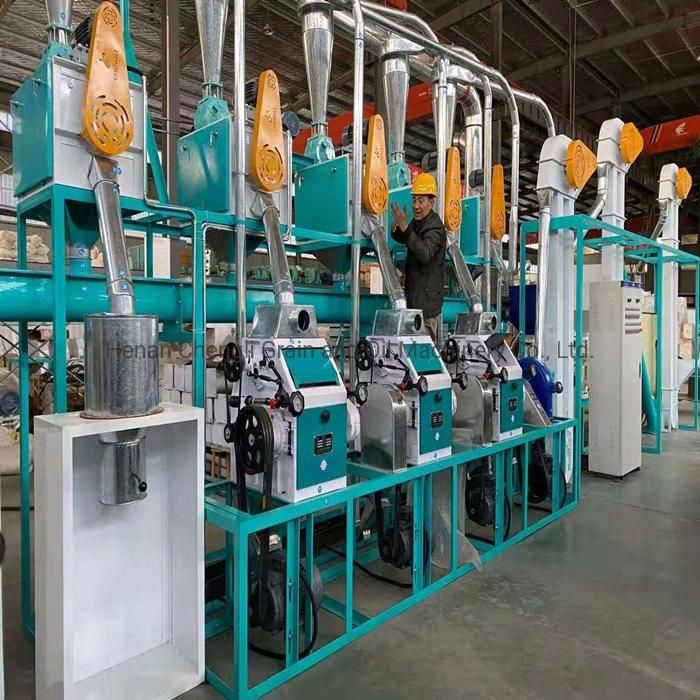

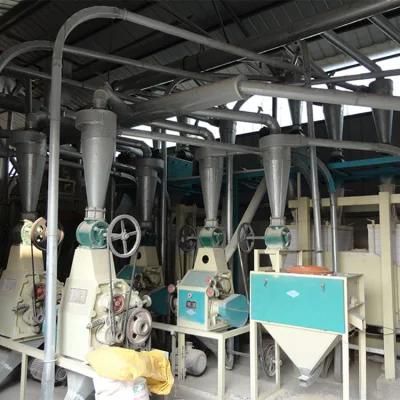

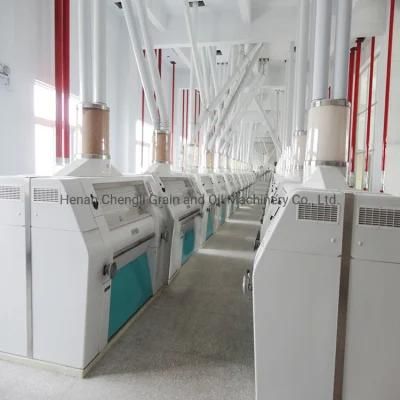

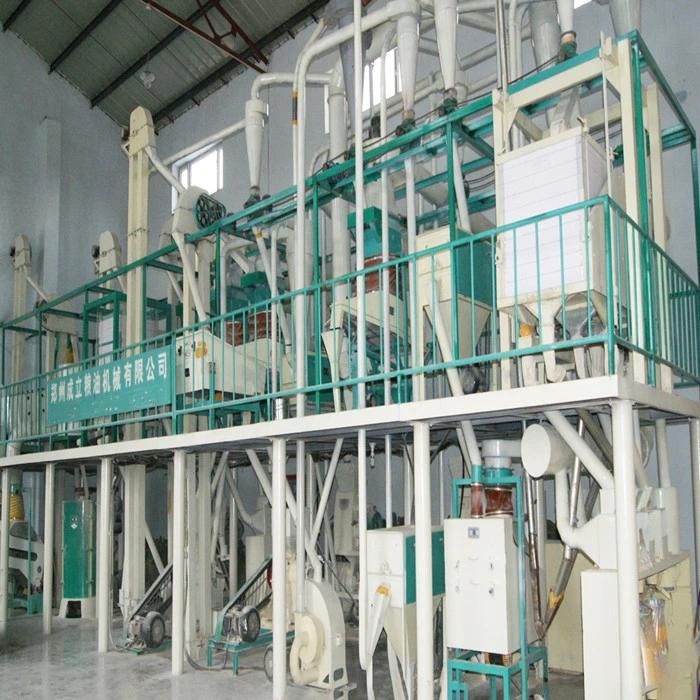

Maize corn flour milling machine has good sales in African countries. The flour plant is easy to operate. The produced corn flour is the staple food of African countries. It is a complete corn flour mill. It is mainly composed of maize cleaning equipment, flour mill, flour sifter, cyclone and air blower. It can produce maize flour, maize meal and standard flour as needed.
Quality of corn flour: The corn flour extraction rate is 75-80%, the maize husk is 20-25%, the flour produced by the flour plant is fine, the finished flour quality is high, and the taste is pure.
Final product parameters

1. Corn flour fineness:40-200 meshes (the flour mesh can be adjusted)
   2. Sand content:<0.02%
   3. Magnetic metal content:< 0.003/kg
   4. Moisture storage:13.5-14.5%
   5. Fat content:0.5-1%

The final product of the equipment is of good quality, easy to operate, and low power consumption. For some wearing parts, it is made of special wear-resistant materials, which reduces the cost of replacement parts and meets product specifications.
The whole process is closed to make powder, the dust concentration is the lowest, and it is easy to clean, the machine is convenient to operate, high efficiency, energy saving,

Maize Corn Flour Milling Machine with its unique and exquisite design coupled with reasonable and scientific processing technology, this equipment is very popular among grain processing practitioners.
The machine is easy to operate, high efficiency, energy saving, and environmentally friendly. Placed on a flat ground, using the best quality grinding heads and rollers, equipped with chain drive, micro-electric control, instrument display and micro-addition systems

The corn processing equipment is driven by an electric motor and is fully automatic. Auxiliary equipment is usually: grain processing equipment, corn cleaning equipment, peeling equipment, etc. After the corn milling plant is processed, the added value of corn products is several times the income of corn raw materials

(Product Features):
We have professional grain art designers to ensure the advanced nature of the process and reduce the impact of impurities, ash and bran on the finished product;





Product Parameters):


Capacity ( t/h)	Power (KW)	Workshop Size (mm)
20T/24H	72	20000×5000×5000

From raw material transportation, winnowing, removing large, medium, small and micro impurities, removing stones, removing metal impurities, moisture adjustment, clean corn conveying, grain moisturizing, peeling, removing germs and other processes, the final output is Maize grits and corn flour,and packed in bags by manual or automatic packing machine

The corn goes through the cleaning sieve to remove impurities and enters the moisturizing hoist. The corn processing skin is soaked in water in the moisturizing hoist, and then enters the storage box, and then enters the peeling crusher. The germ and the skin are separated, and the corn grits after the peeling and germ removal enter the pulverizer to grind and flow out from the discharge port of the receiver.
The corn processing equipment control system adopts automatic control, which can not only ensure the flow of the production process and reduce the labor intensity of the operators, but more importantly, it can ensure the accuracy and real-time feedback of the production process, improve product quality, and reduce equipment failure rate
Corn processing equipment has high production efficiency and good quality, not easy to damage, and easy to operate. The development direction of corn processing equipment has been developed from traditional to automation and high-tech.
The production process is: cleaning, peeling, removing embryos, removing roots, crushing, taking grits, grading, polishing, selection, packaging, etc. The equipment can process and produce corn flour, corn flour, corn grits and corn kernels in different degrees. The products produced are free of impurities, golden color, fine powder, uniform particle size, and rich nutritional value

Using dry peeling and degerming technology, it can produce different sizes of corn grits and flour at the same time. Corn grits size can be customized as per customers' need in order to meet various of needs such as brewery, snack food, glucose, sugarhouse.Thanks for the dry peeling and degerming technology, husks and germs collected at the end don't need to be dried before used for animal feed.



(Application and After-Sales Service):

Warranty: 12 months after installation and commissioning
Equipment installation and training:
We have professional engineer to provide installation and training services for your workers.
