• Model NO.：6YL-120QDT
• Press Materials：Peanut
• Press Series：Second
• Condition：New
• Customized：Customized
• Name：Oil Extraction Machine
• Function：Oil Processing Machinery 1 250-300kg,H
• Usage：Hot Cold Oil Press
• Products：6yl-120jd 250-300kg,H Oil Extraction
• Customiz 1：Oil Making Machine Customzied
• Transport Package：Plywood Case
• Specification：1000mm*538mm*1050mm
• Trademark：Chenji or OEM ODM
• Origin：Jinan or Others
• Production Capacity：6000set Per Month

Basic Info.

Model NO. 6YL-120QDT Press Materials Peanut Press Series Second Condition New Customized Customized Name Oil Extraction Machine Function Oil Processing Machinery 1 250-300kg/H Usage Hot Cold Oil Press Products 6yl-120jd 250-300kg/H Oil Extraction Customiz 1 Oil Making Machine Customzied Transport Package Plywood Case Specification 1000mm*538mm*1050mm Trademark Chenji or OEM ODM Origin Jinan or Others Production Capacity 6000set Per Month

Product Description

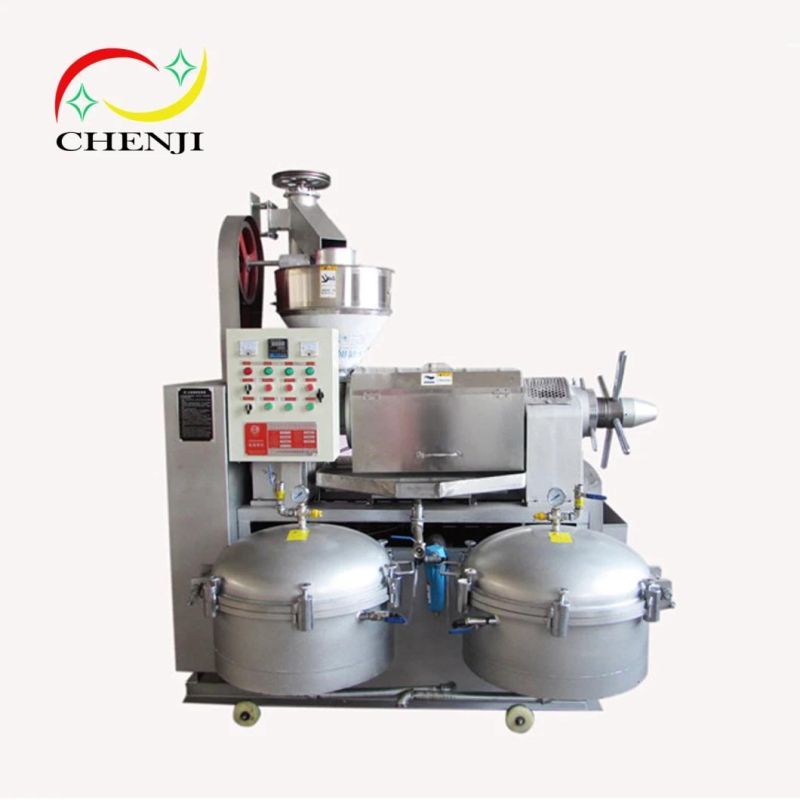

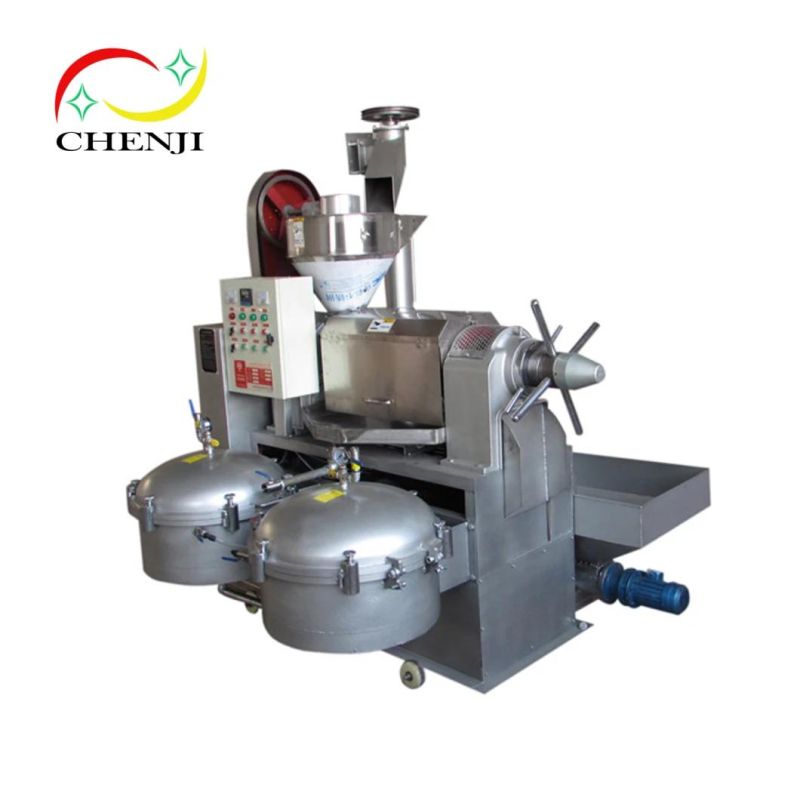

6YL-120QDT 100-125KG/H Auto Feeding Oil Cold Press Machine for oil process extraction

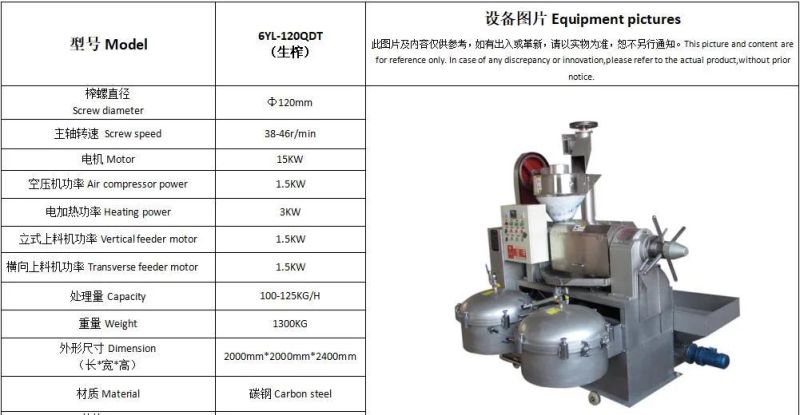

Model	6YL-120QDT ()
Screw diameter	Φ120mm
Screw speed	38-46r/min
Motor	15KW
Air compressor power	1.5KW
Heating power	3KW
Vertical feeder motor	1.5KW
Transverse feeder motor	1.5KW
Capacity	100-125KG/H
Weight	1300KG
Dimension (**)	2000mm*2000mm*2400mm
Material	Carbon steel




1, structure
 6YL series screw press are mainly consists of feeder, gearbox, spiral axis ,oil pan , squeeze chamber.
2, the working principle
The working principle of the machine is using the pressure generated by the material embryo (oil material) in the pressing space to change the space volume from big to small and the propulsive force of the screw shaft, the resistance of the multi-blade circular arc curve in the pressing circle, and between the embryos. The oil was separated from the embryo by pressure due to the combination of extrusion friction, and is discharged from the squeezing sliver gap and the squeezing ring,thus completing the whole process of oil separation from the embryo.
3,Function
It has multi-purpose, and can be used for both cold pressing and hot pressing of many kinds of oil seeds, such as Peanuts, Rape seeds, Sesame seeds, Soybeans, cottonseeds, Tea seeds, Tung Tree seeds, Sunflower seeds, Palm kernel, Coconut meat, Corn germ, Rice bran, Almonds, Black cumin, Cacao beans, Coffee beans, Hazelnuts, Hemp seed, Jatropha, Jojoba, Linseed, Mustard seeds, Palm nuts, Poppy seeds, Pumpkin seeds, Shea nuts, Walnuts,etc. Suitable for medium-small scale oil factory and private user, as well as for the pre-pressing of extraction oil factory.
