• Model NO.：LFM
• Transport Package：Qingdao
• Specification：chocolate chip depositor
• Trademark：Longer
• Origin：China
• Production Capacity：200

Basic Info.

Model NO. LFM Transport Package Qingdao Specification chocolate chip depositor Trademark Longer Origin China Production Capacity 200

Product Description

Introduction Of chocolate panning machine
Cashew nuts chocolate coating machine is used to coat chocolate on various products, like peanuts, almonds, and other products in round, oblate, oval, melon seeds and columnar shape. After chocolate coating, our coating pan can be applied to polish these products and make them shiny and colorful by agent, arabic gum and food colouring.
This coating pan blows natural air and hot air. We can provide cooling air system according to production capacity.
Parameters of nuts chocolate coating machine


Model	GG-BY-300	GG-BY-400	GG-BY-600	GG-BY-800
Capacity(kg/Times)	2-5	6-10	20-30	30-50
Coating pot diameter(mm)	300	400	600	800
Coating pan inclination (degrees)	15-45	15-45	15-45	15-45
Main motor power (kw)	0.55	0.55	0.55	1.1
Electric heating power (Kw)	0.6	0.6	1	1.6
Blast power (Kw)	0.04	0.04	0.1	0.1
Weight(kg)	40	43	80	180
Dimension(mm)	600*450*700	600*500*700	800*610*1100	1200*900*1450

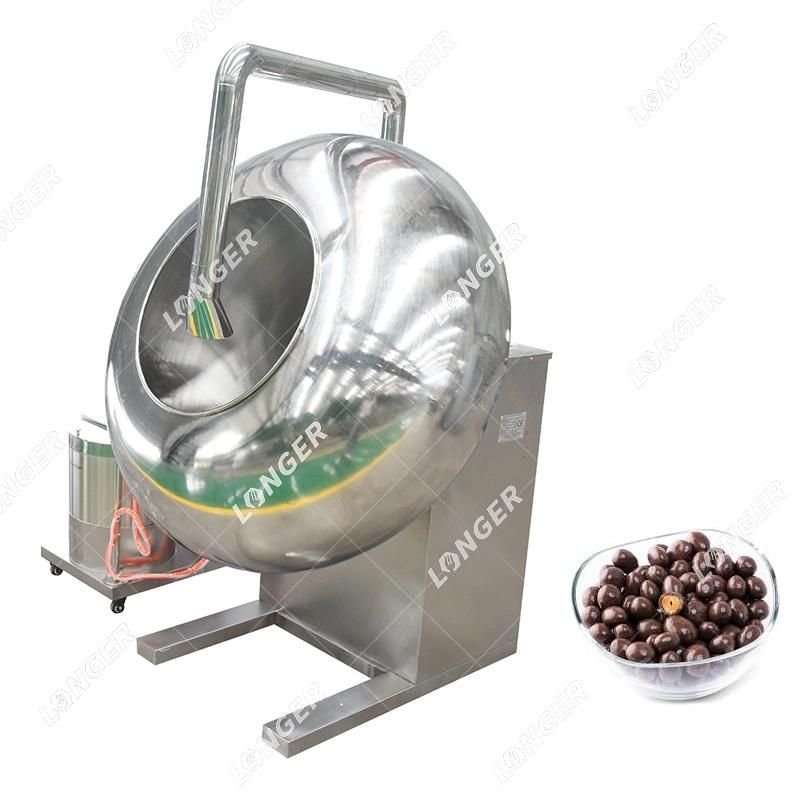

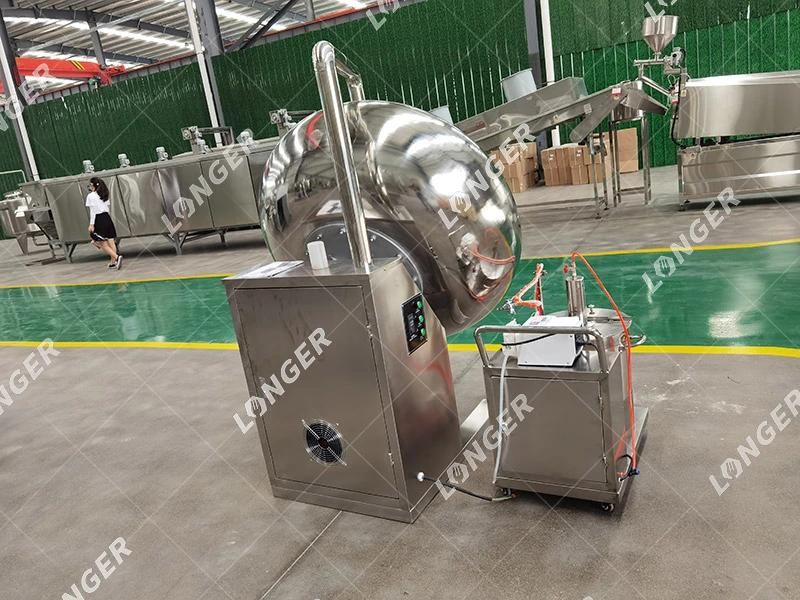

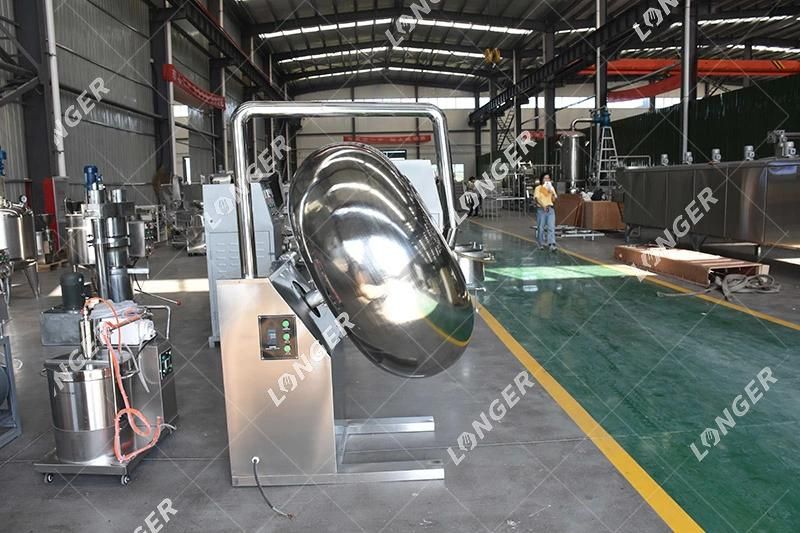

Picture of coating chocolate machine
