• Model NO.：6225A
• Model：6225A
• Power (Kw)：2.4
• Voltage (V)：210-230V
• Dimension(Net)：654X554X1065mm
• Dimension(Packing)：800X645X1250mm
• N.W.(Kg)：170
• G.W.(Kg)：190
• Transport Package：Carton with Pallet
• Specification：CE
• Trademark：SPACE
• Origin：Zhejiang, China (Mainland)
• HS Code：8418699020
• Production Capacity：25 Liter,Hour

Basic Info.

Model NO. 6225A Model 6225A Power (Kw) 2.4 Voltage (V) 210-230V Dimension(Net) 654X554X1065mm Dimension(Packing) 800X645X1250mm N.W.(Kg) 170 G.W.(Kg) 190 Transport Package Carton with Pallet Specification CE Trademark SPACE Origin Zhejiang, China (Mainland) HS Code 8418699020 Production Capacity 25 Liter/Hour

Product Description

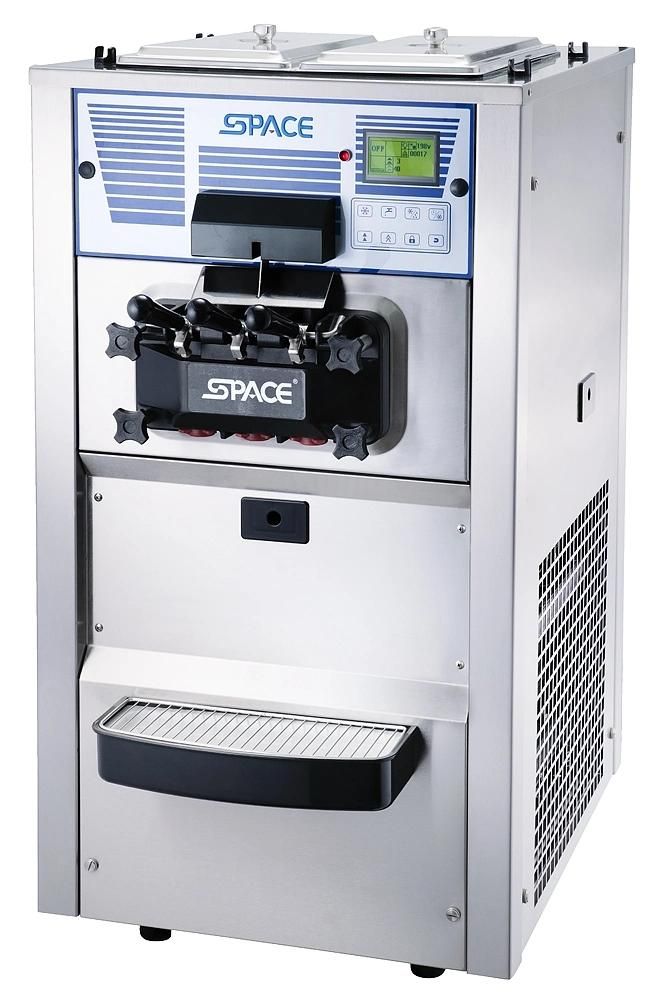

Restaurant Use Small Tabletop Ice Cream Maker Machine with Air Pump(6225A)






Product Offering
Offer all popular soft serve variations from low or non-fat ice cream to custards, yogurt and sorbet.

Feature:

1. Table model
2. Air cooling
3. Twin flavour+one mix
4. Air pump
5. Stainless Steel Panels
6. Microprocessor controls

Freezing cylinder
Two, 1.8 Liter

Mix hopper
Two, 12.5 Liter
Separate hopper refrigeration(Pre-cooling)maintains mix below 4.4° C.

Microprocessor controls
Microprocessor regulates refrigeration by measuring product viscosity to maintain consistent quality.

Mix low light
The mix low light turns"on" to alert operator to add mix, preventing cylinder over freezing.

Standby
Maintains product temperature in the mix hoppers and freezing cylinders below 4.4° Cduring long no-use periods.

Counter
Records number of dispenses per day and total number of dispenses.

Agitator in the hopper
Mixture has better liquidity, the temperature of the Mix to be more uniform.

Output
25 LIter/Hour(At 4° Cliquid &24° CAmbient)

Electrical requirements
One dedicated electrical connection is required.
Make voltage steady when machine is on.

Main motor
One, 2.0HP

Refrigeration system
One compressor: 3393 BTU/hr. R404A
Separate hopper refrigeration(pre-cooling): One compressor: 400BTU/hr. R134A
(BTU may vary depending on compressor used. )

Air cooled
Minimum clearance of 152 mm on both sides is to achieve optimum performance.
Refer to the local situation to regulate the parameters, on basic of the data label. Specificaitons of the improvements are subjuct to change without notice.

Specification

Voltage: 210-230V/50Hz
Power: 2.4KW
N. W. (KG): 160kg
G. W. (KG): 180kg
Dimension Net (mm): 867*554*1065
Dimension Packing(mm): 800*645*1250

Options
Local specific plugs of power supply wire
Cup dispenser
Power supply 220V/60Hz
