• Customized：Non-Customized
• Weight：2780kg
• Capacity：9-12t,H
• Power：75-90 Kw
• Transport Package：Wooden Case
• Specification：2000x1600x2300
• Trademark：CLJ
• Origin：China
• HS Code：84378000
• Production Capacity：4000 Units ,Year

Basic Info.

Customized Non-Customized Weight 2780kg Capacity 9-12t/H Power 75-90 Kw Transport Package Wooden Case Specification 2000x1600x2300 Trademark CLJ Origin China HS Code 84378000 Production Capacity 4000 Units /Year

Product Description

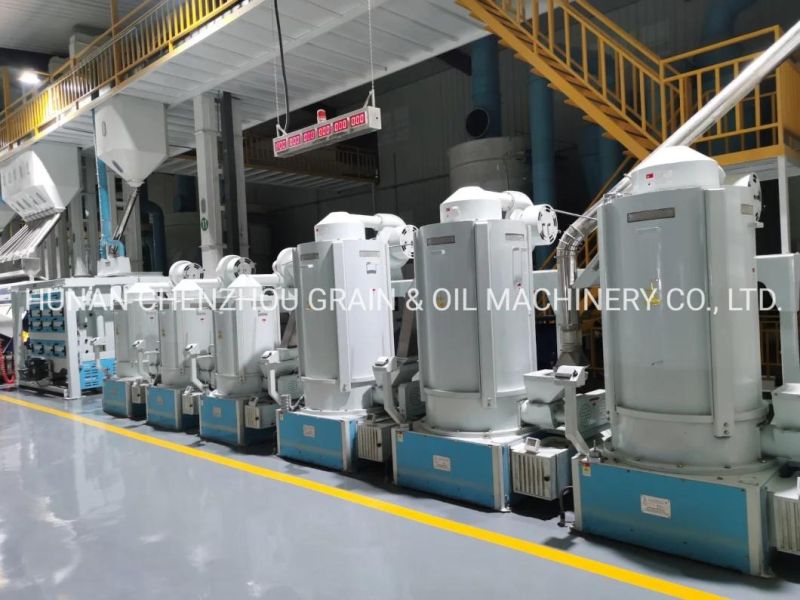

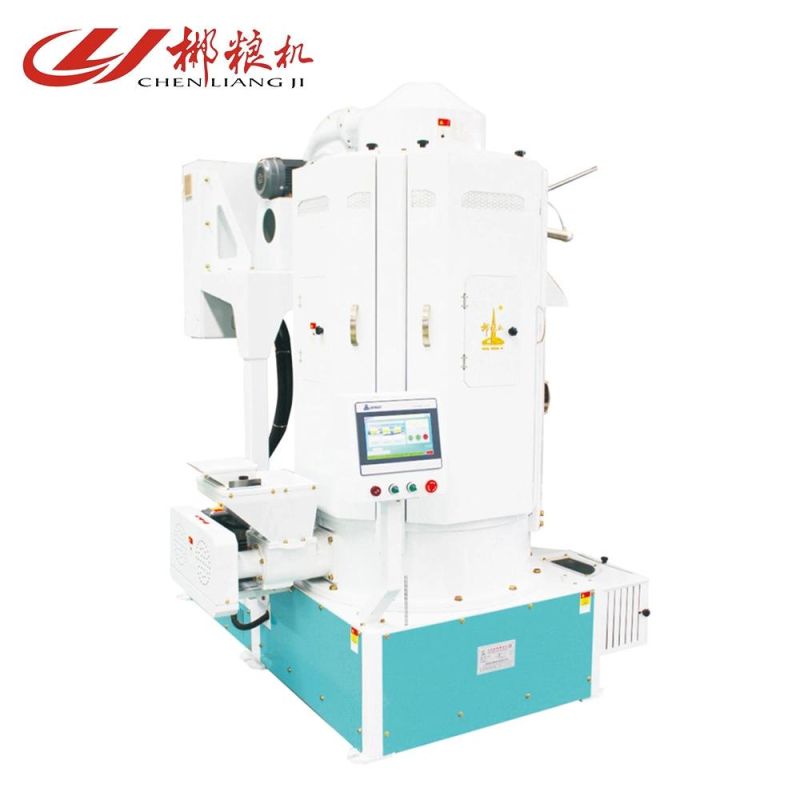

MNSL9000 Vertical Emery Roller Rice Whitener is the latest milling equipment specially designed for millers with a daily processing capacity of 200-250 tonnes. It can satisfy various customer needs by  processing brown rice, regular paddy or fine paddy to different milling degrees. As one of the most advanced rice millers in China, the equipment can produce with 2 machines connected or with 3 of them linked.

• Capacity: fit for millers with a capacity of 200-250 T/D
• A vertical input/output design to ensure that an elevator can be shared when machines connected;
• Screw conveyors facilitate feeding with efficiency;
• Even milling and whitening, low bran percentages, small rates of broken kernels and low power consumption
• Easy operation and maintenance;
• Interior air-jetting to guarantee low rice temperature and high efficiency of bran removal;
• Emery screen and blade provided for a longer product duration upon request.



Model	MNSL9000A
Capacity	9-12T/H
Power	Main Motor 75Kw   /90Kw  Feeder Screw Mo tor  1.5Kw-4P Air-blower Motor   3Kw-2P
Air Suction Volume	Air Volume 55m3/min Static Pressure 120-150mm H2o 220mm Aspiration Channel Diameter Note: Values measured with no load
Interior Resistance	200-250mmH2o
Cyclone Model	Æ550 Type 60 Backspin Twin Pump Æ550
Air-blower Configuration	Suggested configuration Single: 9-26-4.5#, Motor 11KW Twin: 6-30-6A Engine Motor 15KW Triple: 5-60-6A Motor 30 KW
Weight (Without Main Motor )	1700KG
(Length x Width x Height) (With Main Motor)	2000×1600×2300
