• Condition：New
• Customized：Customized
• Low Residual Oil Rate：6%-8%
• Transport Package：Moisture-Proof Packing
• Specification：2900mm*1850mm*3240mm
• Trademark：Huatai
• Origin：Henan
• HS Code：8479200000
• Production Capacity：20000sets,Year

Basic Info.

Condition New Customized Customized Low Residual Oil Rate 6%-8% Transport Package Moisture-Proof Packing Specification 2900mm*1850mm*3240mm Trademark Huatai Origin Henan HS Code 8479200000 Production Capacity 20000sets/Year

Product Description

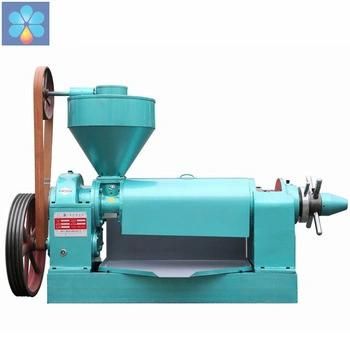

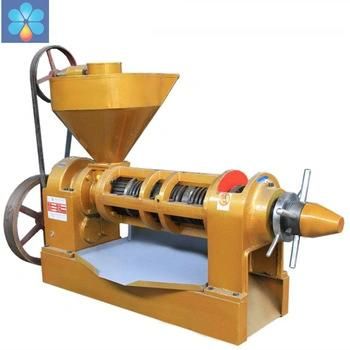

Sunflower Oil Machine

Product description
Sunflower oil machine is one kind of continuous oil press.It's suitable for various oilseeds, such as soybean, peanut,rapeseed, sunflower seed,cottonseed, corn germ, sesame, niger seed and so on. It has the following advantages:


1. High capacity
2. Low power consumption
3. Low cost in running
4. Small occupation area
5. The structure of the press cake is soft but not fragmentary.
6. Low residual oil in cake.
7. Excellent choose of press equipment for the large and medium-sized oil plant.

Oil press machine details:
Steel casting, squeezing bar and worm quenching process, wear-resistance
The thickness of pressing cake is adjustable, convenient maintenance,
Semi-open type reducer,stable running, cake outlet with cake crushing device, squeezing shaft can be input cooling circulating water,improve cake quality, the whole oil press is sealed, energy-saving and beautiful.


Model	Processing capacity	Residual oil content	Power (kw)	Overall dimensions (L*W*H)	Weight (kg)
ZX18	7~10T/D	5~7%	18.5	2900*1850*3240mm	5000
ZX24	15~20T/D	7~9%	38.5	2900*1850*3640mm	5500
ZX28	40~60T/D	7~9%	70	3740*1920*3843mm	9160
ZX32	90~100T/D	8~10%	106.5	4100*2270*3850mm	1100
ZY120	6.5T/D	≤6.5%	11	1860×622×1275mm	680
ZY130	8~10T/D	≤8.0%	15	1950×742×1500mm	825
ZY168	20T/D	≤7.0%	37~45	2670×1000×1726mm	1710

          Crude pressing sunflower oil                                          Refined sunflower oil



Company Profile

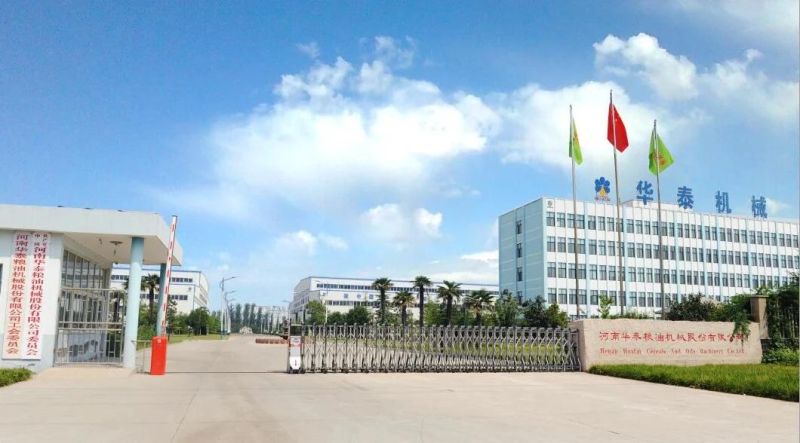

Henan Huatai Cereals and Oils Machinery Co., Ltd. ,outstanding membership enterprise of CCOA,also public company in oil machine field in China.We are a large scale oil machinery manufacturer integrating research, development, design, manufacture and installation.Our oil machines sell well in more than 30 provinces, cities and districts, and exported to Estonia, Russia, Kazakhstan,Uzbekistan,Tajikistan,Malaysia, Indonesia, Egypt, Bangladesh, Myanmar, the Philippines,Nigeria, Sudan, Tanzania,Rwanda,Bolivia,Peru and other countries, and now we have developed into a major oil machinery manufacturing base in China.




Certifications

We have import and export right and has passed ISO9001:2008 Quality Management System Certification,with CE,BV,SGS certificates. Registered trademarks"Huatai" and "Hangpeng" won TOP 10 cereals and oil machine brand in China. We have successfully obtained 29 national patents (including 9 invention patents), 6 international awards, 2 national awards and 2 provincial awards.

We have 210 senior engineering technicians among 580 staff, invest USD60,000.000 to establish 8 production workshops, 2 machining workshops,with 202 sets of automatic processing equipment, such as automatic laser cutting machine, flame cutting machine, double housing planer,union melt welding machine, tube-sheet welding machine, etc, annual processing capacity is more than 3000 sets.

Packing & Delivery

Packing: Our oil machines adopt wooden case or power distribution cabinet and motors, reducers, and adopt solid packing for flanges, meters, valves,etc.

For all machines, after sand blasting and rust protection, also use film to keep cleaning before delivery, also fixing treatment to prevent rolling and collision.

Delivery: We have gantry cranes in every workshop for heavy machines, and forklifts for normal machines.
