• Model NO.：TSXQ-50
• Material：304 Stainless Steel or According to Customer Requi
• Effective Size：3500*720*100mm
• Ozone：with
• Air Bubble：with
• Water Spraying：High Pressure
• Cleaning：Equiped with Hoisting System for Easy Cleaning
• Transport Package：According to Customer Requirement
• Specification：5200*1650*1900mm
• Trademark：AMBITIOUS
• Origin：China
• HS Code：8438600000
• Production Capacity：200pieces,Year

Basic Info.

Model NO. TSXQ-50 Material 304 Stainless Steel or According to Customer Requi Effective Size 3500*720*100mm Ozone with Air Bubble with Water Spraying High Pressure Cleaning Equiped with Hoisting System for Easy Cleaning Transport Package According to Customer Requirement Specification 5200*1650*1900mm Trademark AMBITIOUS Origin China HS Code 8438600000 Production Capacity 200pieces/Year

Product Description

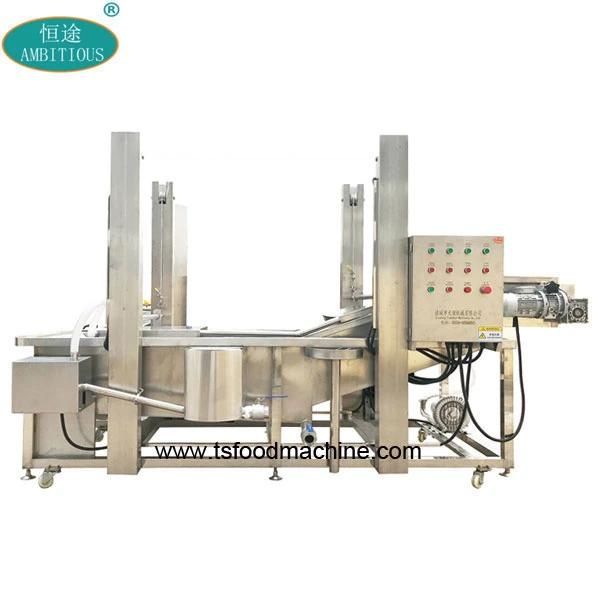

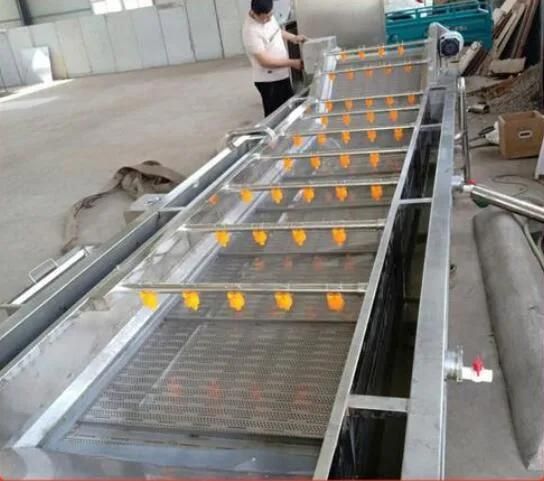

1.- Conveyor Automatic Pepper And Chilli Bubble Washing Machine


The main part of the vegetable washing machine:

The frame, electric motor, water tank, ozone generator, and other components.
The machine is all made of stainless steel corrosion resistant material, and it is durable and improves the service life of the machine.


The working principle of the bubble washing cleaning machine:

1) The vegetables that need to be cleaned are put into the water tank, under the action of high-pressure water flow and strong air bubbles, they are entirely dispersed, turned over, washed, and then transferred.

2) The silt on the surface of the vegetables will fall off and precipitate to the bottom of the tank, discharged from the blowdown valve, prevents the re-pollution. At the same time, the debris and bugs washed down from the vegetables will float on the surface of the water and will be removed by the flowing water.

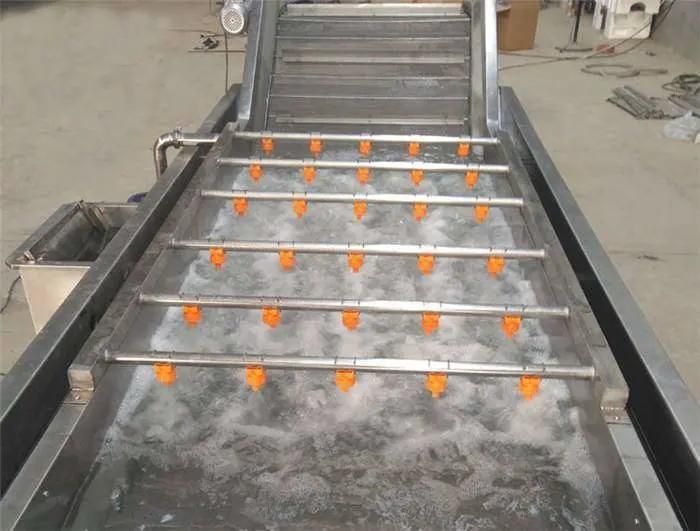

3) After the vegetables washed by the water flowing and air bubbles, they will also be washed by the sprayed water created by the spray water device, and then lastly carried out by the conveyor belt.

4) Nextly, the washed vegetables are transported onto the vibraton dryer machine, for dewatering process.





2.- Applications of Conveyor Automatic Pepper And Chilli Bubble Washing Machine

Washing chilli, asparagus, okra, celery, spinach, lettuce, rape, and other leafy vegetables, seafood such as squid, fish,
shrimp, etc.

Can also be equipped on the complete production line for deep processing of fruits and vegetables.





3.- Technical Index of Conveyor Automatic Pepper And Chilli Bubble Washing Machine



1	Model	TSXQ-50
2	Processing capacity	500-800kg/hr
3	Overall Dimensions	5200*1650*1900mm
4	Electric source	380V/50HZ
5	Power	5.6KW
6	Hoister	With
7	Bubble Generator	With
8	Ozone Device	With

4.-Packaging and Delivery

Packaging	With Wrapping film and in wooden case, or according to the customer needs.
Delivery Time	20-30 Working days.
Shipping Type	By sea, railway, etc.

5. -Customers Review

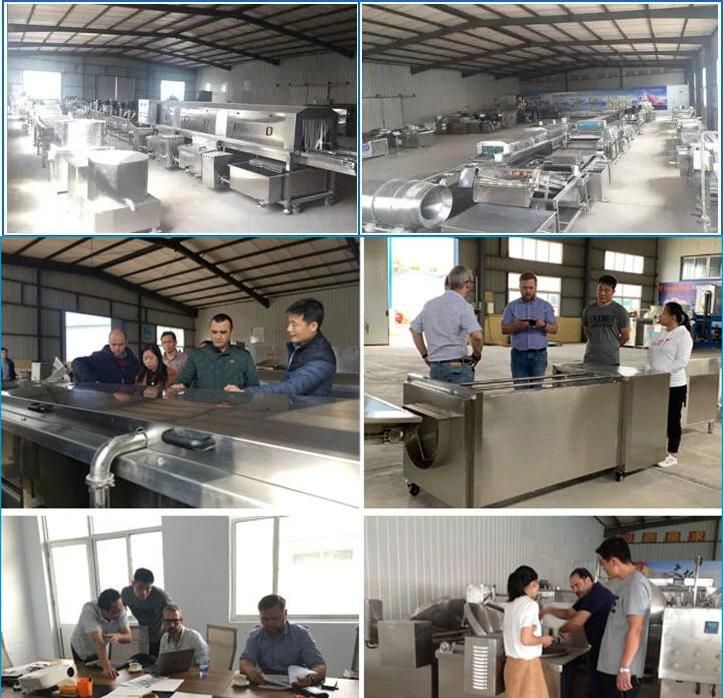

6. -Introduction of Our Company

Zhucheng Tianshun Machinery Co.,Ltd. has grown into a large, specialized food machinery manufacturing enterprise which integrates R & D and manufacturing. Currently has more than 100 employees, the division of labor is professionalization and specific, there are technical department, after-sales service department, domestic marketing department, international business department, etc. The company has all kinds of welding equipment, machining equipment to meet the needs of different customers.


Main products: Food processing machinery and complete production lines, including:

Vegetables&fruits cutting machines,
Peeling&washing machines,
Frying equipment,
Air drying machinery,
Blanching&cooking machine,
Food flavoring machine,
Food coating machine,
Vacuum packing machine,
Freeze dryer,
IQF freezing machine,
Dishwasher,
Complete potato chips/french fries/plantain chips production line.

All of them can be designed semi-automatic and full automatic, and widely used for processing varieties of vegetable, fruits, fish, seafood, etc. Some of them have pass the CE certificate. All of them could be customized, and we also provide and design individual machines for customers.
