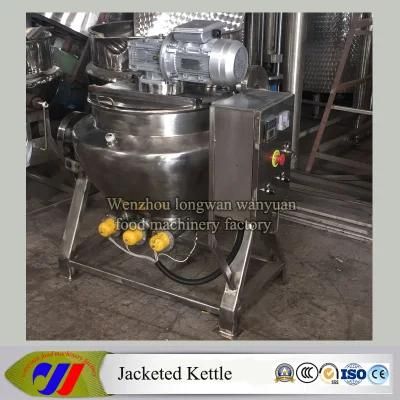

Stainless Steel Ketchup Cooking Jacketed Kettle
Wenzhou Longwan Wanyuan Food Machinery Factory- Type：Cooking and Mixing
- Voltage：110V,220V,380V,415V
- Customized：Customized
- Cooking Kettle Capacity：50 Liters to 600 Liters Customized
- Cooking Pot Structure：Double Layer Made of Stainless Steel
- Agitator：with , Without Agitator, Customized
Base Info
- Model NO.：DG-100
- Way of Discharge：Drainage From Bottom , Tiltable
- Construction Material：Ss304 , Ss316
- Pressure：Low Pressure
- Burning Style：Internal Firing Boiler
- Application：Milk, Jam, Liquid.etc
- Transport Package：Wooden Case
- Specification：SUS304
- Trademark：Wanyuan
- Origin：Wenzhou China
- HS Code：8479819000
- Production Capacity：5000
Description
ModelDG-200 DG-100 Jacketed pot diameter(mm) Φ800 Φ700 depth(mm) 550 500 Total capacity (L) 200 100 Material in/out pipe 1/2" 3/4" Heating power(kw) 12 18 Boiling time (min) ~13 ~10 Heating area(m2) 1.13 0.58 Design temperature (degree C) 180 180 Max working temp (degree C) 151 151 Design pressure (MPa) 0.095 0.095 Max working pressure(MPa) 0.095 0.095 Max tilting Angle 90° 90° overall dimension Length (mm) 1100 1000 Width (mm) 850 750 Height (mm) 1450 1100
