• Model NO.：HT-15
• Trademark：HuaTai
• Origin：China
• HS Code：8479200000
• Production Capacity：20 Set,Year

Basic Info.

Model NO. HT-15 Trademark HuaTai Origin China HS Code 8479200000 Production Capacity 20 Set/Year

Product Description

palm oil equipment

Technical and Performance Indexes in Palm Oil Pressing Workshop

(1)Crude palm oil standard:

FFA :	Less than 5 %
Moisture :	Less than 0.1 %
Dirt:	Less than 0.02 %

(2)Kernel Standard :

Broken Kernel:	Less than 15 %
Moisture:	Less than 7 %
Dirt:	Less than 6 %

Palm Fruit Pressing Process Description

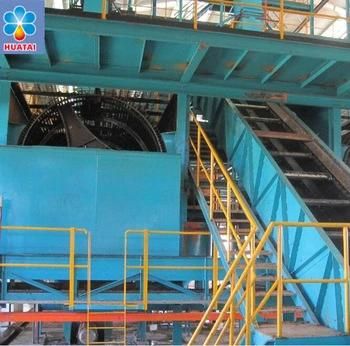

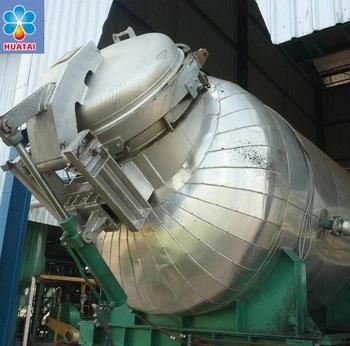

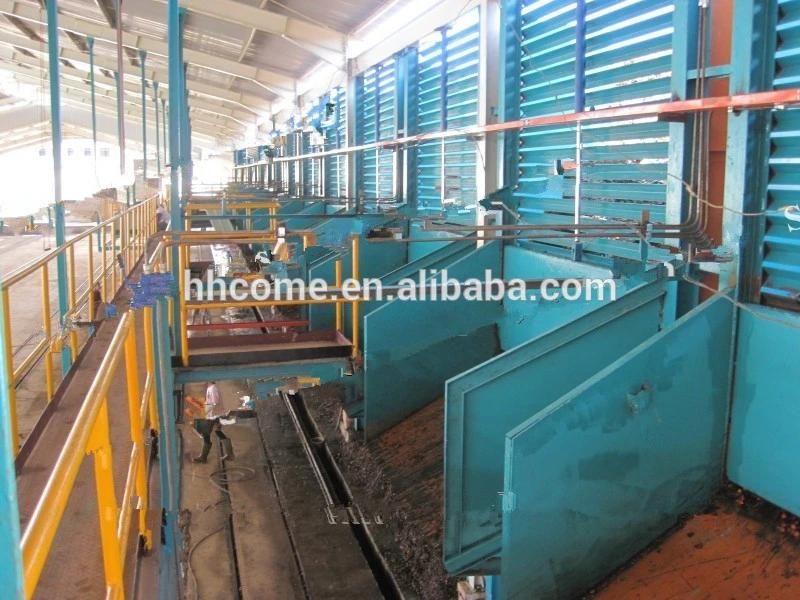

The palm oil is contained in palm pulp, the pulp is high moisture content and rich lipase. Usually we adopt the method of press to produce it, and this technology is very mature. Before press , Fresh fruit bunch will be taken sterilizer and thresher pretreatment : After weighting the FFB , it is loaded the FFB conveyor by loading ramp, then the FFB will convey to the vertical sterilizer. FFB will be sterilized treatment in sterilizer, the FFB will be heated and sterilized treatment for several time to avoid the lipase be hydrolyzed , after sterilizer ,the FFB is distributed bunch conveyor by the mechanical bunch feeder and enter the thresher machine which separate the palm fruit and bunch , for the empty bunch ,it is conveyed empty bunch loading platform and transport it to outside the factory area at fixed period , the empty bunch could be used as fertilizer and repeat use ; The palm fruit which has passed sterilizer and thresher processing should be sent to digester and then go to special screw press to get the crude palm oil (CPO) form the pulp . But the pressed palm oil contain a lot of water and impurity which need to be clarified by sand trap tank and treated by the vibrating screen ,afterward the CPO will be sent to clarification station treatment section . For the wet fibre cake which be produced by screw press, after separating nut, it will be sent to boiler house to burnt.



The wet fiber cake contain wet fiber and wet nut, the fiber contain about 6-7% oil and fat and a few of water .Before we produce the nut, we should separate the nut and fiber . Firstly, the wet fiber and wet nut enter the cake breaker conveyor to be cracked, and mostly of the fiber should be separated by pneumatic fiber depericarper System. The nut, little fiber and big impurity will be further separated by the polishing drum. The separated nut should be sent to nut hopper through the pneumatic nut transport system, and then adopt the ripple mill to crack the nut, after cracking , most of the shell and kernel will be separated by cracked mixture separating system, and the rest of mixture of kernel & shell enter to the special clay bath separating system to separate them, after this processing , we could get pure kernel(The shell content in kernel <6%),which should be conveyed to the kernel silo to dry. After dried moisture as 7%, the kernel will be conveyed to kernel storage bin for storage; Usually the dry kernel's capacity ratio is 4% . So it should be collected until enough quantity, and then be sent to the palm kernel oil mill; For the separated shell, it should be conveyed to shell temporary bin as the spare boiler fuel.



After screen and sand trap tank, the palm oil should be sent to crude oil tank and heat , then be pumped continuous clarification tank to separate the purified oil which be sent to pure oil tank and the sludge oil which be sent to sludge tank , whereafter the sludge oil should be pumped to the centrifuge to separate, the separated oil enter the continuous clarification tank again; The pure oil in the pure oil tank should be sent to the oil purifier , and then enter the vacuum dryer , at last the dried oil should be pumped collection tank.





Refining section

Henan Huatai can provide you with 10 to 25 kilograms (test equipment), 2 to 1,000 tons / day of oil refining projects , Henan Huatai naturally is your preferred partner for different oil quality. in Henan Huatai here are different options, batch chemical refining, semi-continuous physical refining, continuous physical refining program, where Henan Huatai provide you with the design (process, civil, electrical), manufacturing, installation, commissioning, training of technical personnel to the sale a full-service; advanced automatic control system to ensure that the entire production line of automatic, smooth operation; heat saving each segment to ensure that the processing costs to a minimum.

The main refining plant processes: degumming, dehydration, bleaching, deacidification, deodorization, dewaxing, degreasing. Crude oil in squeeze, extraction crude oil can be obtained national quality standards of edible oil through refining plant
.

Refining workshop process: fully continuous refining equipment, refining equipment, and semi-continuous batch refining equipment.

Huatai Oil refining machinery characteristics:
1, continuous alkali refining shorten the contact time of oil and lye, reduce fat saponification, low power consumption and improve efficiency;
2, bleaching and steam stirring decolorization premixed combination of technology, improve the decolorization efficiency, saving the amount of clay, simple operation; a negative pressure and oxygen in the air to avoid contact with hot oil, to ensure the quality of oil, acid value rise suppression, reduce excessive oxidation number.
3, using the new continuous physical refining deacidification deodorization, deacidification deodorizing suitable for high acid value and low gum content of the vegetable oil, the actual production proves that the process has the following salient features: strong acid removal ability, good heat decolorization, refining rate, good quality oil.
4. The process multiple heat exchange systems take advantage of the heat, reduce steam consumption, the production process also has an adjustable, flexible operation, high automatic degree of sanitation.

Applicable oil: soybean oil, sunflower oil, rapeseed oil, cottonseed oil, peanut oil, palm oil, copra oil, rice bran oil, animal oil all need refining oil.

Refining plant capacity: 10-1000T / D

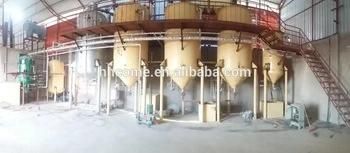

Refining workshop

Part of Our Overseas Projects

No.	Country	Project Name
1	Australia	150T/D Vacuum Drying Equipment
2	Australia	100T/D High Material Layer Desolventizer
3	Bangladesh	30T/D Rice Bran Making Oil Project
4	Bangladesh	100T/D Rice Bran Making Oil Project
5	Bangladesh	30TPD Sunflower Seed, Mustard Seed Making Oil Project,30T/D Fully Continuous Oil Refining Project
6	Bangladesh	15T/D Rapeseed Oil Refining Project
7	Bolivia	60T/D Soybean Oil Refining Project
8	Cambodia	30T/D Rice Bran Making Oil Project
9	Cameroon	5T/D Palm Oil Stirring Tank
10	Congo	0.5T/H Palm Oil Making Soap Project
11	Congo	15T/H Peanut Making Oil Project
12	Congo	15T/H Palm Fruit Pressing, 10T/H Palm Oil Refining and Fractionation Project
13	Congo	5T/H Palm Fruit Pressing, 5T/D Palm Oil Refining Project
14	Djibouti	2T/D Sunflower Oil Dewaxing Machine
15	Ethiopia	50T/D Soybean Oil Refining Project
16	Ethiopia	100T/D Corn Processing Project
17	Ethiopia	15T/D Peanut and Sunflower Seeds Pressing,5T/D Oil Refining Project
18	Ethiopia	5T/D Crude Oil Refinery Project
19	Ethiopia	250T/D Flax Seed Oil Making Project
20	Ethiopia	50T/D Soybean/Peanut oil press and 30T/D Oil Refining project
21	Ethiopia	15T/DSoybean/Peanut oil press and 10T/D Oil Refining project
22	Ethiopia	200T/D Palm oil deacidification &deodorization,100T/D palm oil Fractionation Project
23	Egypt	100T/D Soybean Pretreatment and Extraction Project
24	Egypt	20T/D Soybean Oil Refining Project
25	Egypt	10T/D Cottonseed Oil Refining Project
26	Estonia	10T/D Biodiesel Distillation Project
27	Ghana	20T/D Corn Flour Production Line Project
28	Indonesia	20T/D Coconut Oil Pressing,10T/D Oil Refining Project
29	Indonesia	3T/D Fragrant Sesame Oil Project
30	Indonesia	3T/D Oil Refining Machine
31	Indonesia	20T/D Maize germ oil pressing and 5T/D oil refining project
32	Kazakhstan	3T/D High-class Cooking Oil Refining Project
33	Kazakhstan	120T/D Sunflower seed prepressing, extraction and refining project
34	Kazakhstan	50T/D Safflower oil processing project
35	Kenya	3T/D Pyrethrin Extraction Project
36	Malawi	2T/D Oil Refining Machine
37	Moldova	3T/D Sunflower Oil Refining&dewaxing  Machine
38	Myanmar	3T/D Cottonseed Oil Refining Machine
39	Myanmar	5T/D Oil Refining Project
40	Nigeria	5T/H Palm Fruit and Kernel Pressing Project
41	Nigeria	20T/D Palm Oil Refining and Fractionation Project
42	Nigeria	50T/D Peanut Pressing, 15T/D Peanut Oil Refining Project
43	Nigeria	40T/D Cotton seed oil processing and 15T/D Oil Refining Project
44	Peru	50T/D Cotton Seed Palm Oil Refining Project
45	Peru	50T/D Palm Oil Deacidification & Deodorization Project 20T/D Crystallizing tank
46	Peru	150T/D Soybean/Palm/Sunflower Oil Refining Project
47	Russia	50T/D Soybean Pretreatment, 50T/D Solvent Extraction and 10T/D Soybean Oil Project
48	Russia	10T/D Rapeseed Oil Pressing Project
49	Russia	10T/D Sunflower/Rapeseed Oil Pressing and 3T/D Oil Refining Project
50	Rwanda	10T/D Palm Oil Refining Project
51	Solomon Islands	3T/D Coconut Oil Deacidification & Deodorization Project
52	Sri Lanka	30T/D Chicken Oil Pressing, 20T/D Chicken Oil Refining Project
53	Sudan	30T/D Peanut Oil Pressing, 15T/D Peanut Oil Refining Project.
54	Swaziland	30T/D Oil Refining Machine
55	Tajikistan	50T/D Cottonseed Cake Extraction Project
56	Tanzania	20T/D Sunflower Seeds Pressing, 5T/D Refining Project
57	Tanzania	10T/D Sunflower Seeds Pressing, 3T/D Refining Project
58	Thailand	10T/H Palm Oil Renovation Project
59	Thailand	45T/H Palm Fruit Sterilization Tank
60	Thailand	2T/D Palm Oil Refining Project
61	The Philippines	30T/D Corn Germ Pressing and Refining Project
62	The Philippines	15T/D Corn Processing Project
63	Turkmenistan	50T/D Sunflower Seed Pretreatment,30T/D Extraction and 20T/D Refining Project
64	Ukraine	30T/D Sunflower cake Extraction Project
65	Ukraine	50T/D Sunflower cake Extraction Project
66	Uzbekistan	80T/D Sunflower Seed Cake Extraction,50T/D Sunflower Oil Refining Project
67	Uzbekistan	50T/D Sunflower Seed,Soybean,Cottonseed Making Oil Project
68	Uzbekistan	100T/D Sunflower Seed Prepressing, Soybean Pretreatment, 100T/D Micro-negative Pressure Extraction and 20T/D Grade 1 Oil Refining Project
69	Uzbekistan	100T/D Sunflower Seed Cake Extraction,30T/D Semi-cotinuous Sunflower Seed Oil Refinery and Dewaxing Project
70	Uzbekistan	100T/D Sunflower Seed Cake Extraction,50T/D Sunflower Seed Oil Refinery Project
71	Uzbekistan	30T/D Sunflower Seed Oil Processing 10T/D Oil Refining Project
72	Uzbekistan	100T/D Sunflower Seed Oil Processing 80T/D Extraction Project
73	Uzbekistan	50T/D Sunflower Seed Pre-press, 50T/D Extraction and 30T/D Refining Project
