• Model NO.：KM
• Material：Ss304
• Raw Water：River Water,Lake Water,Underground Water
• Function：Water Purification
• Market：Water Treatment System Market
• Warranty：12moths
• Certificate：Ce,ISO,SGS
• Condtion：New
• Application：Drinking Water
• Service：Can Send Engineer to Customer′s Plant
• Capacity：Make to Order
• Transport Package：Wooden Case for RO Water Treatment System
• Specification：CE ISO SGS approved
• Trademark：King Machine
• Origin：Zhangjiagan City, Jiangsu Province, China
• HS Code：8421219100
• Production Capacity：25 Sets,Month of RO Water Treatment System

Basic Info.

Model NO. KM Material Ss304 Raw Water River Water/Lake Water/Underground Water Function Water Purification Market Water Treatment System Market Warranty 12moths Certificate Ce,ISO,SGS Condtion New Application Drinking Water Service Can Send Engineer to Customer′s Plant Capacity Make to Order Transport Package Wooden Case for RO Water Treatment System Specification CE ISO SGS approved Trademark King Machine Origin Zhangjiagan City, Jiangsu Province, China HS Code 8421219100 Production Capacity 25 Sets/Month of RO Water Treatment System

Product Description

German technology Pure water treatment system in China
Water filters / water treatment / purification system
1. Reverse Osmosis system
2. Stainless steel tank
3. American RO membrane
4. CE, ISO, SGS approved

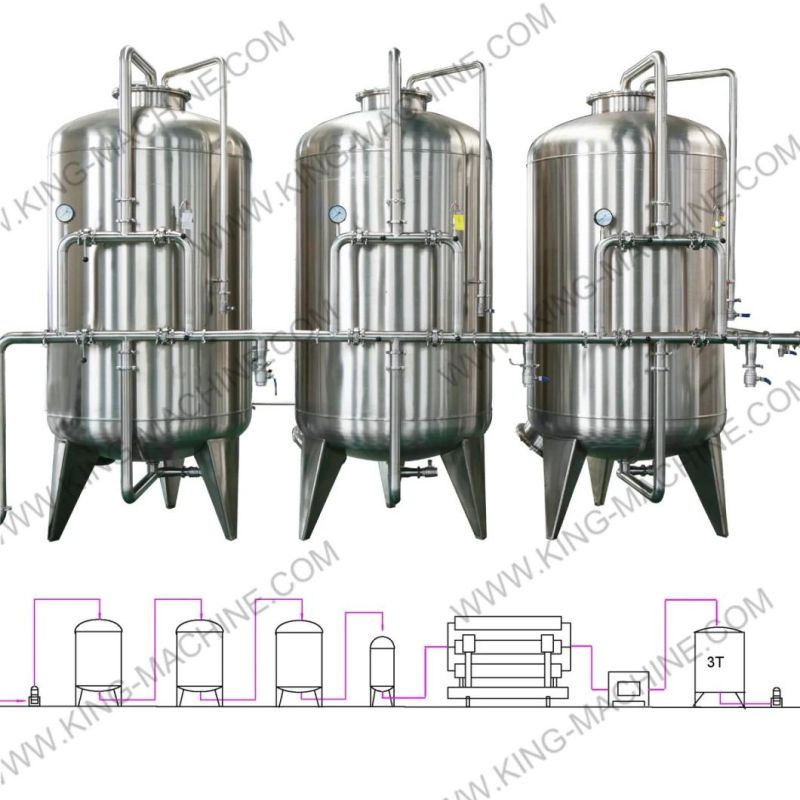

Flow chart:
Raw water tank- Raw water pump- Multi-medium filter--active carbon filter water softner (Sodium Ion Exchanger)- Precision filter- RO mainframe(including chemical cleaning device)- Ozone generator- Finished product water tank
First stage pretreatment. (Sand filter):
The use of multi-medium quartz sand filters, main purpose is to remove the water contains sediment, manganese, rust, colloid material, mechanical impurities, suspended solids and other particles in the above 20UM of substances hazardous to health. The effluent turbidity is less than 0.5NTU, CODMN less than 1.5mg / L, iron content of less than 0.05mg / L, SDI less than or equal to 5. Water filter is a kind of "physical - chemical" process, the water through granular materials when isolated filter water impurities and colloidal suspensions. Filter is an effective water purification and treatment of the main process in the preparation of pure water is an indispensable process.
Second stage pretreatment (Carbon filter)
Activated carbon filters used to remove the pigment in the water, smell, a large number of chemical and biological organisms, reducing the residual value of water and pesticide pollution and other harmful pollutants. The structure of activated carbon filters and quartz sand filters, the difference is placed inside the strong adsorption capacity of activated carbon for removal by the quartz sand filter without the filter out organic material, adsorption of residual chlorine in the water, using water more than less than or equal to chlorine 0.1ML/M3, SDI less than or equal to 4, are strong oxidants chlorine, there are various types of membrane damage, in particular, reverse osmosis membranes are more sensitive to chlorine.
Third stage pretreatment (Resin softener):
Cationic resin used for water softening, primarily to remove hardness of water. The hardness of water is a major calcium (Ca2 +), magnesium (Mg2 +) ion composition, when containing the raw water hardness ions through the resin layer, the water of the Ca2 +, Mg2 + was exchanged resin adsorption, and other objects at the same time the quality of the release of sodium Na + ions flow from the softener in the water is removed from the softened water hardness ions. So as to effectively prevent the reverse osmosis membrane fouling. System can automatically recoil, and so is red.
Fourth stage pretreatment (Micron filter):
Particle size in water to remove fine particles, sand filters can remove very small colloidal particles in the water, so that the turbidity reached 1 degree, but still per milliliter of water for hundreds of thousands of particle size 1-5 microns colloidal particles, the pressure on this filter to remove water after the particle size of 100 microns or less in small particles, to further reduce the turbidity, to meet the next process of the water requirements of the protection of the next long-running processes.
RO system:
Using reverse osmosis technology for desalination, reverse osmosis membrane was only 0.001 micron pore size, can be harmful to remove dissolved solids and bacteria, viruses, etc., desalination rate of more than 99.6 percent, in line with national standards to produce pure water, the host section contains the security filter, high-pressure pump and reverse osmosis membrane, security filters for the fourth grade and above pre-treatment systems, high-pressure pump is the host of one of the core equipment for the reverse osmosis membrane elements to provide sufficient pressure to overcome the penetration resistance to pressure and run to meet the needs of a device to achieve the rated water.
Pictures:

Model	Outcome capacity (Ton/h )	Motor power (kw)	Membrane	Entrance Diameter (mm)	Size(L*W*H) ( mm)	Weight (Kg)
KM-1	1	1.5	4040	Φ32	1300*600*1400	100
KM-2	2	3	4040	Φ38	1400*600*1400	200
KM-3	3	4	8040	Φ48	1600*750*1750	200
KM-4	4	5	8040	Φ48	2550*750*1750	250
KM-5	5	7	8040	Φ60	2550*750*1750	300
KM-10	10	11	8040	Φ60	3000*800*2000	600
KM-15	15	16	8040	Φ72	3000*1250*2000	840
KM-20	20	30	8040	Φ60	3000*1800*2000	1250

Pics









Trade Information

Trade Terms	EXW,FOB,CFR,CIF or others
MOQ	1set
Port	Shanghai port
Shipment	Ocean or air transportation
Payment Terms	L/C,T/T, Western Union, MoneyGram
Payment condition	30%T/T
Supply Capability	1 Set/Sets per Month
Lead Time	About 30 days


Related Products

 Trade Information

Trade Terms	EXW,FOB,CFR,CIF or others
MOQ	1set
Port	Shanghai port
Shipment	Ocean or air transportation
Payment Terms	L/C,T/T, Western Union, MoneyGram
Payment condition	30%T/T
Supply Capability	1 Set/Sets per Month
Lead Time	About 30 days


Cooperate Clients


Company Information


Zhangjiagang King Machine Co., Ltd,is a direct manufacturer and exporter specializing in water treatment plants, beverage filling machine, packing machine, bottle blowing machine, injection   moulding machine and spare parts of filling line.
Our factory was established in the year of 1995, with the long history of accumulated experience in filling machine industry in south Jiangsu. There are many development engineer of filling machine in our company. We devote ourselves to the development, research and production of liquid food and beverage packing and filling industry.
King Machine cooperated with many customers in recent years, we win the trust of customers from our high-quality products. And we are looking forward to the future cooperation with you if our products can impress you deeply.

After Sale Service

1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.
2. We supply below necessary documents with the machine:
    a. Machine layout
    b. Electricity diagram
    c. Machine certificate
    d. General manual book/maintenance book
