3A Sanitary Ss Butterfly Valve with Positioner
Donjoy Technology Co., Ltd.- Processing Material：Natural Ingredients
- Application：Beverage, Sanitary Industry,Water Industrial Usage
- Operation：by Air Actuator
- Polish：Internal 0.8 Micrometer
- Gasket：EPDM,Silicone,Viton,FPM
- Size：DN10-DN300, 1,2′′-304′′
Base Info
- Material：Stainless Steel 304,316L
- Connection Type：Weld,Clamp,Thread,Flange
- Max Pressure：10bar
- Keyword：Proportional Adjustment Butterfly Valve
- Product Name：Proportional Adjustment Butterfly Valve
- Transport Package：Carton,Plywood Case
- Specification：DIN,SMS,3A,ISO,IDF
- Trademark：DONJOY
- Origin：Wenzhou, Zhejiang, China
- HS Code：8481804090
- Production Capacity：200, 000PCS
Description
Basic Info.
Material Stainless Steel 304,316L Connection Type Weld,Clamp,Thread,Flange Max Pressure 10bar Keyword Proportional Adjustment Butterfly Valve Product Name Proportional Adjustment Butterfly Valve Transport Package Carton/Plywood Case Specification DIN/SMS/3A/ISO/IDF Trademark DONJOY Origin Wenzhou, Zhejiang, China HS Code 8481804090 Production Capacity 200, 000PCSProduct Description

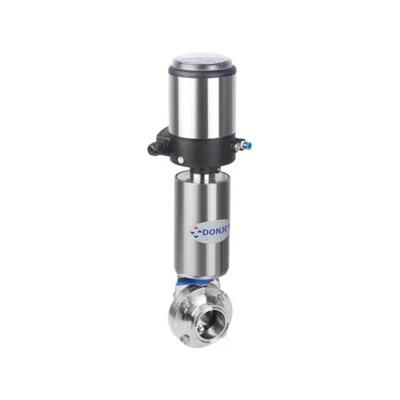

3A Sanitary SS Butterfly Valve with Positioner
Specification:
| Product Name: | 3A Sanitary SS316 Butterfly Valve with Positioner |
| Valve Body Material: | SS304/SS316L |
| Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
| Max working pressure: | 10Bar |
| Availably size: | DN10-DN300, 1/2"-12" |
| Max temperature | 120 ºC |
| Availably connection: | Clamp / weld / thread/ weld thread/ flange |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual,Pneumatic,Electric |
| Control: | Sensor, C-TOP, C-top controller(AS-I) |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Actuator application: | Stainless steel actuator/ Horizontal pneumatic actuator |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |
| Packaging Details: | Bubble pack for each valve. Outside packing are carton or plywood cases. Or as per the request of customers. |
| Control | Sensor, C-TOP, c-top controller(AS-I) |
| Actuator | Pneumatic stainless steel actuator, pneumatic aluminum actuator, electric actuator |
| Delivery d etails: | Usually within 20 days after receiving T/T down payment |
Feature:
1.Donjoy manufacture more than 27 years,which means we had upgraded and optimized many times,solve the problem in advance to ensure best performance and best application.
2.Manufactured more than 3millions pcs
3.Forged body,one time CNC machining, guarantee machining precision.
4.Euro imported gasket,meet FDA standard.
5.With hundreds of options for butterfly valve,manual type.
6.Have certificate of FDA,3-A ,CE.
Connection:
Clamped, welded and threaded,flanged etc.
Packaging Details:
Bubble pack for each valve.
Outside packing is by carton or plywood case.
Delivery details:
Usually within 20 days after receiving T/T down payment.
If you have any inquiry, please leave message below and "Click Send "
