Beer Equipment Micro Brewery 300L 500L 1000L Per Batch
Wenzhou Jinggong Machinery Equipment Co., Ltd.- Processing Material：Natural Ingredients
- Application：Beverage, Beer Brewery
- Customized：Customized
- Certification：CE, ISO9001, SGS
- Power Source：Electric
- Automatic Grade：All Available
Base Info
- Material：SUS304,316
- Warranty：3 Years
- Polishing：Less Than 0.4 μm
- Insulation：50-80 Polyurethane
- Manway：Top or Side
- Washing：360 Degree CIP Cleaning
- Dimension：According to Capacity
- Voltage：3 Phase, 380V 50Hz , 220V 60Hz
- Power：0-70 Kw
- Transport Package：LCL or FCL
- Specification：200L~2000L
- Trademark：Jinggong
- Origin：Zhejiang, China
- HS Code：8438400
- Production Capacity：50 Sets,Year
Description
Comment: All components & parameters can be customized according your requests.
Features & Advantages:
Features & Advantages:

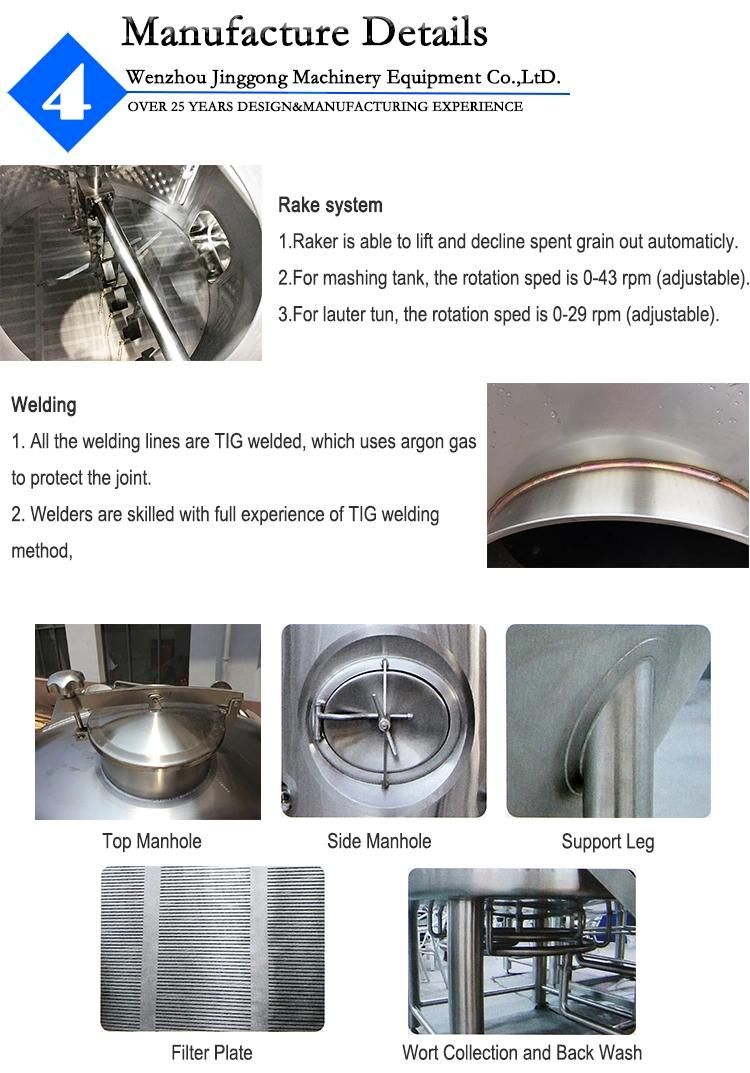

- Mashing tun / Boiling tun: Use steam heat method, with designed jacket and agitation device to ensure the heating rate while avoiding coking, saving steam.
- Lauter tun / Whirlpool tun: Easy assembly, with detachable combination of arable knife and sieve plate to achieve better stirring effect. Increase the diameter of the central cylinder to improve the effect of stirring and drain rate. The wort outlet is designed according to dynamic study which enables the collection of wort to be faster and more homogeneous. The design on the bottom of whirlpool tun is in line with the characteristic of the sink trub, which separate the clear wort and turb well.
- We can provide customization according to different design: mash tun with lauter tun, boiling tun with whirlpool tun, or separate 4 vessels combination.
- All tanks are manufactured by SUS304/316, with an inner polish of less than 0.4µm and outer polish of less than 0.8µm.
