Customised New Design Street Electric Tricycle Food Cart /Mobile Food Truck
Qingdao Tune Machinery Co., Ltd.- Certification：CE, ISO9001
- Power Source：Electric
- Automatic Grade：Automatic
- Application：Ice Cream, Candy, Chocolate, Chips, Biscuit
- Customized：Customized
- Voltage：110~380V, 50Hz~60Hz
Base Info
- Color：Stainless Steel or Customized
- Power(Kw)：0~20
- Dimension(L*W*H)：450*210*260cm
- Raw Material：Milk, Corn, Wheat, Fruit, Nuts, Water, Soybean,
- Electrc Circuit：Cables Built-in
- Transport Package：Wooden Case
- Trademark：TUNE
- Origin：China
Description
Battery Voltage
48v(6pis battry)
Motor
1.8kw
Outside Size
4747x2140x2332mm
Allowed Maximum Load
400kg
Usage Area
10.9m2
Driven Distance
100km
Material
Stainless steel
Sales Window
One side or two sides
Drive Form
Electric
Additional Provision
Outdoor parasols,lightbox,LED light,multifunctional gas stove,surround speaker
Chassis Structure
Chassis frame made by galvanized steel pipe,very solid
Brake System
Included
Axle&Suspension
Two axles with 5 leaves spring with high speed bearing
Warranty
1 year
Floor
Checked aluminum sheet or vinyl floor,easy to be cleaned
Water System
Heavy-duty water system plumbing with automatic water pump
Electric System
LED light,cable socket switch circuit breaker based on global standard
Note:
1. Body size is not fixed as above, you can have your own size and design. Customization is available.
2. Brake is included once the body lenght is no shorter than 400CM (13.1ft). Shorter size can have the brake system installed at certain cost, please contact us for details.
3. Any uncertain trailer design, don't be hesitate to talk to us.
Standard Configuration of TUNE High Quality Mobile Food Truck for Sale Europe
Integral steel frame construction: square tube :100*50*4mm + 60*40*2mm.
Suspension components: 5-leaf springs with axle; treated with rust resistant protective coating.
Maximum speed(Kilometer/hour): 40KM/H. Special made chassis is optional for higher speed.
Body
Wall frame is welded by square tubes :40*60*2mm.
External wall is high quality stainless steel.
Middle layer is 5cm heat insulation.
Internal wall is High quality stainless steel.
One selling window available in front , normial size is 2000*1100mm. Other window size is available.
with waterproof sealing strip
Electric accessories
General control ,automatic power failure protector.
Two rows of led spotlights on the ceiling and selling window.
All standard sockets, quantity as needed.
High visibility tail light signal system. (brake, turn, back)
Floor
3 layers: 2mm non-slip embossed aluminum + 10mm plywood or pvc +1mm galvanized sheet
Wheel
double axles(four wheel); 14 or 15 inch tires; one guide wheel
Water system
Double water sinks with hot and cold water taps. 3 compartment sink is optional
A fresh water tank, a waste water tank (25L/tank standard). Other capacity tank is available.
12V mini water pump
on/off control switch
Working benches
Two-layer stainless steel work bench on each side W*H: 450*900mm. Other size is available .
Inside layout customization is available
Outside extension / folding counter
Note: Available means for free exchange. Optional means extra cost.

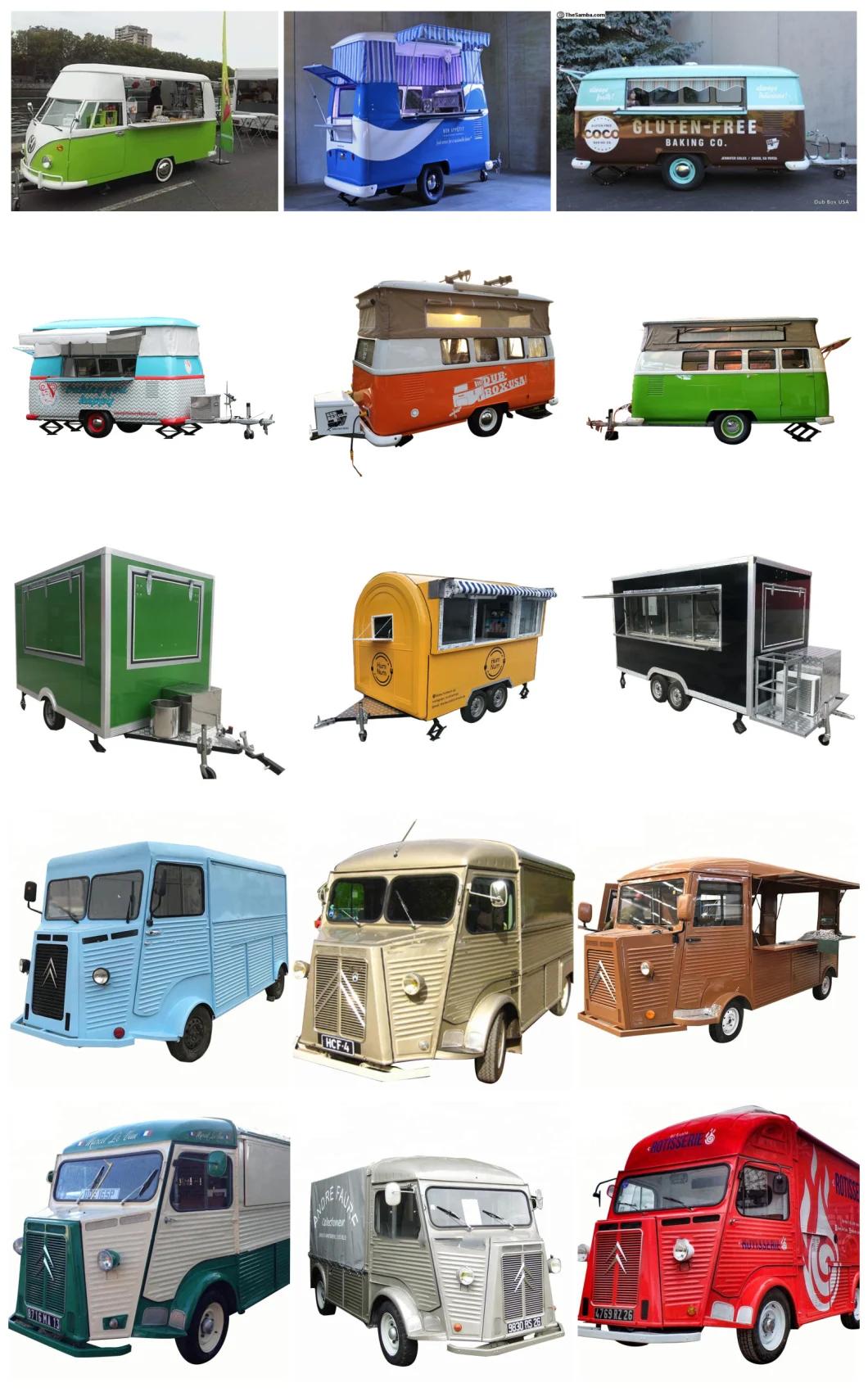

Related Product

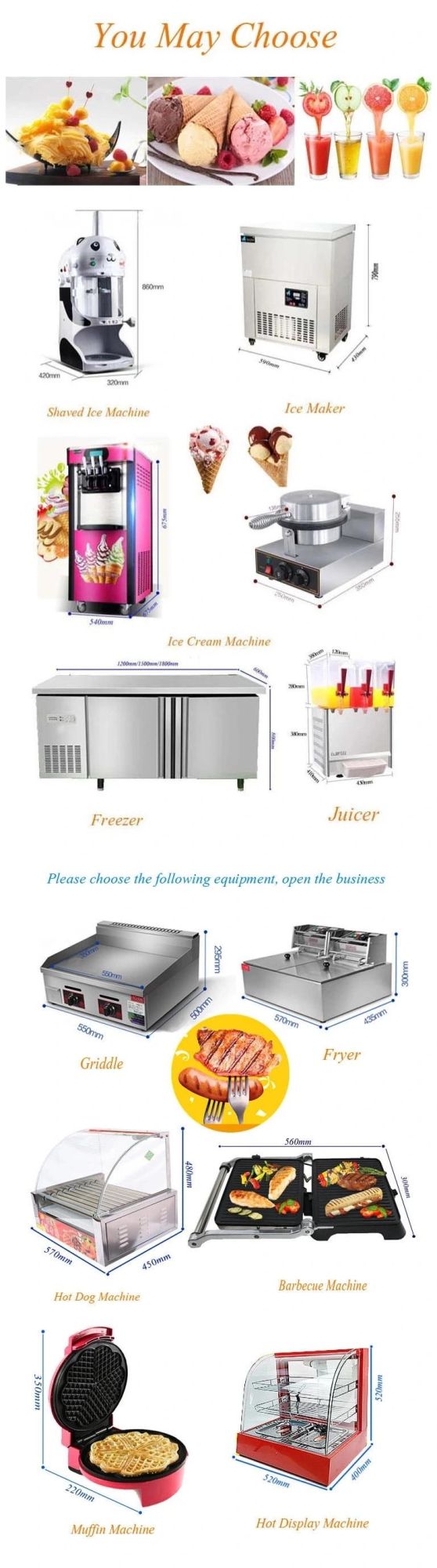

Other Product
Our Service

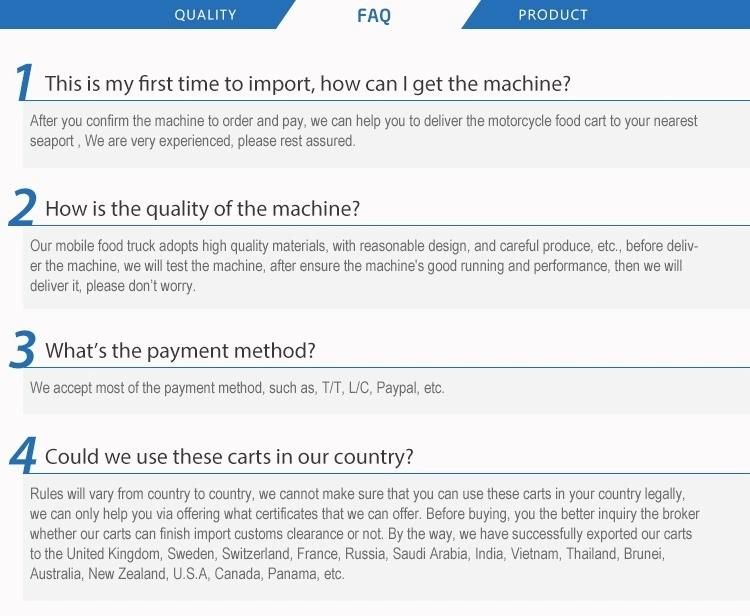

FAQ
