• Model NO.：TSDG-2
• Shape：Rectangular
• Certificate：SGS, ISO9001
• Applications：Fruits, Vegetables, Seafoods
• Drying Plates：7 Pieces
• Drying Time：1-24hours
• Transport Package：Wrapped in Film, Wooden Case
• Specification：1945x1460x1660mm
• Trademark：AMBITIOUS
• Origin：China
• HS Code：8438600000
• Production Capacity：50pieces,Year

Basic Info.

Model NO. TSDG-2 Shape Rectangular Certificate SGS, ISO9001 Applications Fruits, Vegetables, Seafoods Drying Plates 7 Pieces Drying Time 1-24hours Transport Package Wrapped in Film, Wooden Case Specification 1945x1460x1660mm Trademark AMBITIOUS Origin China HS Code 8438600000 Production Capacity 50pieces/Year

Product Description

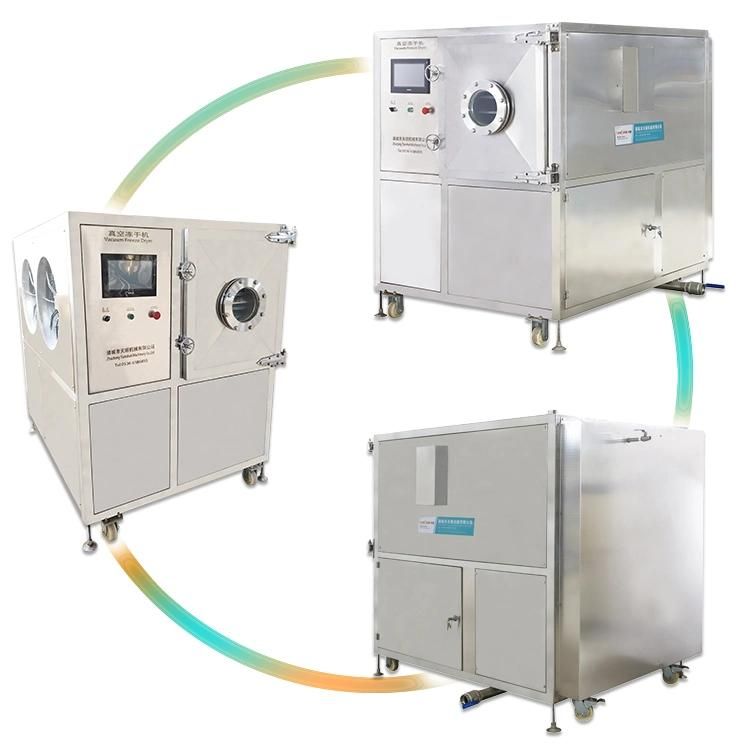

Automatic Lyophilization Freeze Dryer Dried Vegetable Lyophilizer Machine



Advantages of freeze-dried vegetables:

Long shelflife,original shape,color and smell remained, no loss of nutrients,is high value-added product,is a kind of pure natural vegetable powder accessories after crushed into powder.

1. -Machine Introduction

Freeze drying is to freeze the water in the materials into a solid by freezing, and then sublimate the solid water ice into water vapor by the vacuum and light heating, so as to achieve the purpose of dehydration.

Compared with the heating drying method, freeze drying has many advantages, such as low volatile loss, no preservative, keeping the active ingredients in the material. Therefore, freeze-drying technology is widely used in pharmaceutical, food, scientific research and other fields.

Generally speaking, freeze-drying machine is mainly composed of refrigeration system, vacuum system, heating system and control system.



Features:

*Protects many heat sensitive substances in the materials.

*When drying at low temperature, the loss of some volatile components in the materials is very small.

*In the freeze-drying process, the growth of microorganisms and the role of enzymes can not be carried out.

*The volume is almost unchanged and the original structure is maintained.

*The surface hardening of the material will not be caused because the moisture in the material exists in the form of ice crystal after freeze drying.

*The materials is loose, porous and spongy after freezing dried, so can dissolve quickly and completely, and almost immediately returns to its original shape.

*Since drying is carried out under vacuum, there is little oxygen, so some easily oxidized substances are protected.

*Freeze drying can remove more than 95% ~ 99% of moisture, so that the dried products can be preserved for a long time without deterioration.

*Because the material is in the freezing state and the temperature is very low, so the requirement of heat source is not high.


2. -Technical Data


Model	TSDG-2
Control	PLC
Working Type	Quick freezing
Material	304Stainless steel
Drying area	2.5m²
Charge amount	25kg
Tray size	685x480mm
Tray quantity	7 pieces
Tray type	Disk or mesh
Shelf temperature	-55~120ºC
Vacuum pump	Rotary vane pump
Working vacuum temperature	≤130Pa
Ultimate vacuum	<10Pa
Defrosting mode	Hot water spray
Compressor	Fully enclosed inlet
Voltage	Single or three phase
Working Temperature	≤40ºC
Power Rating	19kw
Dimension L*W*H	1945x1460x1660mm

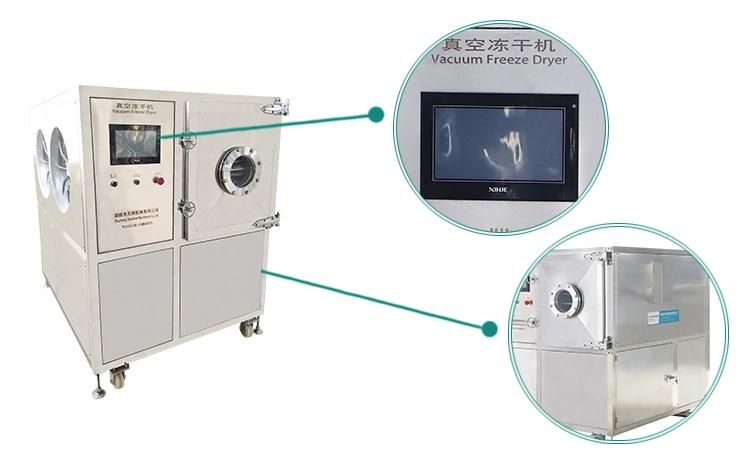

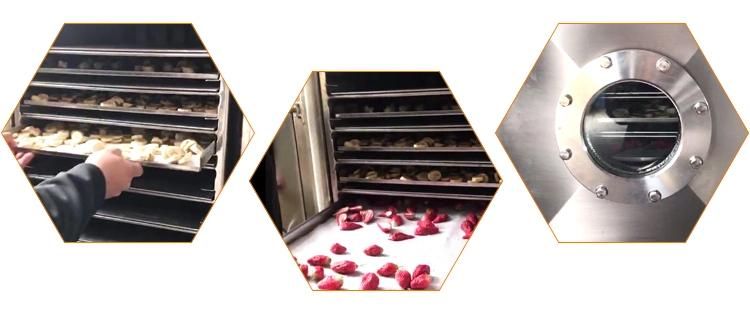

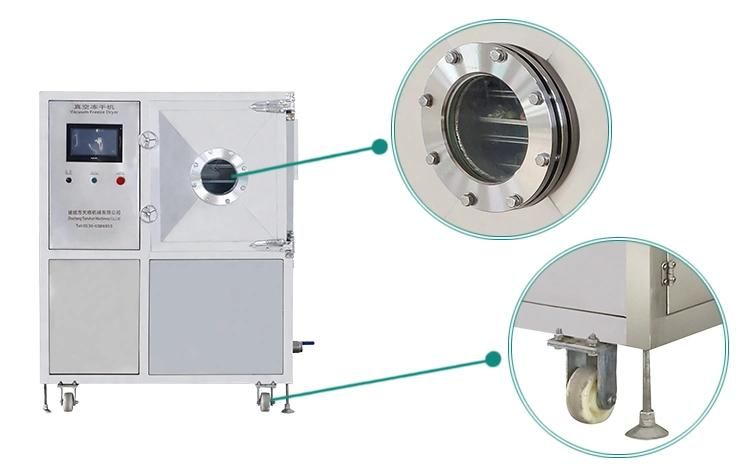

3. -Details

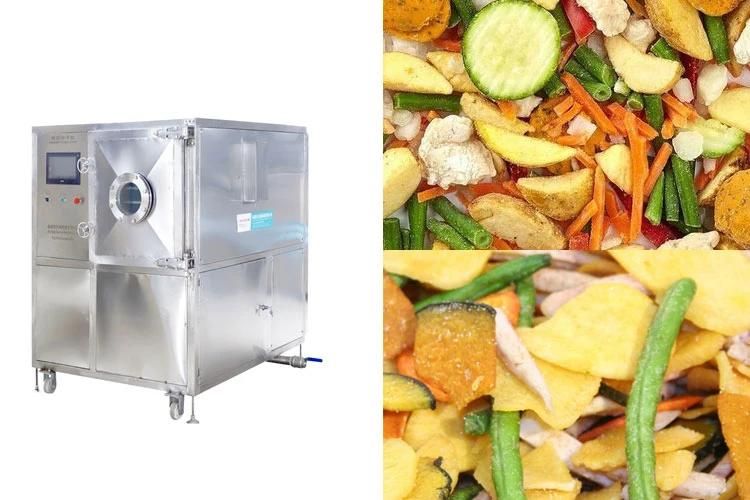

4. -Suitable For Products

Fruits:Raspberry,lemon,blueberry,strawberry,apple,banana,longan,orange,pitaya,mango,hawthorn,blackberry,peach, kiwifruit,dates,peanut,etc.

Vegetables:Such as broccoli,green onions,carrots,cucumbers,beans,ginger,onions,garlic and so on.

Aquatic products: Such as shrimp,small and big fishes,kelp,etc.

Pet foods,dog foods,cat foods,etc.

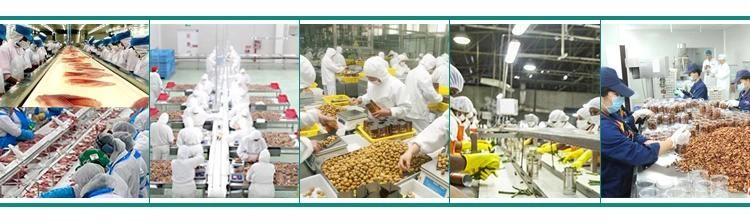

5. -Using Scene

6. -Applications

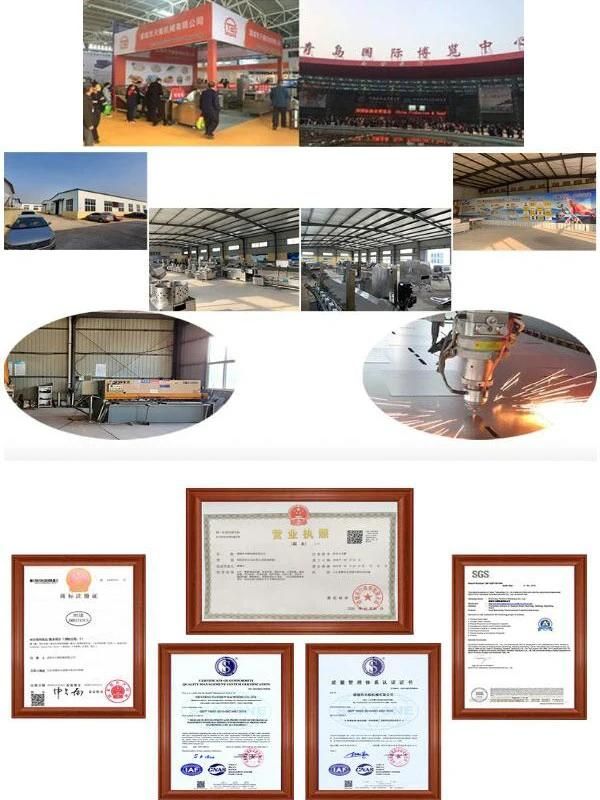

7. -Company Profile

Zhucheng Tianshun Machinery Co., Ltd. is a modern food machinery manufacturer integrating R&D, manufacturing, marketing and after-sales.

Main products including food processing machinery, including:

Vegetable/fruits washing machines;
Vegetable peeling machines;
Frying machines;
Coating&blender equipment;
Flavouring machines;
Blancher;
Hot/cool air drying machines;
Vacuum packaging machines;
Vegetable/fruits cutter;
Pasteurizer equipment;
Vacuum fryer;
Freeze dryer;
Liquid nitrogen freezer;
Complete production lines,potato chips/french fries production line,plantain chips line,vegetable/fruits processing line,etc.

They are mainly used for processing vegetable, fruits, pickled foods, chicken, meat, seafood, and so on. All of the products could be customized produce in individual or a complete line.



8. -Our Clients


9. -Packing And Shipment
