Cream Homogenizer Milk Homogenizer Price Yogurt Homogenizer
Shanghai Kaiquan Machine Valve Co., Ltd.- After-sales Service:Online Service
- Warranty:One Year
- Process:Mild Processing
- Power Source:Electric
- Certification:CE, ISO9001
- Automatic Grade:Automatic
Base Info
- Model NO.:KQ25MPA
- Application:Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage
- Customized:Customized
- Name:Cream Homogenizer Milk Homogenizer Price Yogurt H
- Material:Stainless Steel 304 ,316
- Capacity:500L,H--10000L,H
- Pressure:250bar to 700bar
- Homogenizer Certificate:CE
- Homogenizer Appication:Milk , Juice, Beverage, Butter, Honey, Cream
- Motor:Siemens ,ABB,China Brand
- Homogenizer Pressure:Two Stage
- Homogenizer Working Life:More Than 10years
- Homogenizer Spare Parts:Provide

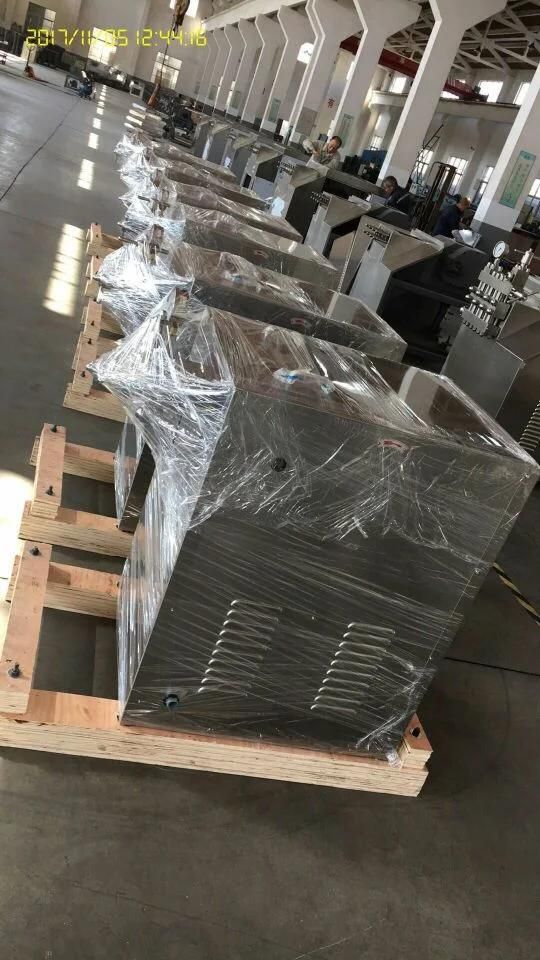

- Packing:Wooden Box
- OEM:Yes
- Spare Parts:Available
- MOQ:1set
- Cooling:Tap Water
- Transport Package:Standard Wooden Box
- Specification:CE
- Trademark:KAIQUAN
- Origin:Shanghai, China
- HS Code:8479820090
- Production Capacity:100 Units,Month
Description
Basic Info.
Model NO. KQ25MPA Application Milk, Yogurt, Milk Powder, Dairy, Milk, Juice, Beverage Customized Customized Name Cream Homogenizer Milk Homogenizer Price Yogurt H Material Stainless Steel 304 /316 Capacity 500L/H--10000L/H Pressure 250bar to 700bar Homogenizer Certificate CE Homogenizer Appication Milk , Juice, Beverage, Butter, Honey, Cream Motor Siemens /ABB/China Brand Homogenizer Pressure Two Stage Homogenizer Working Life More Than 10years Homogenizer Spare Parts Provide Packing Wooden Box OEM Yes Spare Parts Available MOQ 1set Cooling Tap Water Transport Package Standard Wooden Box Specification CE Trademark KAIQUAN Origin Shanghai, China HS Code 8479820090 Production Capacity 100 Units/MonthProduct Description

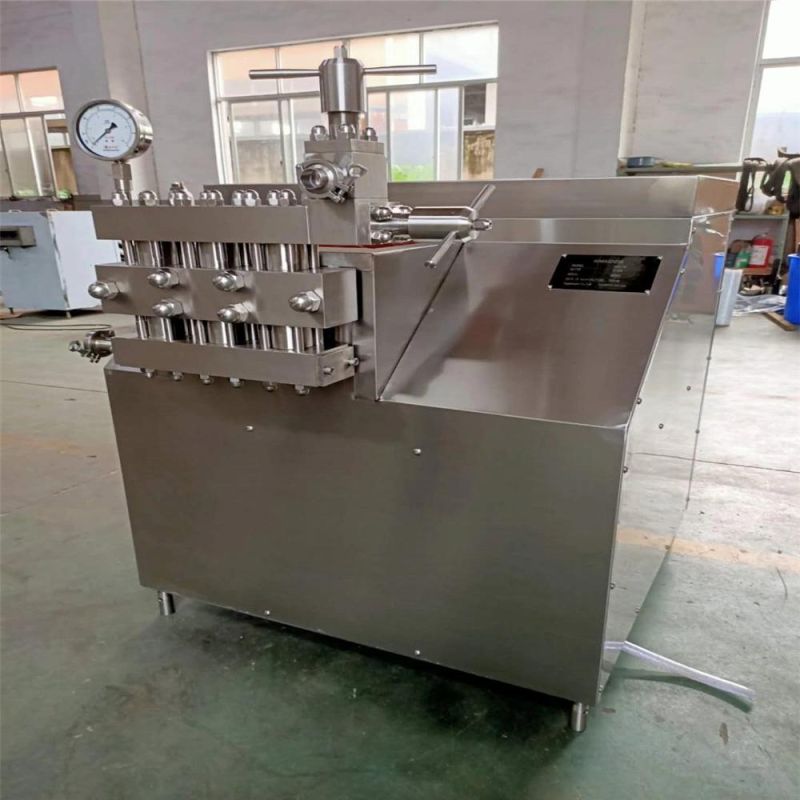

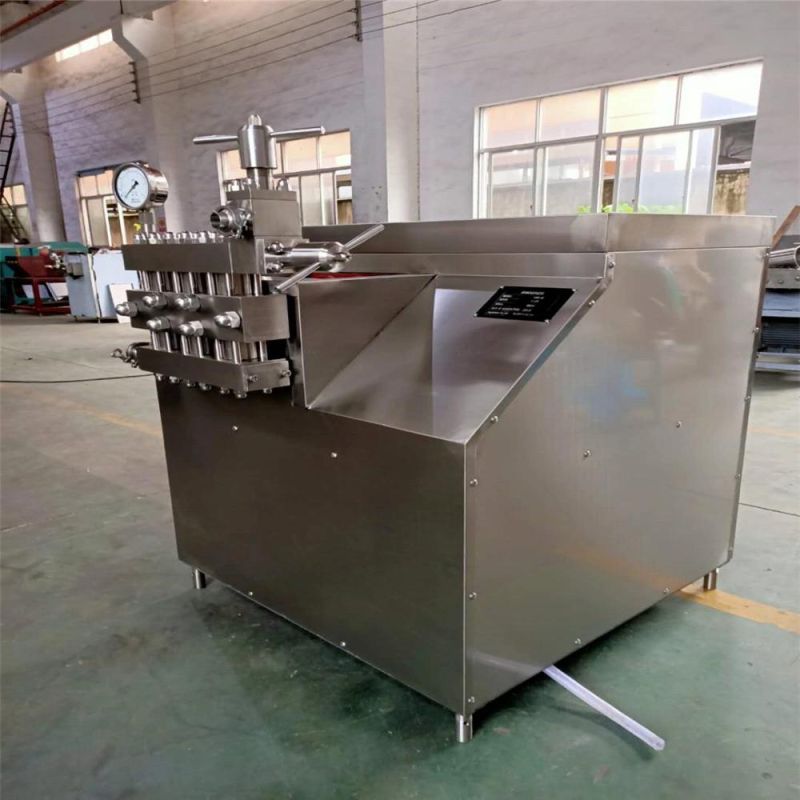

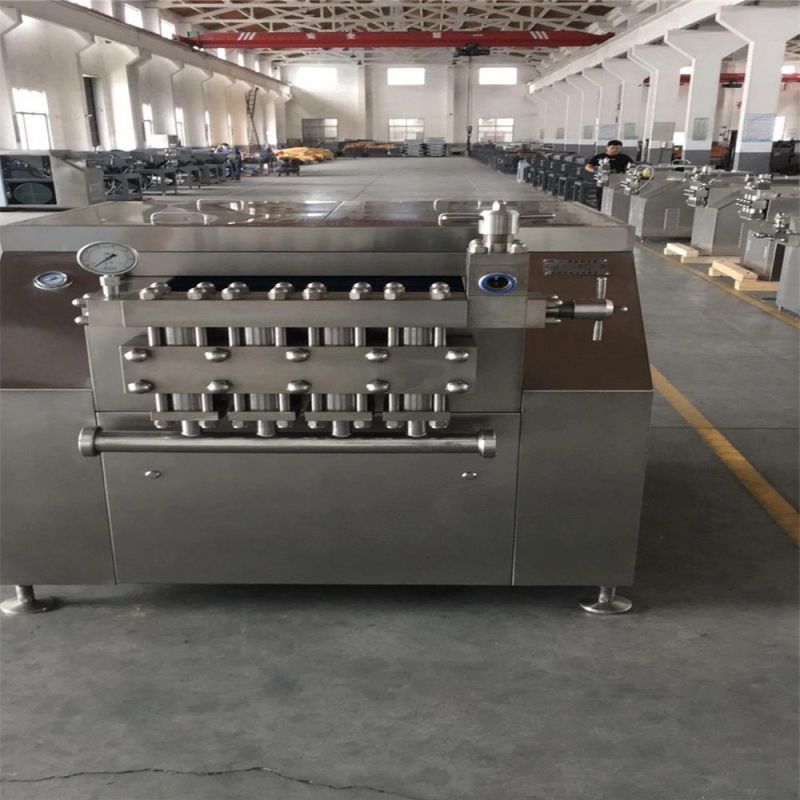

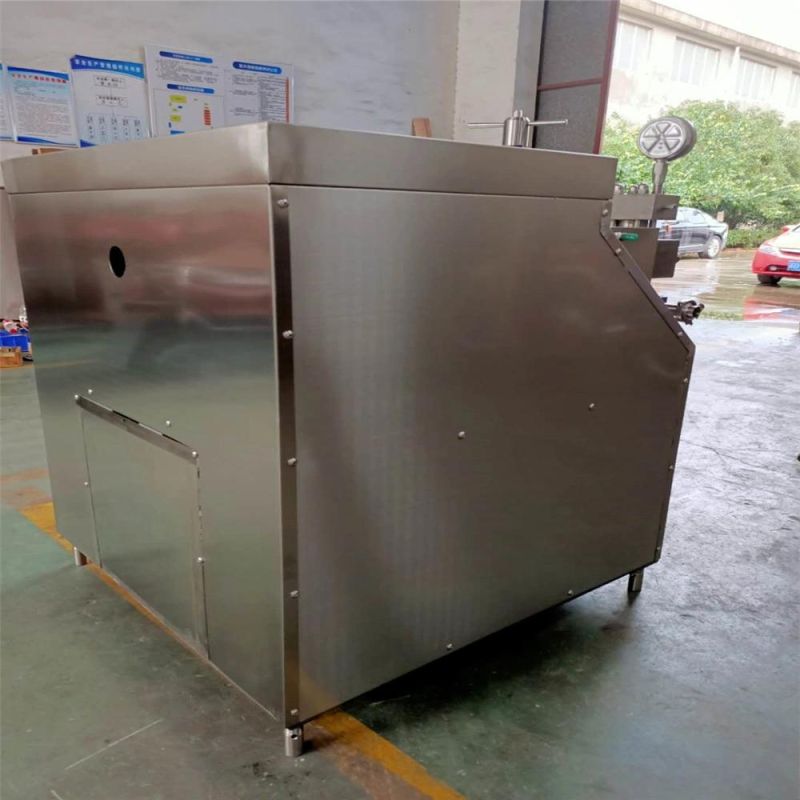

CE Certificated Best Price Shanghai High Pressure Homogenizer/Milk HomogenizerCream Homogenizer Milk Homogenizer Price Yogurt Homogenizer








Model No. Technical parameter | KQ0.5-25 | KQ1-25 | KQ1.5-25 | KQ2-25 | KQ2.5-25 | GJB3000-25 KQ3-25 | KQ5-25 |
Rated pressure(MPa) | 25 | 25 | 25 | 25 | 25 | 25 | 25 |
Rated flow ( Liters/H ) | 500 | 1000 | 1500 | 2000 | 2500 | 3000 | 5000 |
Medium temperature(C) | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 | ≤85 |
Feeding pipe diameter(mm) | 25 | 25 | 25 | 25 | 25 | 32 | 40 |
Discharge pipe diameter(mm) | 15 | 15 | 20 | 20 | 20 | 20 | 25 |
Power of motor(Kw) | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 45 |
Volt and Electricity Flow | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ | 380V,50HZ | 220V,60HZ,3PH | 380V,50HZ | 380V,50HZ |
Outline dimension (m) Length * width * height | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.16×0.9×1.24 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 1.4×1.1×1.42 | 2.2×1.45×1.1 |
Weight(Tons) | 0.4 | 0.5 | 1.25 | 1.25 | 1.25 | 1.25 | 1.7 |

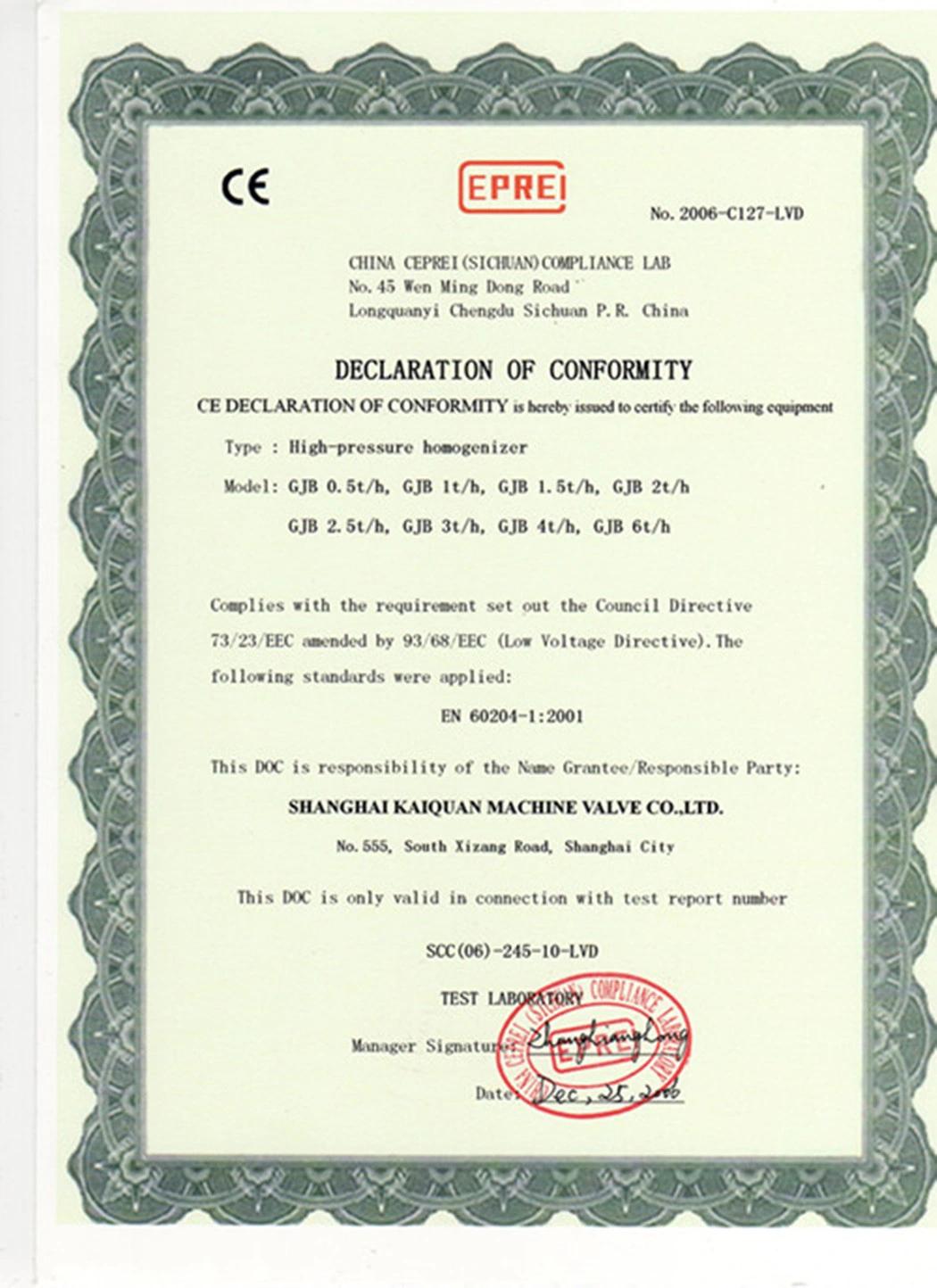

CE CERTIFICATED HOMOGENIZER FOR MILK, JUICE, DAIRY, ICECREAM, SOYBEAN MILK, HONEY
Soybean milk homogenizer, 40MPA homogenizer
Tea drinks homogenizer, juice homogenizer
homogenizer pumps
High pressure homogenization is a standard industrial process for dairy products, to improve their stability and shelf life
series is the kind of equipment which can homogenize the liquid material and make it become high-pressure spray. The high pressure homogenizer pump reciprocates the pump position, high press the liquid, fully mixed and refined the material.
The high pressure homogenizer can use to homogenize the dairy product material in high pressure, refine the fat globule, prevent or decrease the stratifying of the liquid material; Make the product much more nicety, to prove the quality of the product.
The high pressure homogenizer pump also the important equipment of the powder manufacture. (Such as pharmaceutical industry, chemical industry, etc. )
Cream Homogenizer Milk Homogenizer Price Yogurt Homogenizer .
