• Model NO.：5t 10t 20t 30t 50t 100t 150t 200t 300t 500t
• Condition：New
• Customized：Non-Customized
• After-Sales Service Provide：Engineers Available to Service Overseas
• Capacity：5t 10t 20t 30t 50t 100t 200t 300t 500t
• Certification：ISO9001
• Color：as Your Demand
• Conditon：New
• Material：Steel
• Branch Offices：South Africa, Zambia
• Warranty Time：One Year
• Brand Name：HDF
• Processing Type：Flour Mill Machine for Wheat Maize Corn
• Specification：CE
• Origin：China
• HS Code：8437800000
• Production Capacity：5-1500t


Item
60T wheat flour milling machine
1.
Cleaning Technology
3 screen, 2 scour, 2 destoner, 2 damper, and 3 magnetic separator.
2.
Technology milling
7 sets of FMF50×2 Double-roller mill, 4 sets of Double-section high efficiency, square sifter  consist of the milling technology of four break, 4 reduction, 1 scratch, 2 bran brusher.

3.
Production capacity
60 tons of wheat flour/24H
4.
Power supply
About 140kW
5.
Voltage
380V
6.
Workshop style and dimension
36×9×8
7.
Container
40'×2

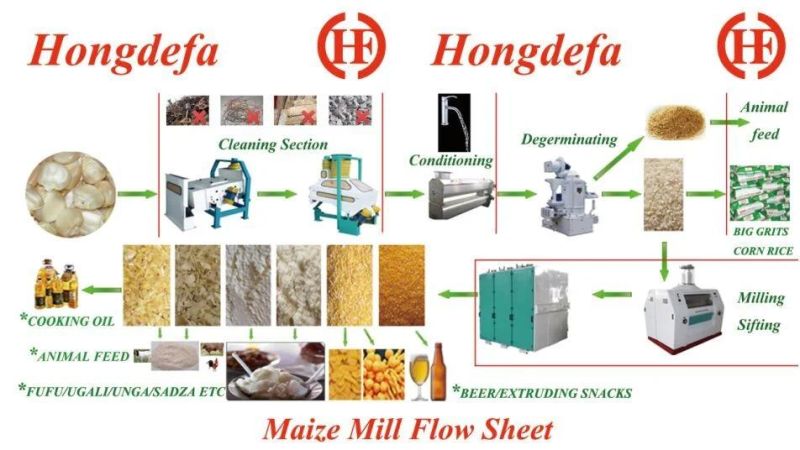

working principle of wheat/maize flour milling machine

Our wheat flour milling machine line include clean part, flour milling part and packing part.
1. The clean part:
Includes beating, screening, destoner, magnetic separator  and dampening. Different capacity machine line has different number of beat, screen and stoner.
To ensure the flour Quality and the working life of the mill by removing the impurities in the wheat before go to mill,
Beat: through the beat function of the wheat scourer, wheat brusher to remove dust sand small seed, bacterial count and insect seed.
Screening: to remove large and small impurities in the wheat seed by make the wheat go through vibrating sieve and aspiration sieve.
Destoner: mainly remove stone in the wheat to protect them milled into the flour and also protect the roller on the milling process.
Magnetic separator: remove metal material in the wheat to keep the roller safe and  also avoid flour exploration accident of spark caused  by the impact  of the metal impurities and the machine.
Dampening: dampening the wheat bran before mill to ensure the bran's integrity during the milling processing, avoid the bran going into the flour to keep flour quality.
2. The flour milling part:
Include different number of mill and sifter to mill the wheat and separate the flour and bran
(1) Mill: mill the wheat to break the integrity by the roller moving
(2) Sifter: to separate the flour and bran, also separate large size and small size to enssure flour quality.
3. Packing part.
The packing part can be manual one also can be auto one, this can be designed according to requirement and machine capacity.

friendly cooperation of wheat flour milling machine

Our products are exported to Australian, America, Canada, Belgium, Egypt, Algeria, Zambia, Congo, Kenya, Ethiopia, Uganda, Yemen, Tanzania, Tajikistan, Afghanistan, Vietnam, Israel, Mozambique,Kazajastan and other country.


why us for wheat flour milling machine?
we provide a turnkey project of flour machienry, including special design, installation, commissioning and training workers.

We have installed many flour production line in the word, mostly in Africa and the Middle East. You can go to our web browsing photos.

All of our new equipment to contain one year free spare parts, and Quality guarantee period of one year.

At the same time our company will carry on the lifelong service to our product.
