• Model NO.：DHN
• Name：Milk Cream Separator
• Discharge Mode：Automatic
• Moc：Ss
• Standard：GMP
• Function：Liquid-Liquid,Liquid-Liquid-Solid
• Sludging-Mode：PLC
• Product：100--10000L,H
• Temperature：35~55
• Material：Stainless Steel
• Transport Package：Wooden Packages
• Specification：Model Choosing
• Trademark：Reyes
• Origin：China
• HS Code：8421192000
• Production Capacity：500sets,Year

Basic Info.

Model NO. DHN Name Milk Cream Separator Discharge Mode Automatic Moc Ss Standard GMP Function Liquid-Liquid,Liquid-Liquid-Solid Sludging-Mode PLC Product 100--10000L/H Temperature 35~55 Material Stainless Steel Transport Package Wooden Packages Specification Model Choosing Trademark Reyes Origin China HS Code 8421192000 Production Capacity 500sets/Year

Product Description

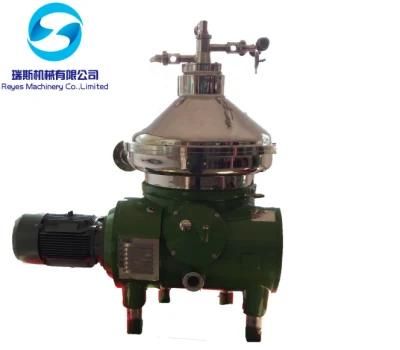

Milk  Cream Separator

Application

DHN series dairy separator is the most important equipment in dairy industry. Mainly used in the skim milk, butter, casein, cheese production, anhydrous butter production process, removing cream and foreign impurities in the milk. Similar materials can also be used for clarification and purification, such as coconut milk, fish oil, lemon oil.
This product absorbs the advantage of the same kind foreign .Product in Germany and Russia. All the parts that may contact the feedstock are made of stainless steel. Availably reduce the chemical effect of the feedstock and the machine spare parts.

Power drive adopts the friction clutch, Transfer power by the fluid, start reliably, prevent overland. The bearings are SKF grade in Sweden, guarantee working precision of the machine.
The separator adopts the PLC automatic control system, can carry out automatic de-slugging, ability of fitness is stronger, automatic degree is high.







Mainly technology data of DHN Milk Cream separator

Model	Treatment Capacity per hour	Presure (MPa)	Ourlint Pressure (MPa)	Motor Power (Kw)	Weight (Kg)	Out-Line Dimension (mm)
DHN 360	2000- 5000	0.05	0.1-0.35	7.5	1200	1530 *1150* 1500
DHN 470	5000- 10000	0.05	0.1-0.4	15	1600	1800 *1200* 1750
DHN 550	10000- 20000	0.05	0.1-0.4	22	2300	1950 *1550* 1960

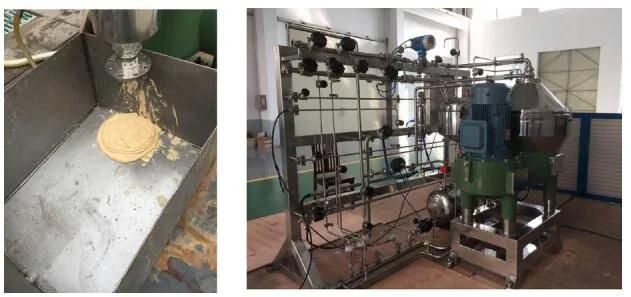

DHN series Working separation show in customer's factory.

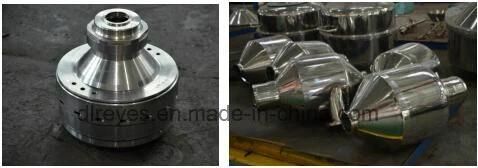

Spare Parts






 Company Profile





Packaging & Shipping




 Our services  As Follows:

Provide free technical training, guidance and information of accessories.

Our technical staff could instruct our customers on the installation of connector and accessories on site, and deal with technical and quality issues.

Once receive the customer complaints, we will response within 24 hours.

Free maintenance and replacement will be provided if defects result from quality failure of our product.

Our company will provide perfect after-sale services and technical support.
