• Model NO.：GHRXH-B
• Operation：Intermittent
• Energy：Heat Sterilization
• Property：Physical Sterilization
• Type：Microwave Sterilization Equipment
• Material：304 Stainless Steel or 316L
• Control System：PLC Control
• Trademark：GDHP
• Origin：Guangzhou, China
• HS Code：9422301090
• Production Capacity：30 Sets, Month

Basic Info.

Model NO. GHRXH-B Operation Intermittent Energy Heat Sterilization Property Physical Sterilization Type Microwave Sterilization Equipment Material 304 Stainless Steel or 316L Control System PLC Control Trademark GDHP Origin Guangzhou, China HS Code 9422301090 Production Capacity 30 Sets/ Month

Product Description

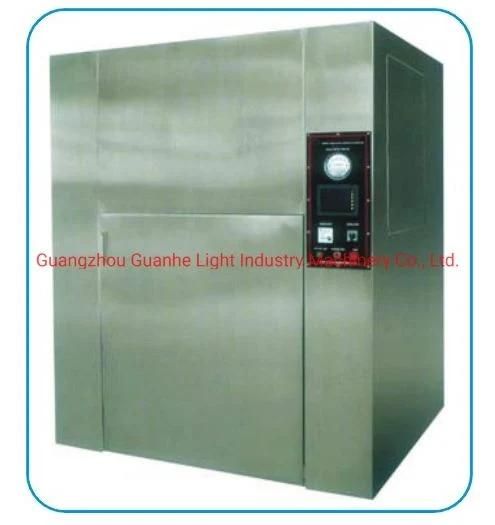

Hunder-grade cleaning heated-air circulation dryer for glass bottle Introduction:
   This series of 100-grade cleaning hot-air circulating drier is one of new products that we develop in recent years as we synthesized the characteristic sof electric heat ovens home and abroad. Its elements are solid & reliable, highly automation. It applies to dry and sterilize bottles, glues toppers, aluminum caps in pharmaceutical industry. Oven inlet and outlet and oven inside are also equipped with 100-class high-efficiency filte, completely meeting the requirements of GMP.

Manually heated-air circulation dryer for glass bottle:


Main technical parameters:

Working temperature	maximum 300ºC
Temperature even	±2ºC
The quantity of circulation air fan	1200-1400M3/h
Temperature fluctuate	±1ºC
The way of cool	use wind-cool (according to your need use water-cool)
The way of hot	electric-heat pipe
Weight	about 600kg
Single machine noise	≤70dB
Voltage	380V 50Hz
Material	304L-316L
Dimension of working room(W×B×H) (mm)	Effective space
R×H-B-1     800×800×1000	0.64 m3
R×H-B-2     800×1000×1000	0.8 m3
R×H-B-3     800×1200×1000	0.96 m3
Overall dimension	Installed power
RXH-B-1   1600×1260×1950	14kw
RXH-B-2     1600×1460×1950	14kw
RXH-B-3     1600×1660×1950	17kw

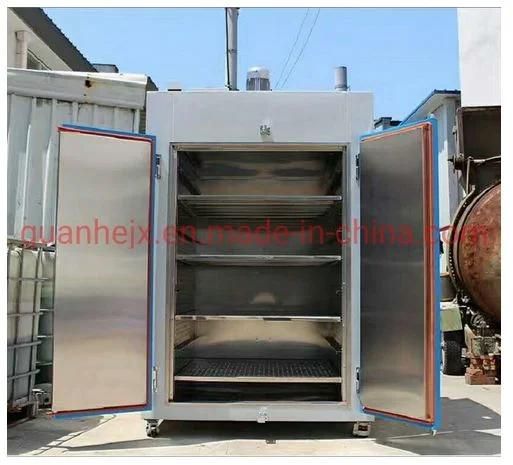

Manually heated air circulation dryer for glass bottles:


Characteristics:
.Using Siemens liquid crystal display touch panel (PT) and Omron PLC to control the whole process.
.Display parameter, computer auto type and record and fault alarm display.
.Complete 100-class laminar flow purification system.
.Circulation airflow adjustable, ensure the even temperature in the oven.
.The equipment of motor-driven open-close door links.
.Can set water-cooling system according to customers' requirement.
.Set top,middle,bottom measuring temperature point in oven, it"s convenient for GMP to authenticate.

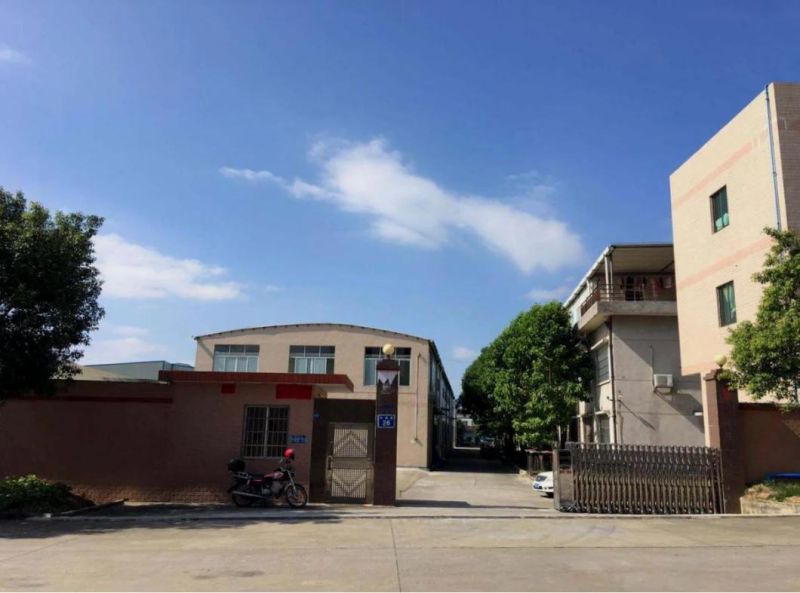

Our factory is located in the core city of Pearl River - Guangzhou:

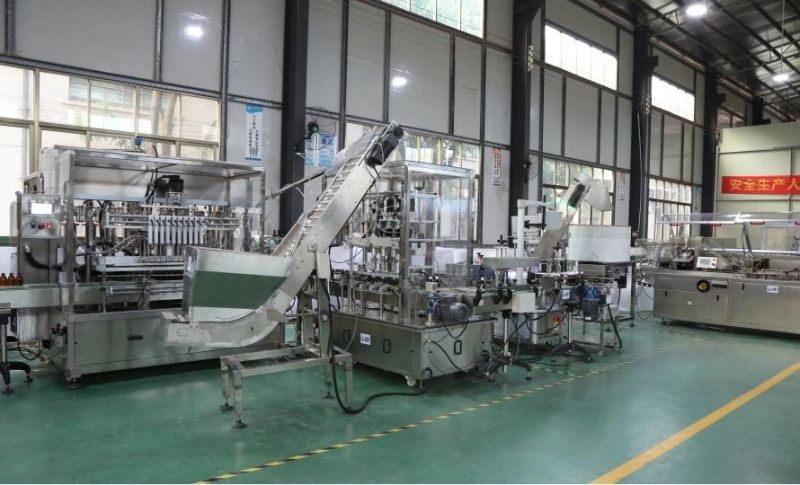

We also manufacture the piston-type filling machine and the unscrambling machine:


Team work is the essence of our enterprise:
