• Model NO.：TUNE-T500
• After-Sales Service Provided：Engineers Available to Service Machinery Overseas
• Material：Stainless Steel 304,316
• Voltage：220V,380V
• Heating Method：Electric or Gas
• Output Capacity：500kg,H
• Condition：New
• Accessory：Oil Tank and Extra Oil
• Warranty：1 Year
• Transport Package：Standard Export Packaging
• Trademark：TUNE
• Origin：China
• HS Code：8438600000
• Production Capacity：150set,Month

Basic Info.

Model NO. TUNE-T500 After-Sales Service Provided Engineers Available to Service Machinery Overseas Material Stainless Steel 304/316 Voltage 220V/380V Heating Method Electric or Gas Output Capacity 500kg/H Condition New Accessory Oil Tank and Extra Oil Warranty 1 Year Transport Package Standard Export Packaging Trademark TUNE Origin China HS Code 8438600000 Production Capacity 150set/Month

Product Description

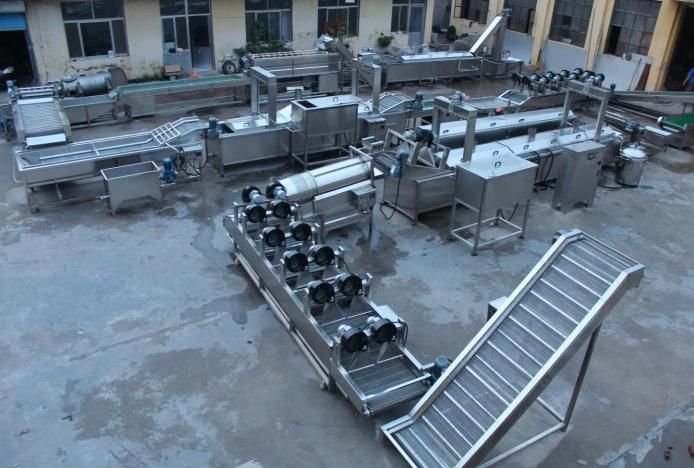

 Frozen French Fries Production Line Machine
 Description:

This is a large output production line to produce good quality frozen French fries. It has the advantages of high automation,simple operation and energy saving.  Frozen French fries can be kept longer than potato chips that are the reason why some noshery and restaurant like cafeteria, McDonald and KFC cook French fries to sell. This production line can process high quality frozen French fries that comply with health standards. And also we supply small scale frozen French fries line to meet your need.

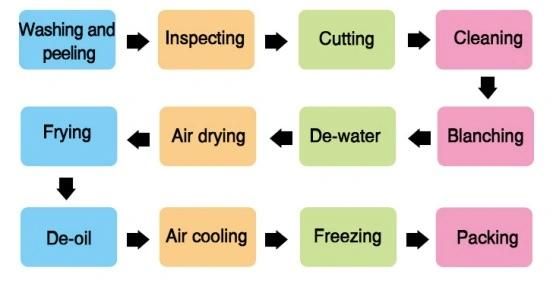

Production process:

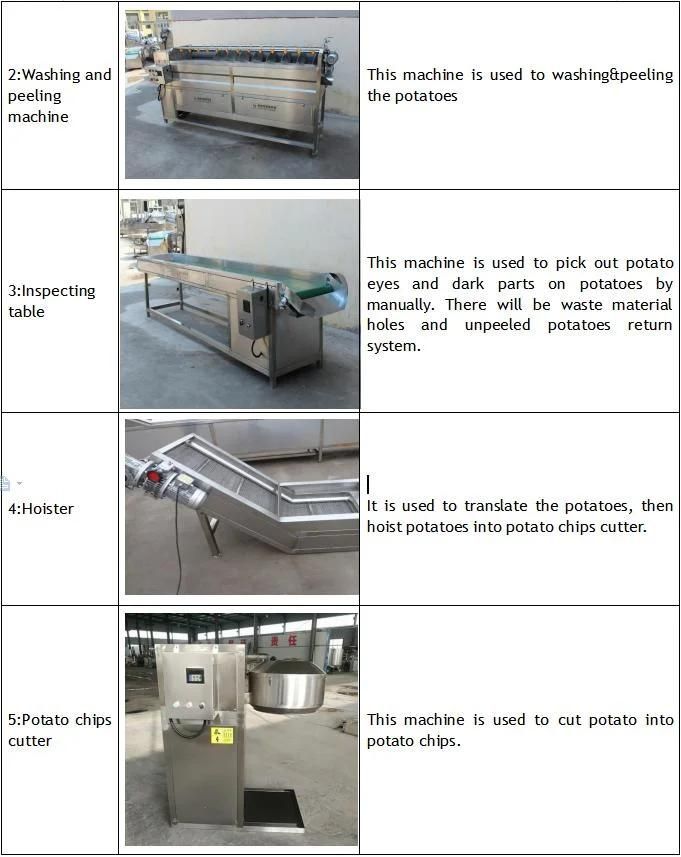

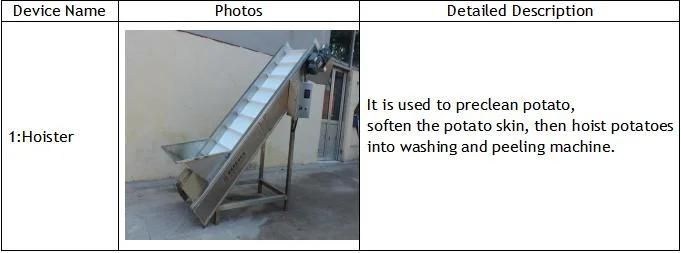

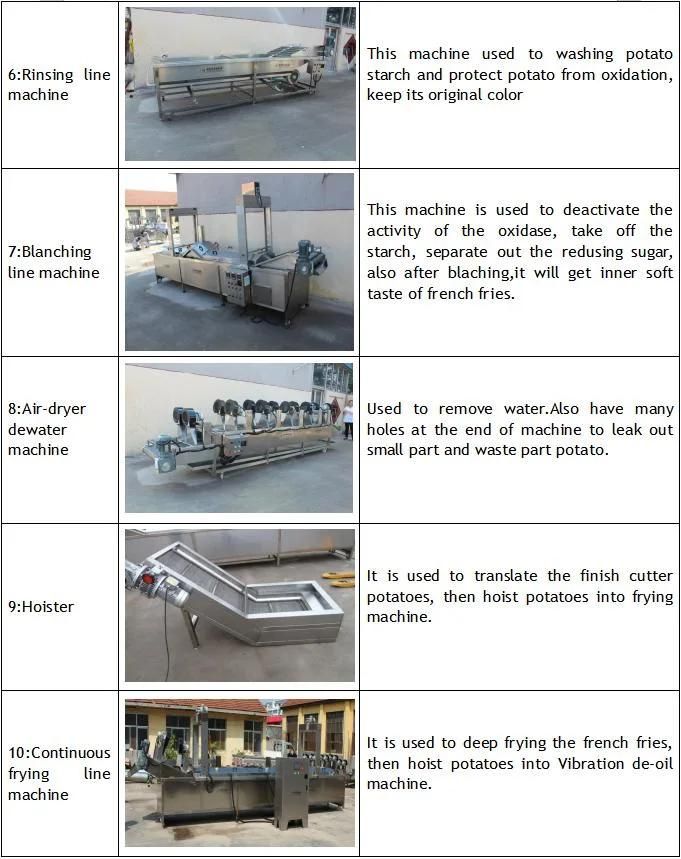

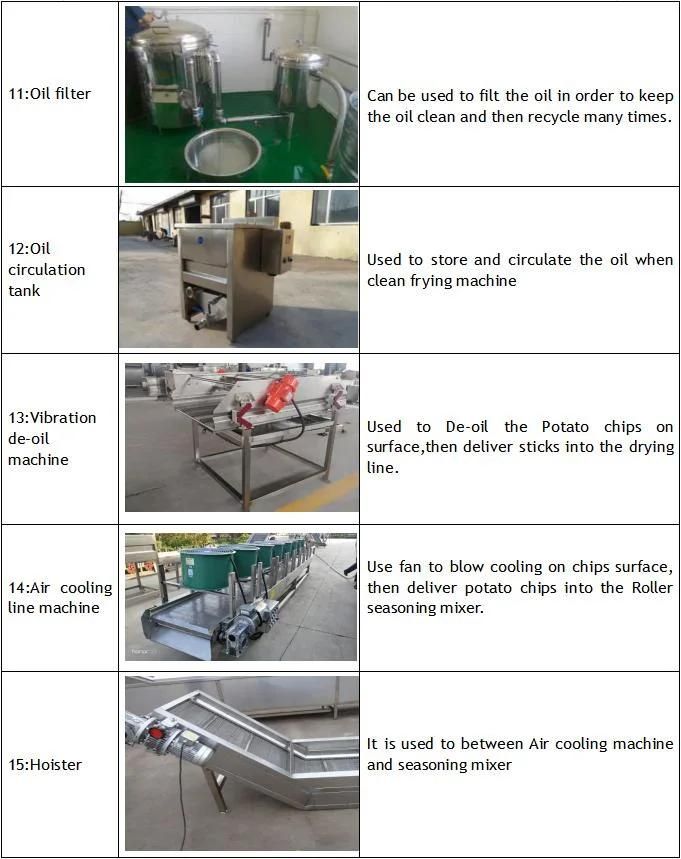

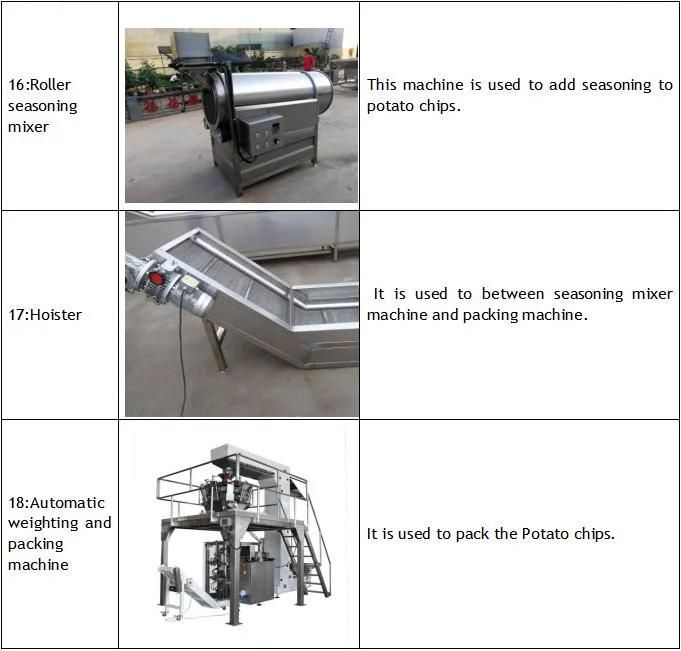

Equipment and components:

  Technical Parameters:


Equipment name	Dimensions	Electric Information
Hoister	2000x800x1600mm	0.55KW/ 380V/ 50HZ
Washing and peeling machine	3400x900x1400mm	4.7KW/ 380V/ 50HZ
Hoister	2000x800x1600mm	0.55KW/ 380V/ 50HZ
Washing and peeling machine	3400x900x1400mm	4.7KW/ 380V/ 50HZ
Inspecting table	4000x800x900mm	0.75KW/ 380V/ 50HZ
Potato cutter	950x800x950mm	1.1KW/ 380V/ 50HZ
Water bucket elevator	2200x1000x1500mm	2200*1000*1500mm
Miscellaneous machine	3000x1000x1300mm	2.2KW/ 380V/ 50HZ
Rinsing line machine	5000x1200x1300mm	6.6kw/380v/50Hz/3P
Blanching line machine	6000x1200x1400mm	120kw/380v/50Hz/3P
Vibration de-water machine	1800x1000x900mm	0.5kw/380v/50Hz/3P
Air-dryer machine	5000x1200x1400mm	11kw/380v/50Hz/3P
Hoister	1500x800x1300mm	0.75KW/ 380V/ 50HZ
Continuous frying line machine	6000x1200x2400mm	140kw/380v/50Hz/3P
Vibration de-oil machine	1500x1000x1300mm	0.5KW/ 380V/ 50HZ
Air cooling dehydrator	5000x1200x1600mm	11KW/ 380V/ 50HZ
Hoister	2000x1000x2200mm	0.75KW/ 380V/ 50HZ
IQF Tunnel Freezer	8100x3720x2900mm	88.3KW/ 380V/ 50HZ
Refrigeration Compressors Systems	4500x2500x2300mm	80KW/ 380V/ 50HZ
Automatic weighing and packing  machine	3500x3000x2800mm	4.5KW,380V/50HZ

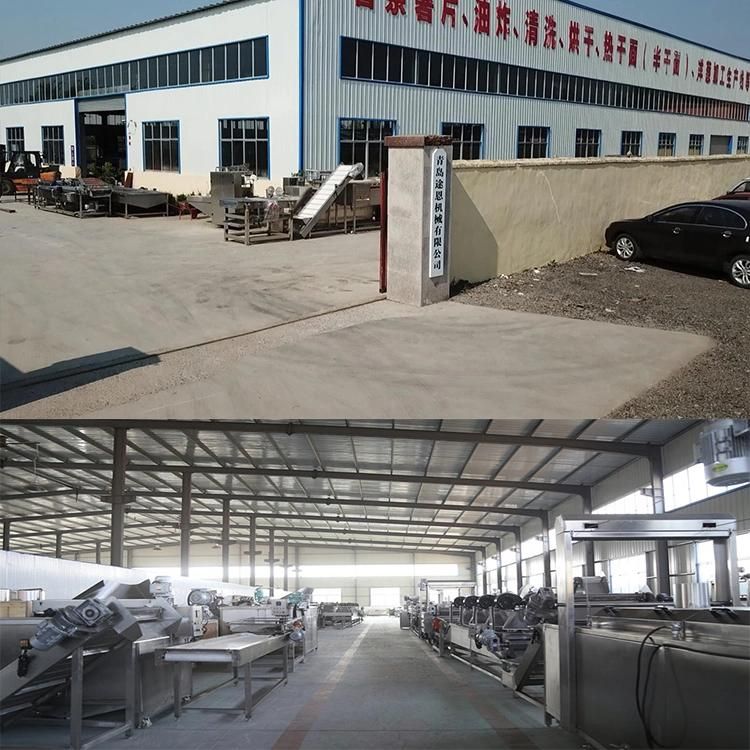

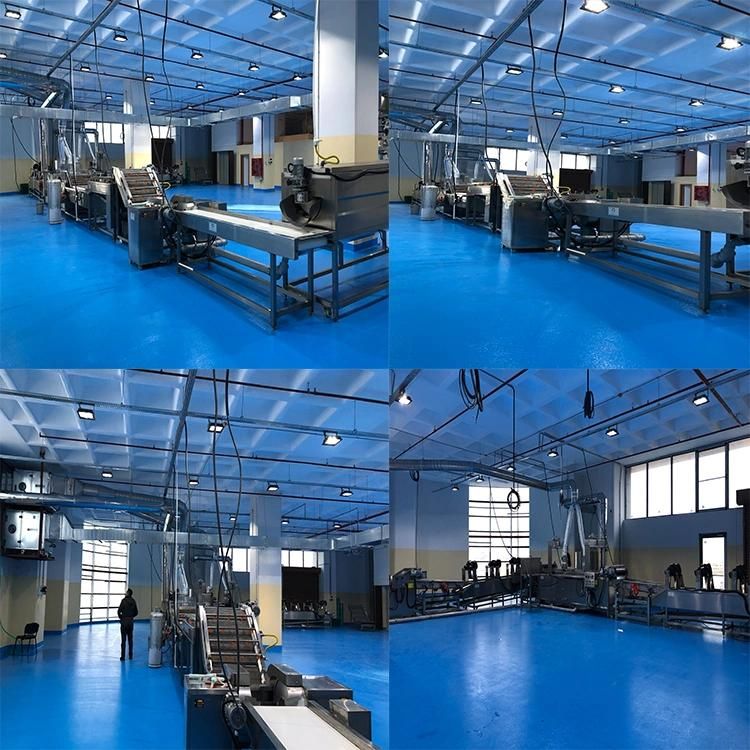

 Factory Overall:


 Installation example:



Customer Visiting:





FAQ:

Q: Are You A Factory or A Trading Company?
A: We are the manufacturer with professional produce experience on Food Machinery more than 15 years.We own both of Domestic and international sales department.We provide perfect OEM and after-sale service.

Q: How do I know about the details and quality of your machine?
A: First, we have product brochures covering all details including parameter, material, output, etc. of most of our production lines; secondly, we can provide you with videos filmed on-site with details about the working process and how mechanical parts work during operation; at last, you are warmly welcomed for on-site inspection at our factories.

Q:How do I know that the machine I ordered at your company is working well?
A:Before delivery,We will test your machine and send a test video to you.

Q:How should I do if meet some trouble while using?
A:We provide lifetime warranty service,We can send you components to you for free,we can supply English manual book and also take a video for showing how to resolve the problems or dispatch our worker to your factory.

We are looking forward to receive your good news, pls feel free to contact us ~~
