• Model NO.：KQ Series
• Name：Sanitary Stainless Steel Cooling Tank for Milk Fac
• Material：Stainless Steel 304 , 316
• Insulation Wall：Polyurethane Foam : 50mm
• Motor Brand：Siemens ,ABB
• Refrigerant：R404A , R22
• Compressor：USA Copeland
• Fresh Bulk Milk Cooling and Storage：300litres to 10000litres
• Outside Shape：Vertical and Horinzontal
• Milk Pump：Provide

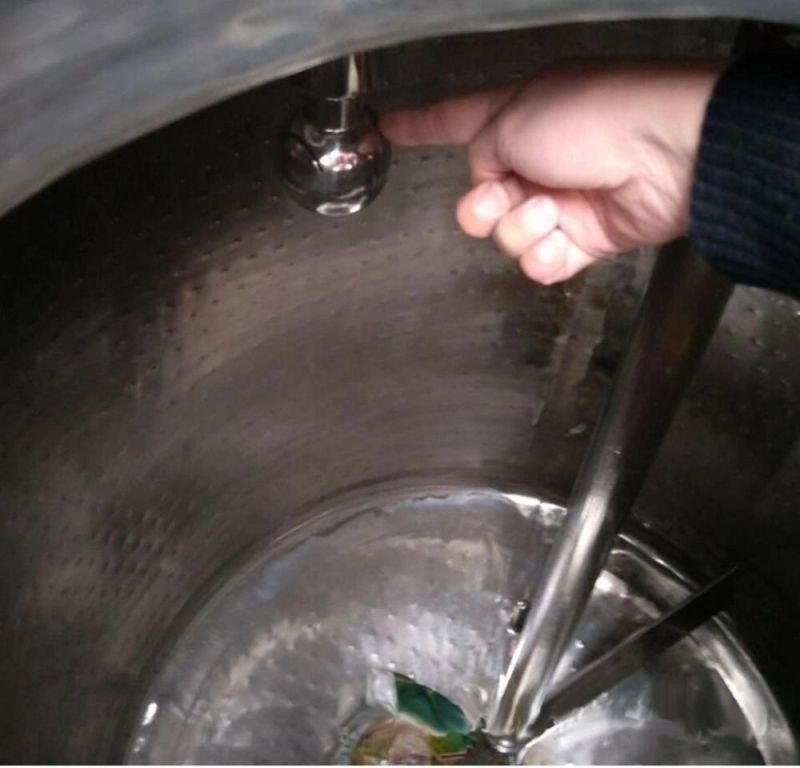

• CIP Cleaning Ball：Included
• Mixer Agitator：Including
• Working Life：More Than 10 Years
• Delivery：15 Days After Get Your Reply .
• Outlet：with Butterfly Vave
• After Sales Service：Yes
• Transport Package：Standard
• Specification：ISO
• Trademark：KQ
• Origin：China
• HS Code：8479820090
• Production Capacity：1000

TypeKQ-0.5T
Vertical typeKQ-1T
Vertical typeKQ-2T
Laying typeKQ-3T
Laying typeKQ-5T
 Laying typeKQ-6T
 Laying typeKQ-8T
 Laying typeKQ-10T
 Laying typeCapacity(L)50010002000300050006000800010000LRefrigerating Output(W)90009000150002200037000380005500074000Refrigerating  Fluid(R)R22R22R22R22R22R22R22R22Insulating Property≤1ºC/4h≤1ºC/4h≤1ºC/4h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/5h≤1ºC/6hAgitator Speed36r/min36r/min36r/min36r/min36r/min36r/min36r/min36r/minPower (Kw)3.83.85.97.510.5111319.2Voltage220V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phases380V/50Hz,3phasesDimension(mm)1800*1200*15001800*1200*15003400*1550*17503600*1700*19003900*2050*21504500*2050*21506300*2050*22508000*2100*2400Weight(Approximately)0.6T0.6T 0.75T0.9T1.1T1.3T1.8T2.05TUnit Price: FOB SHANGHAIUSDUSDUSD USD USDUSD USDUSD
1000L 2000L 3000L 4000L Stainless Steel Milk Cooling Tank Factory .
producing milk cooling tanks, collection centres, tubular coolers, milking machine components, pasteurisers, ice water
Adopting internationally-advanced technology of the 1900's it cools by circular and vertical wall. The fully automatic control system makes whole process of observation available. The cooled raw milk can reach rapidly needed temperature of 4~5 and keeps constant, which can prevent the generation of bacteria and make raw milk as Agrade cream.
The adopted imported compressor features high performance, energy saving, full seal and protection system that prevents damage due to overload. Also fitted are high / low liquid level control system and automatic cyclespray and agitating device

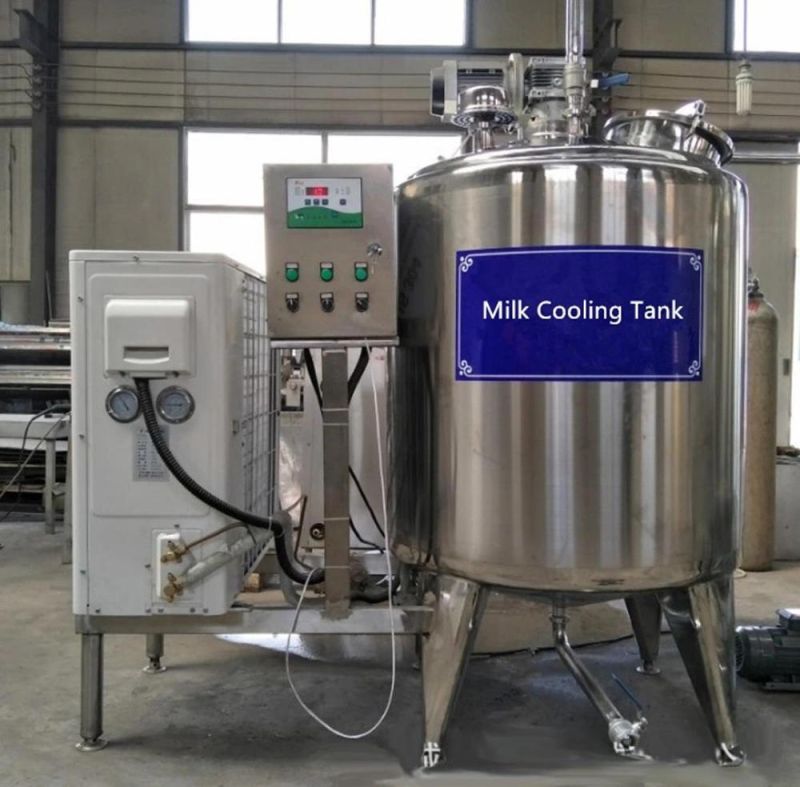

Sanitary Stainless Steel Cooling Tank For Milk Factory .
