• Model NO.：A3
• LED：0.1
• Camera：Japan
• Ejector：Matiris
• Output(T/H)：2.5-6.5
• Voltage(V)：220V 50Hz
• Power(Kw)：2.2
• Weight (Kg)：800
• Dimension(L*W*H)：1425*1590*1840
• Channels：192
• Transport Package：Wooden
• Specification：international standard
• Trademark：pinyang
• Origin：China
• HS Code：84378000
• Production Capacity：1000PCS,Year

Basic Info.

Model NO. A3 LED 0.1 Camera Japan Ejector Matiris Output(T/H) 2.5-6.5 Voltage(V) 220V 50Hz Power(Kw) 2.2 Weight (Kg) 800 Dimension(L*W*H) 1425*1590*1840 Channels 192 Transport Package Wooden Specification international standard Trademark pinyang Origin China HS Code 84378000 Production Capacity 1000PCS/Year

Product Description

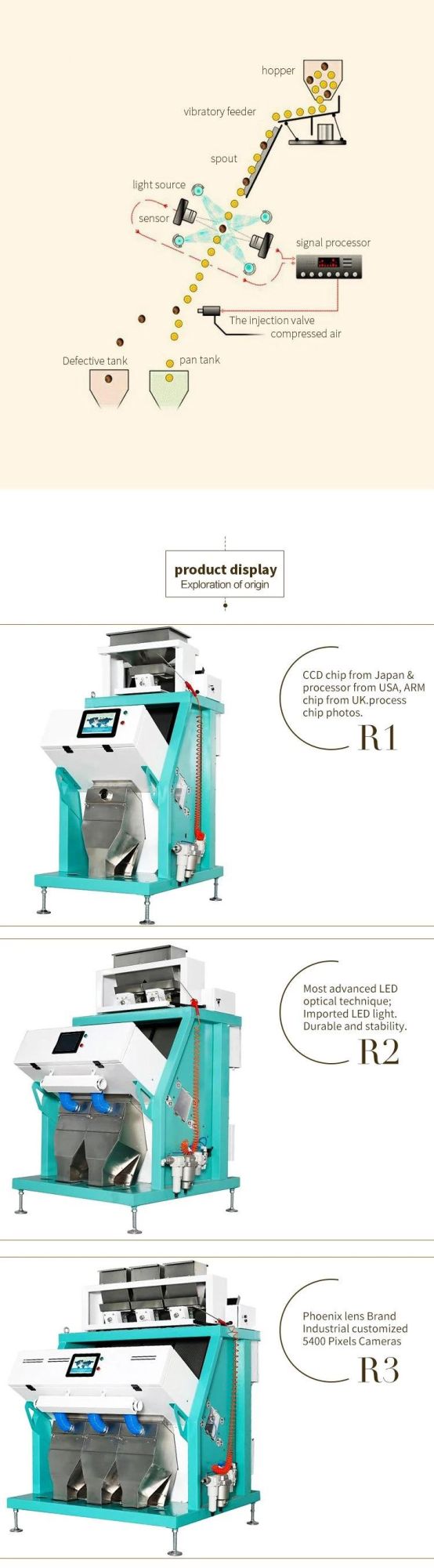

The high speed DSP techonlogy provides the sorter with fast detection and high identification rate.

High speed air valve is used to ensure quick penponse,low power consumption and long service life.

Failure alarm automatic and modular construction makes easy repair.

adopting 2048 pixel high-speed ccd camera and photo processing technology can process photo parameters ever faster .


Specifications


Model	A3	A4	A5	A6	A7	A8	A10
Channels	192	256	320	384	448	512	640
Output(T/H)	2.5-6.5	3.0-8.5	4.5-8	5-10T	5.5-17.5T	6.5-20T	8.0-25T
Accuracy	>99.98%	>99.98%	>99.98%	>99.98%	>99.98%	>99.98%	>99.98%
Waste	<1:0.125	<1:0.125	<1:0.125	<1:0.125	<1:0.125	<1:0.125	<1:0.125
Voltage(V)	220V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz	220V 50Hz
Power(KW)	2.2	2.5	2.8	3.1	3.4	4	4.5
Pressure(MPa)	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6
Consumption(L/min)	1000-2500	1500-2800	1600-3500	1800-3800	2000-4200	2200-4500	2500-5200
Dimension(L*W*H)	1425*1590*1840	1725*1590*1840	2025*1590*1840	2325*1590*1840	2625*1590*1840	2925*1590*1840	3525*1590*1840
