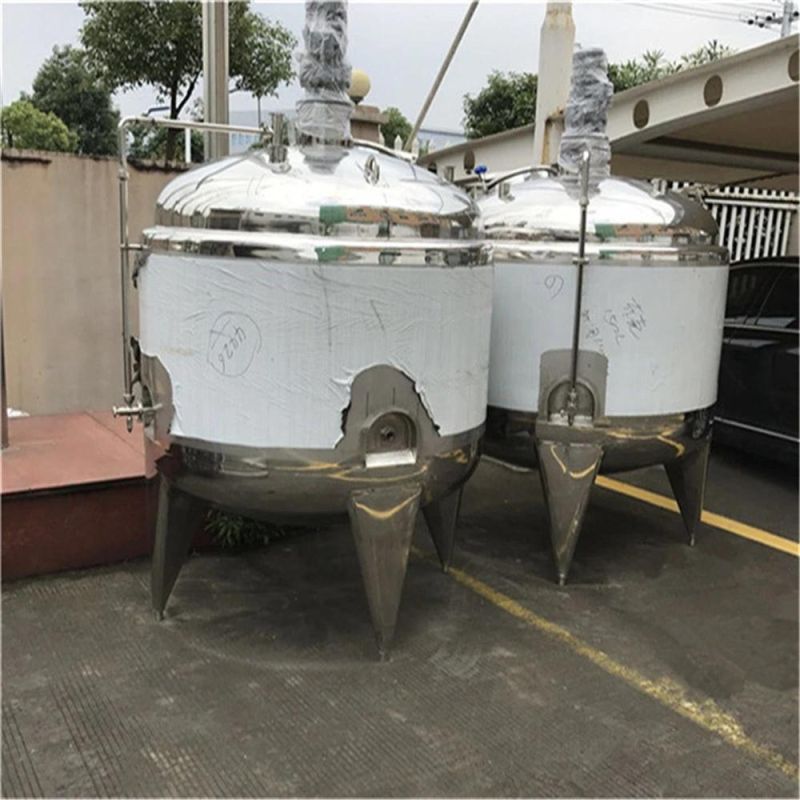

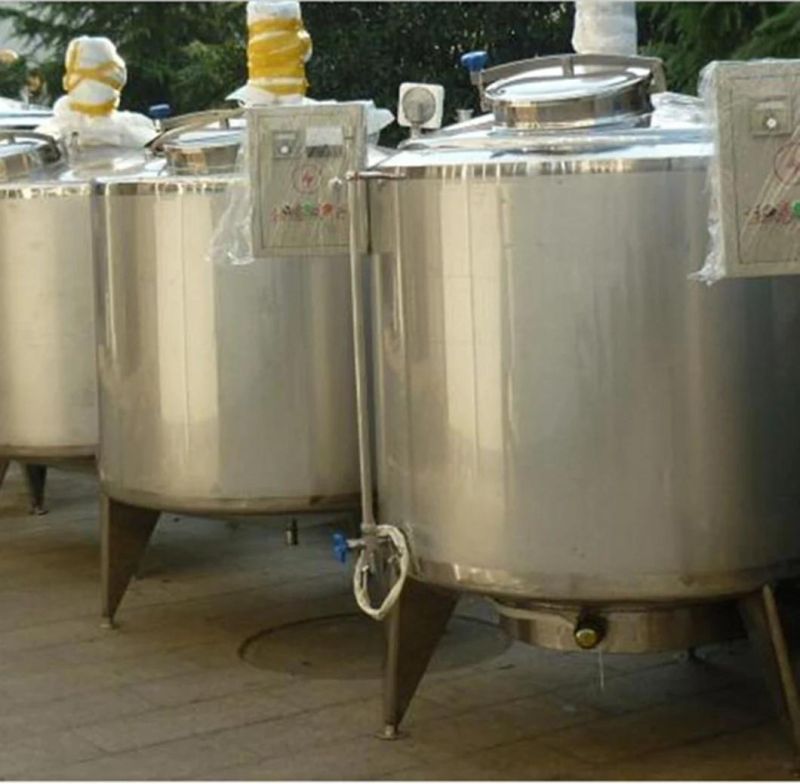

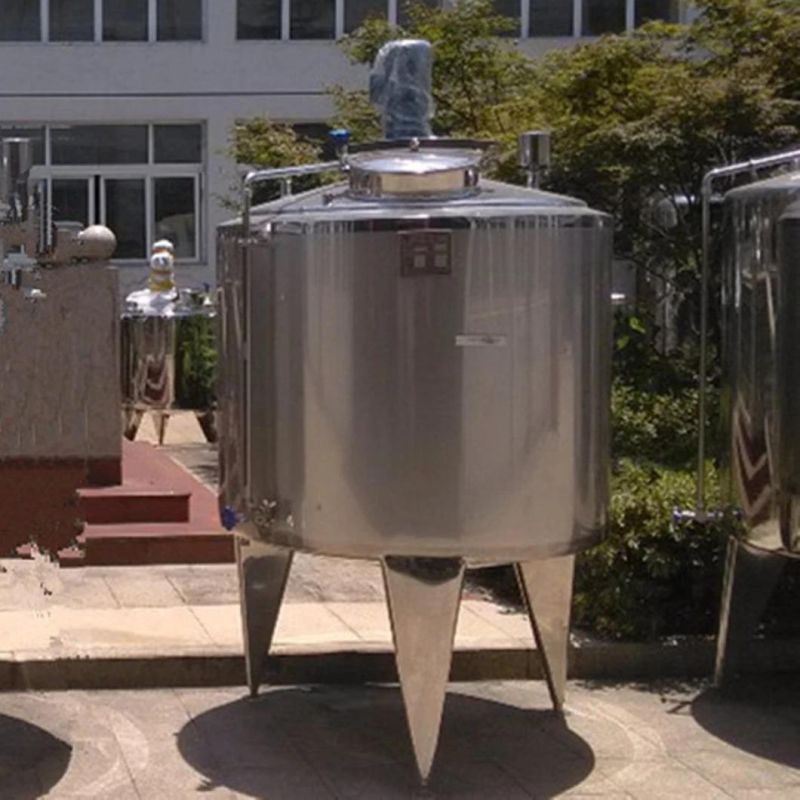

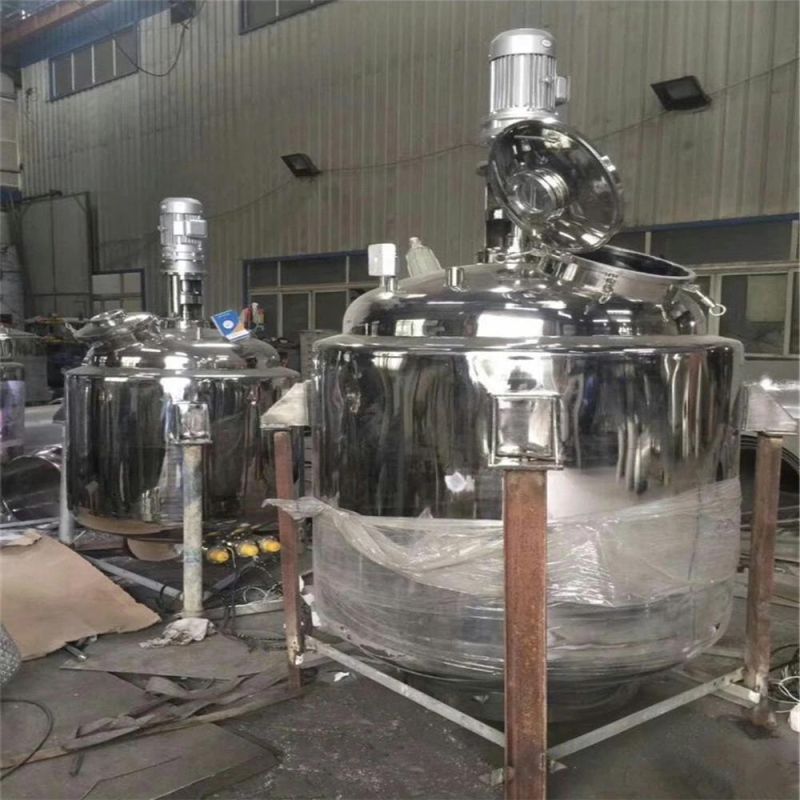

Self Design Stainless Steel Electric Steam Jacketed H Heating Mixing Vat Supplier
Shanghai Kaiquan Machine Valve Co., Ltd.- Name Description：Self Design Stainless Steel Electric Steam Jackete
- Tank Capacity：100L-30000L
- Mixing Tank Application：Liquid and Powder, Liquid and Liquid
- Material：Stainless Steel 304 or SS316
- Tank Shape Customized：Customized
- Tank Type：Single Wall Tank, Jacket Wall, Three Walls
Base Info
- Model NO.：KQ Series
- Warranty：One Year
- Mixer Shape：Customized
- Tank Inside and Outside：Mirror Polished, Sub-Light and Frosted, Customized
- Mixer Speed：36rpm, 60rpm, 960rpm, 2900rpm
- Certificate：ISO
- MOQ：1set
- Pressure：Low Pressure
- OEM：1set
- Spare Parts：Available
- Transport Package：Wood Box
- Specification：CUSTOMIZED
- Trademark：KQ
- Origin：Shanghai, China
- HS Code：8479820090
- Production Capacity：1000units,Month
Description
Common rotation speed 35,43,60 ; stepless speed reducer or dual-speed reducer are also available600 920*1000 2850 60 38 0.55 700 990*1000 2850 60 38 0.55 800 950*1220 3000 60 38 0.55 900 1010*1220 3000 60 38 0.55 1000 1060*1220 3150 60 51 0.75 1500 1160*1500 3350 60 51 0.75 2000 1340*1500 3410 60 51 1.1 3000 1410*2000 4000 60 51 1.5 4000 1620*2000 4250 60 51 1.5 5000 1810*2000 4300 60 51 2.2 6000 1980*2000 4550 60 51 2.2 7000 1930*2440 5000 60 51 2.2 8000 2060*2440 5000 60 51 3 9000 2180*2440 5050 60 51 3 10000 2300*2440 5050 60 51 3 12000 2270*3000 5600 60 51 4 15000 2530*3000 5700 60 51 4 20000 2640*3660 6400 60 51 5.5
Working princicle
The materials are heated and mixed in water pot and oil pot to be fully reacted. Sucked into emulsifying pot by vacuum pump, the materials are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring material from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, folded. Then, the materials are sent to the cut-off mixing unit where they are again cut off, broken and stirred by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200mm-2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material
Configuration
1) Manhole
2) CIP cleaner
3) Adjustable triangle bracket
4) Ladder
5) Thermometer
6) Liquid lever meter and controller
7) Eddy-proof board
8) Dismountable Inlet assembly
9) Sanitary breathing cover
Self Design Stainless Steel Electric Steam Jacketed H Heating Mixing Vat Supplier
Working princicle
The materials are heated and mixed in water pot and oil pot to be fully reacted. Sucked into emulsifying pot by vacuum pump, the materials are stirred by both the center blade and side scraper, which works on the inner surface of pot keeping stirring material from being stuck onto the wall. In the process of blade-stirring, the materials are continuously crushed, pressed, folded. Then, the materials are sent to the cut-off mixing unit where they are again cut off, broken and stirred by the strong interaction between running cutting wheel and cutting sheath. The materials are finally crushed into small pellets of 200mm-2um. Besides, because of the vacuum in emulsifying pot, the bubbles generated during stirring and mixing process are sucked out from material
Configuration
1) Manhole
2) CIP cleaner
3) Adjustable triangle bracket
4) Ladder
5) Thermometer
6) Liquid lever meter and controller
7) Eddy-proof board
8) Dismountable Inlet assembly
9) Sanitary breathing cover
