• Model NO.：NC
• Power：4.3~13 Kw
• Filling Principle：Pressure
• Filling Accuracy：±1%
• Warranty：1 Year
• Certificate：CE,SGS,TUV
• Structure：Linear
• Control：PLC
• Material：Stainless Steel 304,316
• Transport Package：Wooden Packing
• Trademark：NC
• Origin：China
• HS Code：8422303090
• Production Capacity：10sets,Year

Basic Info.

Model NO. NC Power 4.3~13 Kw Filling Principle Pressure Filling Accuracy ±1% Warranty 1 Year Certificate CE,SGS,TUV Structure Linear Control PLC Material Stainless Steel 304/316 Transport Package Wooden Packing Trademark NC Origin China HS Code 8422303090 Production Capacity 10sets/Year

Product Description

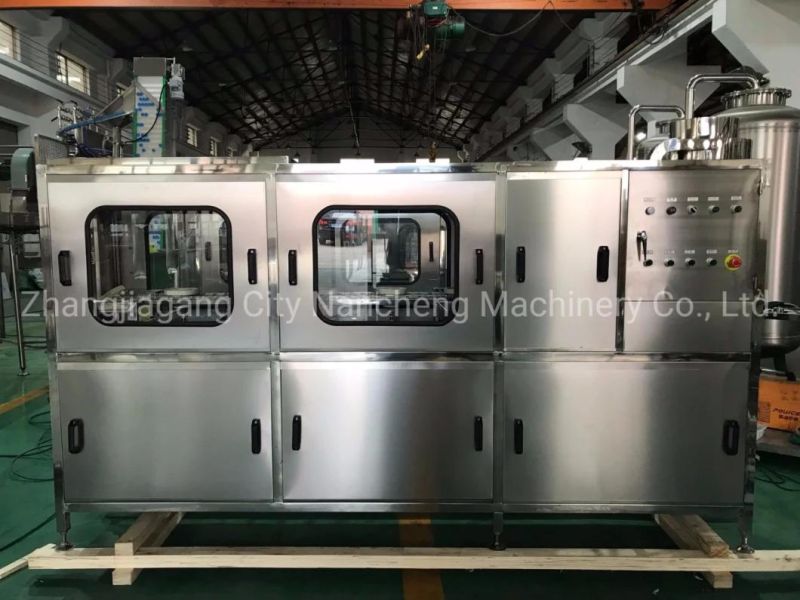

5gallon Bottle Water Barrel Filling Machine

This 5gallon Bottle Water Barrel Filling Machine specially for 3-5gallons barreled drink water,  It intergrates bottle washing, filling and capping into one unit, In order to achieve the purpose of washing and sterilizing, The washing machine use multi-washing liquid spray and-thimerosal spray, This thimerosal can be used circularly, The capping machine can cap barrel automatically, this line equips with water spraying device in order to ensure those caps sterilizer and clean. It also can automatically carry out barrel, washing, sterilizing, filling, capping, counting and products discharging, with complete function, modern design and high degree of automation, it is a new kind of barreeled water auto-production line, which intergrates mechanism, electricity and pneumatics technologies together.
Fucntion:
1. It is specially used for filling 1 gallon to 5 gallon) bottled water.
2. It is a good machine line for the all shapes of bottles.
3. The machine is designed for bottles such as PVC. PE. PET etc. It can be used for different shapes of bottles.
4. The machine line with stainless steel rinse nozzles, pressure filling valve, screw capper, hot steam film shrinkage machine top quality line.
5. Filling time is controlled by the PLC.
6. The machine adopts high quality stainless steel frame(No. Z304).
7. The machine design appreance is beautiful, easy operation, maintainence and working stable.
Flow chart: (5gallon water filling machine)
Washing filling capping -leakage checker- automatic external brusher-automatic internal brusher-automatic decapper

Our water filling machine is designed for the low/middle capacity and small factory. It features low water and low electricity consumption, small space occupation as well as easy operation. At the same time It improves the sanitary conditions and simplifies the maintenance compared with the last generation water filling machine. it can perfectly complete the function of automatic washing, filling and capping, which has been aproved by our clients as technical matured and quality product.

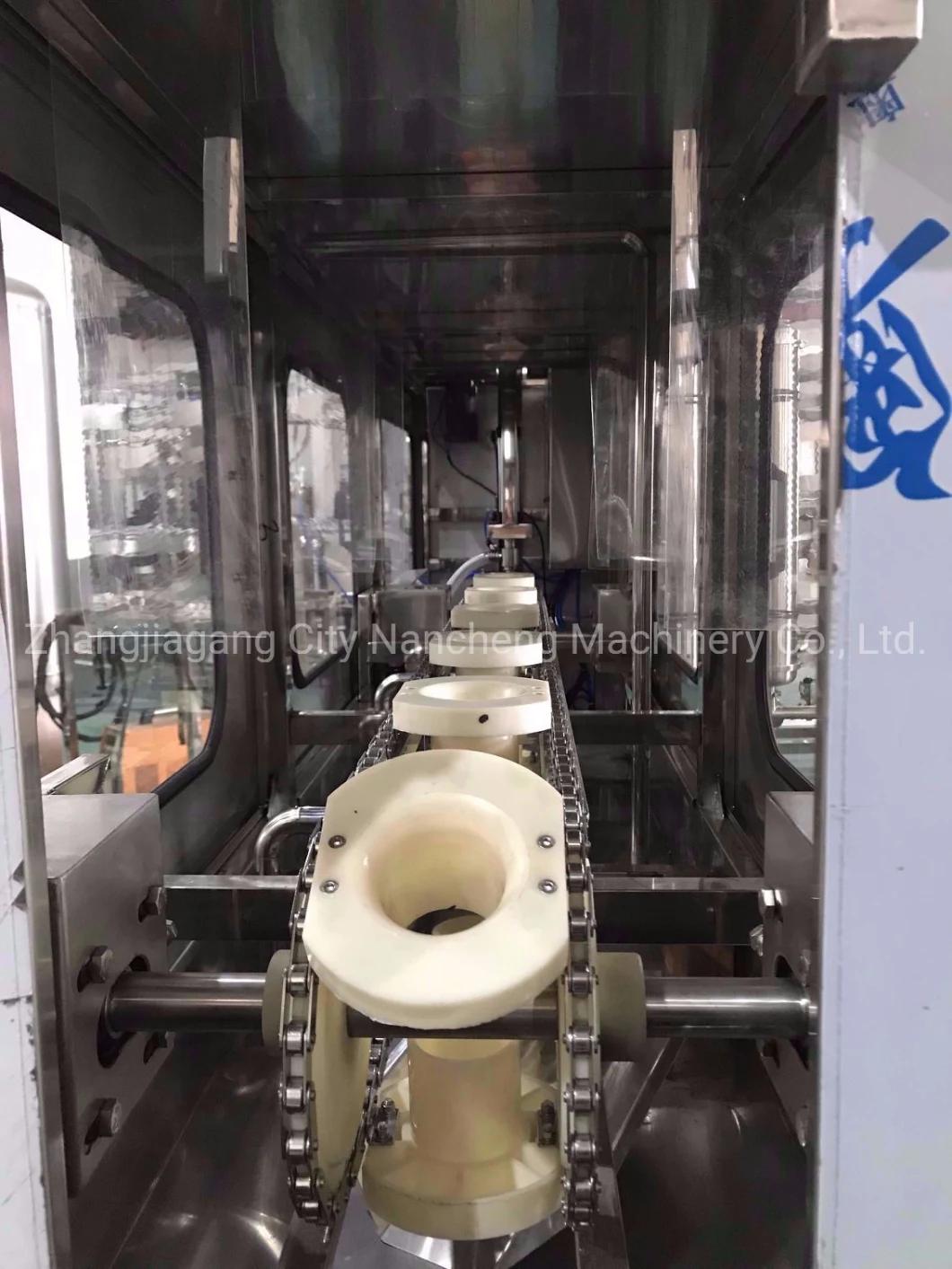

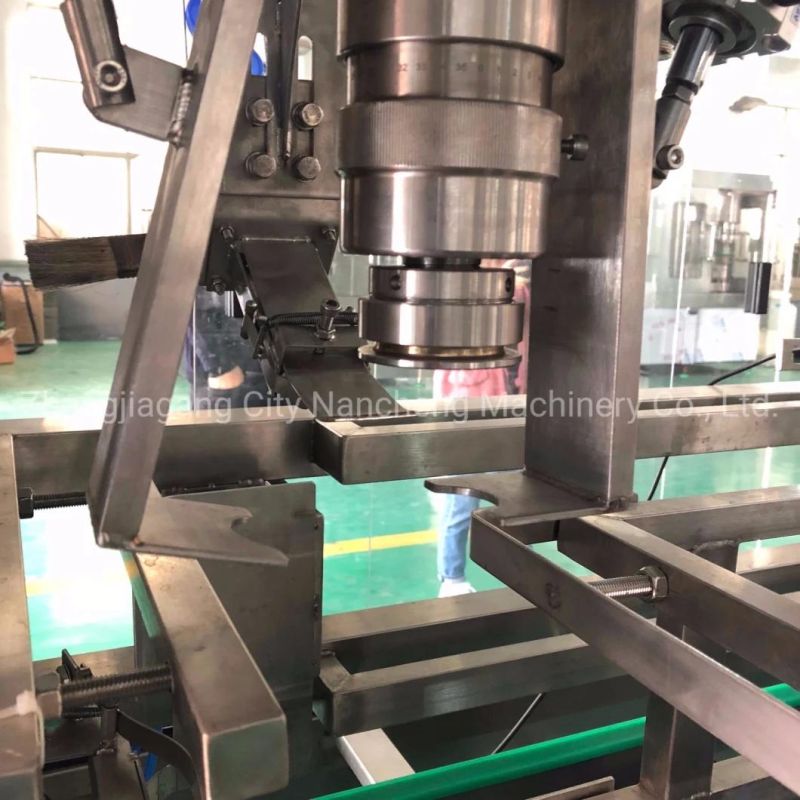

Detail shows








Characteristic:
1.intelligent contact screen, human design, easy operation.

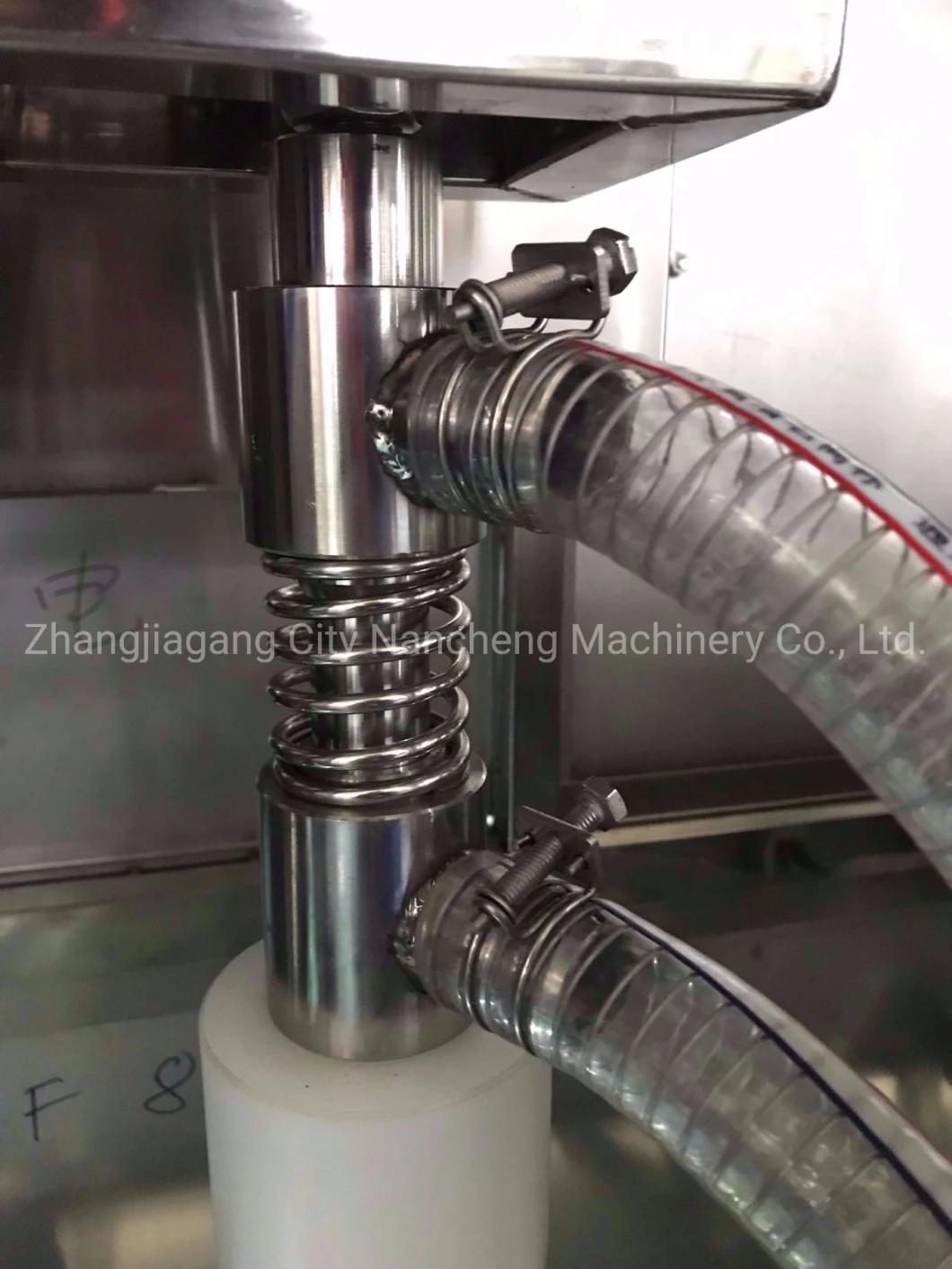

2.High speed filling valve, avoiding drop leaking, accurate filling quantity.
3.Program logic controller(PLC), easy for changing size or modifying parameters.
4.Pneumatic elements are all famous brand, stability and reliability.
5.Photo-electric sensing and pneumatic linking control, automatic protection for shortage of bottle.
8.Pneumatic executive control valve, high efficiency and safety.
9.Close positioning design, easy governing, suitable for packing of all sizes of bottles.
10. machine is designed according to requirements of buyer's.



Model	NC-150	NC-300	NC-450	NC-600	NC-900	NC-1200
Filling heads	1	2	3	4	6	8
Volume	18.9	18.9	18.9	18.9	18.9	18.9
barrel size(mm)	270x490	270x490	270x490	270x490	270x490	270x490
Capacity(b/n)	100	300	450	600	900	1200
Gas pressure for air sonrce(Mpa)	0.4-0.6	0.4-0.6	0.4-0.6	0.6	0.6	0.6
Gas consumption(m3/min)	0.37	0.6	0.8	1	1.5	1.8
Motor power(kw)	1.38	3.8	3.8	7.5	9.75	13.5
Rated Voltage(V)	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Weight(kg)	680	1500	2100	3000	3500	4500

Factory Introduction

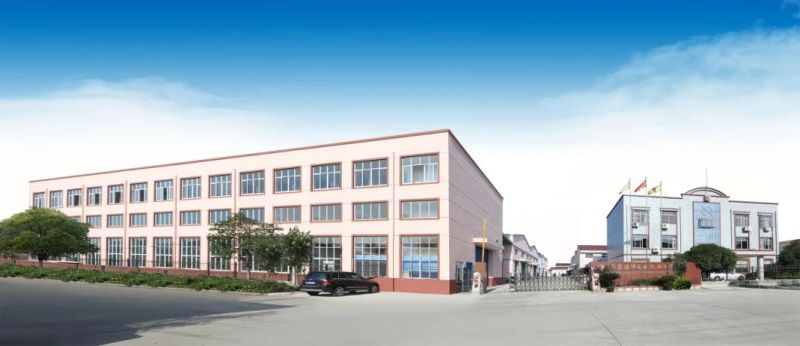

Zhangjiagang City Nancheng Machinery Co.,Ltd is the professional manufacturer of beverage machines in China. The factory plant is located in Zhangjiagang City of Jiangsu Province, about 110km from Shanghai and 50km from Wuxi.

Our main products covers: bottle water production line/ juice drink production line/ carbonated drink production line/ 5 gallon barrled water production line and auxiliary equipment for thers lines.

15 years of experience in the industry insu prores first class quality of our products. A good reputation of service bought us customers from dozens foreign countries.

Looking forward to establishing a great business relationship you.
