Plastic Egg Container Foring Machine (model-500)

Wenzhou Mingdu Machinery Co., Ltd.
  • Certification：ISO9001
  • Power Source：Servo Motor
  • Process：Thermal Processing
  • Automatic Grade：Automatic
  • Application：Plastic Packing
  • Customized：Customized

Base Info

  • Model NO.：model-500
  • Maximum Width：520mm
  • Maximum Depth：60mm
  • Depth of Sheet Material：PS,PVC: 0.10mm-0.80mm Pet: 0.10mm-0.60mm
  • Production Rate：15-30die,Min
  • Transport Package：Wooden Packaging
  • Specification：size: 500mm*350mm
  • Trademark：Mingdu
  • Origin：China
  • HS Code：8477409000
  • Production Capacity：5sets,Month

Description

Basic Info.

Model NO. model-500 Maximum Width 520mm Maximum Depth 60mm Depth of Sheet Material PS/PVC: 0.10mm-0.80mm Pet: 0.10mm-0.60mm Production Rate 15-30die/Min Transport Package Wooden Packaging Specification size: 500mm*350mm Trademark Mingdu Origin China HS Code 8477409000 Production Capacity 5sets/Month

Product Description

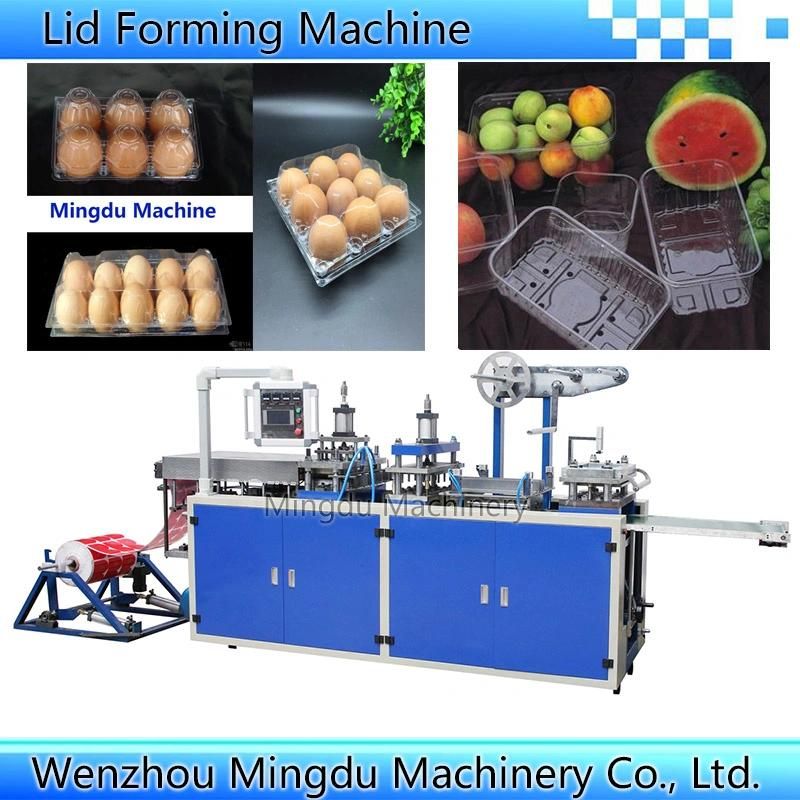

Plastic Egg Container Forming Machine (Model-500)

Plastic Egg Container Foring Machine (model-500)

Model-500 thermoforming machine is a new type of machine developed by our company according to the market and customer's demand. The machine is a kind of multi-station automatic machine, which has the synchronous complete forming, punching, and cutting, so easy to get the end plastic products. Therefore, the input of labor and the cost of production is greatly reduced, and the work efficiency is much more improved. It can be applied to metal, food, medicine, cosmetics and other PS/PET/PVC plastic products.
ModelMODEL-500
Suitable SheetPVC, PS, PET
Largest Forming Area500mm*350mm
Maximum Width520mm
Maximum Depth60mm
Power20Kw
Air Pressure0.6-0.8Mpa
Production rate15-30die/min
Depth of Sheet MaterialPS/PVC: 0.10mm-0.80mm
PET: 0.10mm-0.60mm
Weight1800Kgs
Overall Dimension2800mm*1100mm*1900mm(L*W*H)

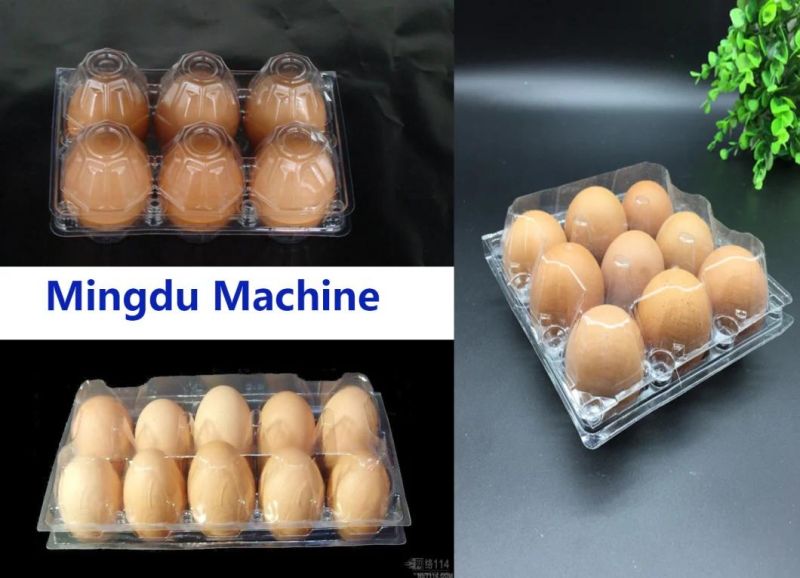

Sample:

Plastic Egg Container Foring Machine (model-500)
Our service:
1. warranty: 12months. if the spare part is broken in the warranty period, we will send a free replacement part as free.
2. Installation and training: we can send engineer to install and run the machine, but all the charges should be paid by buyer, as visa, two-way tickets, meals and accommodation, etc.
3. Quotation: valid for 30days.


Plastic Egg Container Foring Machine (model-500)

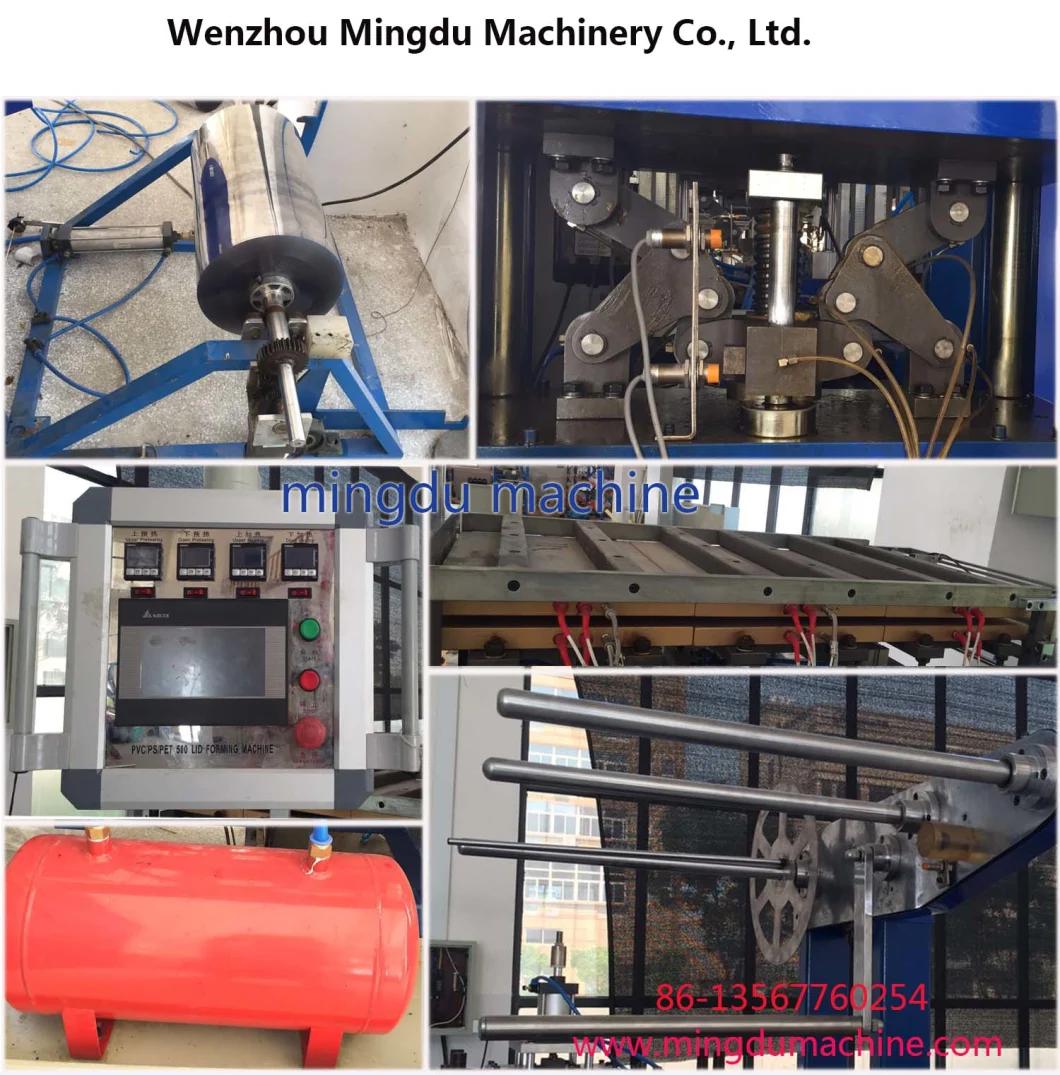

Specialist:
Compact structure, stable operation, simple operation, convenient maintenance;
Servo adjustment, interface touching screen;
Adjustable moving-trip, mould replacement is simple;
According to user requirements design mold;

Shipment:

Plastic Egg Container Foring Machine (model-500)


Contact: Miss Pearl
Mob.: +86-135 6776 0254
