• Model NO.：VBC
• Capacity：300kg,Hr
• Heating Area：2.45m2
• Steam Requirement：0.5-0.7MPa ,About100kg,Hr
• Power：12kw
• Transport Package：Wooden Case
• Specification：CE, ISO9001: 2000
• Trademark：tgmachine
• Origin：Shanghai

Basic Info.

Model NO. VBC Capacity 300kg/Hr Heating Area 2.45m2 Steam Requirement 0.5-0.7MPa ,About100kg/Hr Power 12kw Transport Package Wooden Case Specification CE, ISO9001: 2000 Trademark tgmachine Origin Shanghai

Product Description

Introduction:

The vertical white pulling machine is used for pulling syrup cooked in high and low temperature, it meets with the requirements requested by candy industry. This unit can not only be used for syrup white pulling of higher requested in structure and quality, but also the pulling time and pulling arm speed are adjustable accordingly.

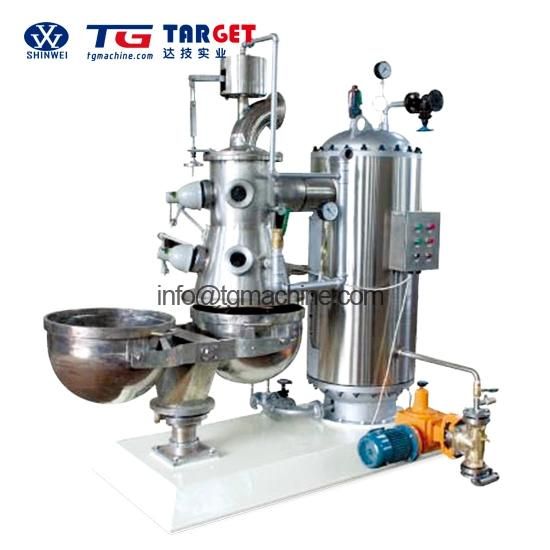

This machine is able to cook syrup continuously with automatic temperature control. The micro film cooker's feature is large capacity, fast processing, accurate control of cooking temperature and high vacuum. Rapid cooking and vacuum to produce high quality and quite transparent syrup, which is suitable for cooking hard boiled candy, fruit hard candy, crystal candy and hard toffee. It is capable of working with depositing line or forming production line.

This cooker is comprised of an insulated steel steam pressure vessel, one variable speed product dosing pump, a syrup heating coil, s steam extraction chamber and two receiving vessels,all of which are mounted on a common base plate.The special designed continuously vacuum cooker can guarantee the quality of the condensed syrup with stably running,sanitary and humanization designing, and easy to operate and maintain

Technical Parameters:

capacity	300kg/hr
Heating area	2.45m2
Steam requirement	0.5-0.7Mpa ,about100kg/hr
Temperature of the syrup before cooking	110-115°C
Temperatureof the syrup after cooking	135-145°C
Dimension	1900×1700×2300(mm)
power	Dosing pump 0.75kw vacuum pump 5.5kw
weight	800kg


After-sale services for all the customers
a. Free training of machine installation, operation and maintenance will be provided;
b. Some spare parts will be sent together with the machine for free and some spare parts are always at favorable price for regular customers;
c.Technical support will be offered by call, email or video etc;
d.If necessary, our engineer will go to your factory for machine installation, adjustment or maintenance.
