• Model NO.：TSZD-40
• Material：304 Stainless Steel or According to Customer Requi
• Power：94kw
• Heating Method：Electric Heating
• Time：1-10min
• Transport Package：According to Customer Requirement
• Specification：4000*1480*1835mm
• Trademark：TS
• Origin：China
• HS Code：8438600000
• Production Capacity：200pieces,Year

Basic Info.

Model NO. TSZD-40 Material 304 Stainless Steel or According to Customer Requi Power 94kw Heating Method Electric Heating Time 1-10min Transport Package According to Customer Requirement Specification 4000*1480*1835mm Trademark TS Origin China HS Code 8438600000 Production Capacity 200pieces/Year

Product Description

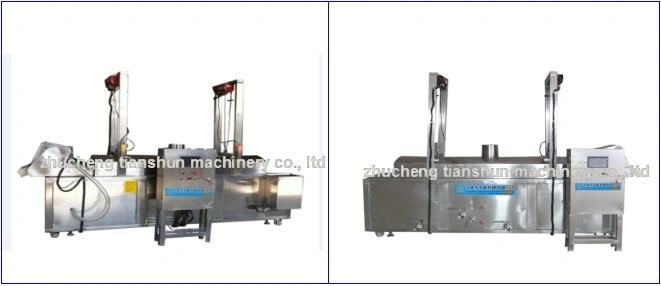

1.-Potato Chips Cooking Machine
Potato Chips Cooking Machine

Potato Chips Making Machine

1)Process

Washing- washing peeling--picking line--cutter-washing-blanching-vibrating dewater-drying line-frying-vibrating deoil-cooling-seasoning line ( freezer for French fries) -packing line

2)Output capacity

Automatic line: 100kgh, 200kgh and 300kgh

Semi-automatic line: 50kgh

3. Main Process

Washing peeling: choose brush washing peeling

Chips: it is about1.5- 2mm; size and thickness is in uniform, surface is smooth

Washing process: with amino acid and the produce the black and brown color

Blanching process:

Washing process is for washing off the potato starch on the potato chips which can keep it from fall in the oil and keep long-use life for the frying machine.

 Frying process

The frying time is 2-5minutes at the frying temperature is 170-180 ºCfor potato chips;

Frying temperature is about 180-190 °C

2.-Potato Chips Cooking Machine Applications
Potato Chips Cooking Machine  widely use for peanut, green beans, peanuts, pineapple, dried bean curd, bean curd, bean curd, fritters, twist, rice noodles, pancake fruit, spring rolls, curry angle, eggplant, potato chips, banana slices, Slices, shrimp slices, onion rings, squid circles and so on.

3.-Technical parameters

Size	4000*1480*1835mm
Oil Capacity	600L
Total power	94KW
Frying Time	1-10min
Temperature	0-300ºC
Oil Tank	1pcs
Oil Filter	1pcs
Material	304 stainless steel

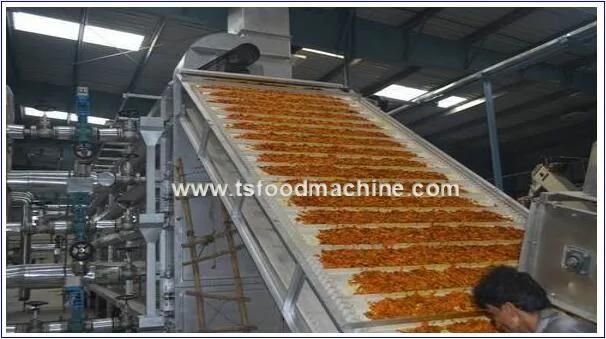

4.-Processing production line

5.-Company and Workshop
    Zhucheng Tianshun machinery co., Ltd. is one of the modern food machinery and equipment manufacture, integrated with research and development, production and sales.Machinery and equipment are widely used in fried, conditioning food, surimi products, vegetables, fruits, aquatic products, canned food, meat, soy products, snack food, central kitchen planning and herbal processing and other fields.Food processing equipment includes frying equipment, cleaning equipment, cooking and blanching equipment, cutting equipment, pasteurization, air-dry equipment, drying equipment, package equipment etc.

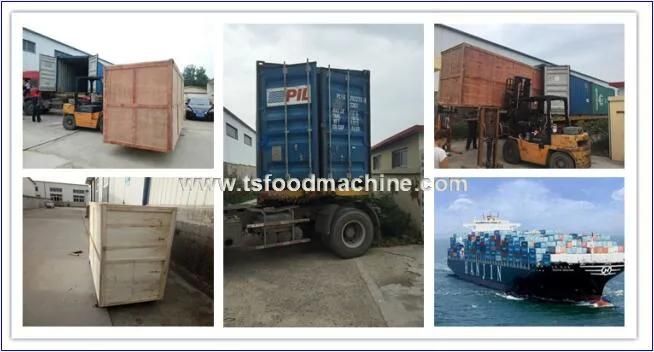

6.-Packaging and transportation
